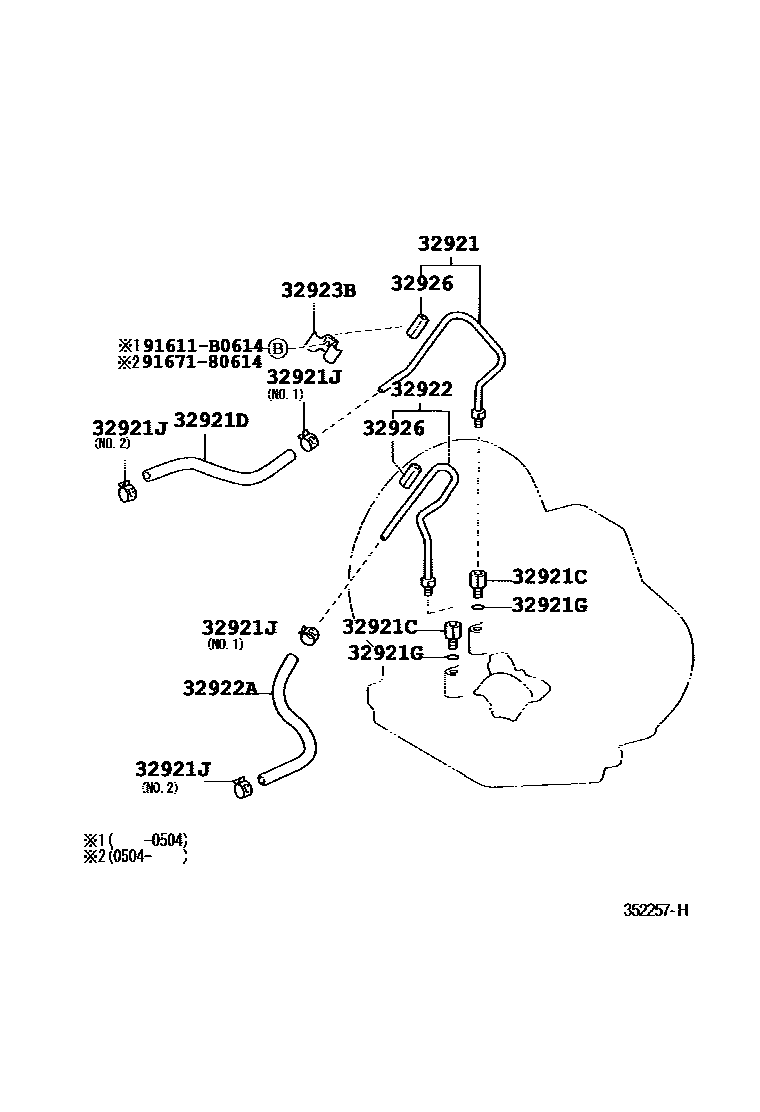

OIL COOLER & TUBE (ATM)

0001 1U441E 0002 1U340E,U340F

32921TUBE, OIL COOLER INLET, NO.1

main32921-52020iNNP10200407-200504

main32921-52040iNNP11200407-200504

main32921-52060iNNP11,15200504-200706

main32921-52100iNNP10200504-200706

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iNNP10; NNP11,15200706

main90407-14003iNNP11,15200407-200706

32921DHOSE(FOR OIL COOLER INLET)

main90445-15042iNNP10200504-200706

main90445-15046iNNP11,15200706

main90445-15054iNNP10200407-200504

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iNNP1#200407-200706

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×2iNNP1#200407-200610

main96137-41501×2iNNP1#200610-200706

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-52020iNNP10200407-200504

main32922-52040iNNP11200407-200504

main32922-52060iNNP11,15200706

main32922-52090iNNP10200706

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15015iNNP10200504-200706

main90445-15034iNNP10200407-200504

main90445-15044iNNP11,15200407-200706

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main90462-10127iNNP10200504-200706

main90462-12085iNNP10200407-200504

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iNNP11,15200407-200706

main32926-22010iNNP11,15200706

main32926-30011×2iNNP10200706

91611B0614

main91611-B0614

9167180614

main91671-80614

11 parts on this diagram · 2 diagrams in section
