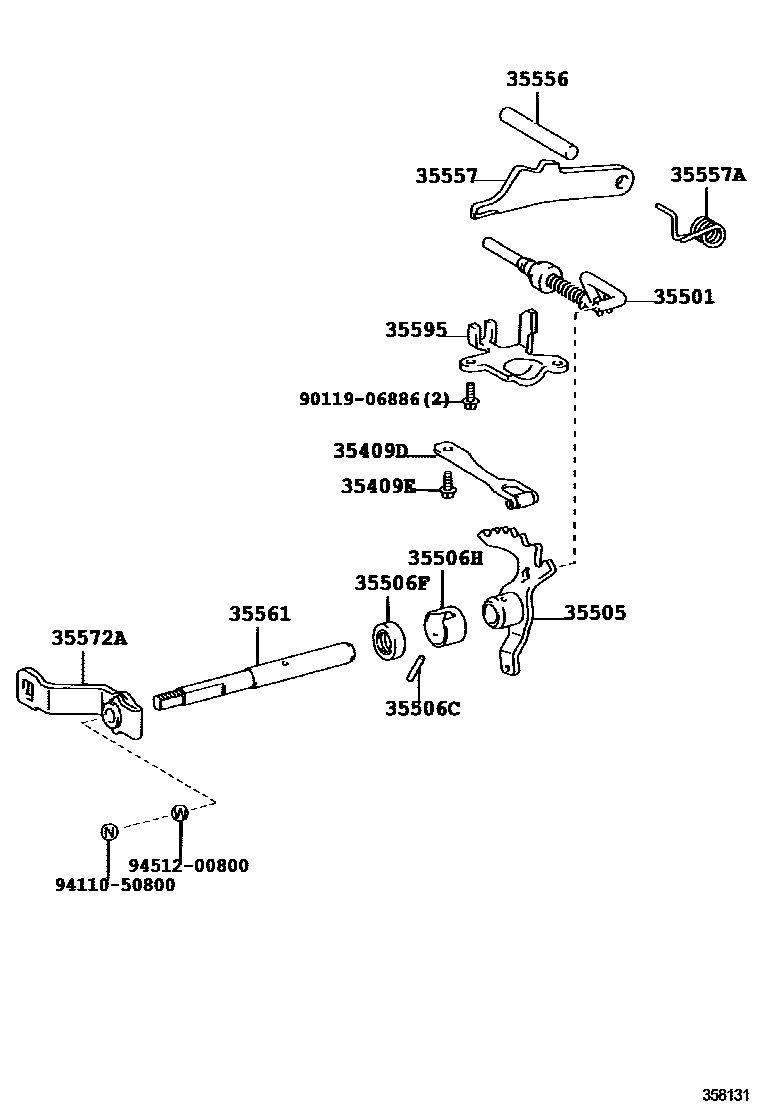

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U441E 0002 1U340E,U340F

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-52010iNNP10200407-200706

main35409-52020iNNP11,15200407-200706

35409EBOLT(FOR MANUAL DETENT SPRING)

main90105-06053iNNP10200407-201107

main90105-06261iNNP10201107

35501ROD SUB-ASSY, PARKING LOCK

main35501-52010iNNP10200407-200706

main35501-52020iNNP11,15200407-201101

main35501-52021iNNP11,15201101

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-52010iNNP10200407-200504

main35505-52020iNNP11,15200407-200706

main35505-52050iNNP10200504-200706

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iNNP1#200407-200706

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iNNP1#200407-200706

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iNNP10200407-200706

35556SHAFT, PARKING LOCK PAWL

main35556-32020iNNP11,15200407-200706

main35556-52010iNNP10200407-200706

35557PAWL, PARKING LOCK

main35557-52010iNNP10200407-200706

main35557-52020iNNP11,15200407-201106

main35557-52021iNNP11,15201106

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03084iNNP10200407-200706

main90949-03089iNNP11,15200407-200706

35561SHAFT, MANUAL VALVE LEVER

main35561-52010iNNP10200407-200706

main35561-52020iNNP11,15200407-200706

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-52020iNNP10200407-201206

main35572-52040iNNP11,15200407-201206

35595BRACKET, PARKING LOCK PAWL

main35595-52010iNNP10200407-200706

main35595-52020iNNP11,15200407-200706

9011906886

main90119-06886

9411050800

main94110-50800

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
