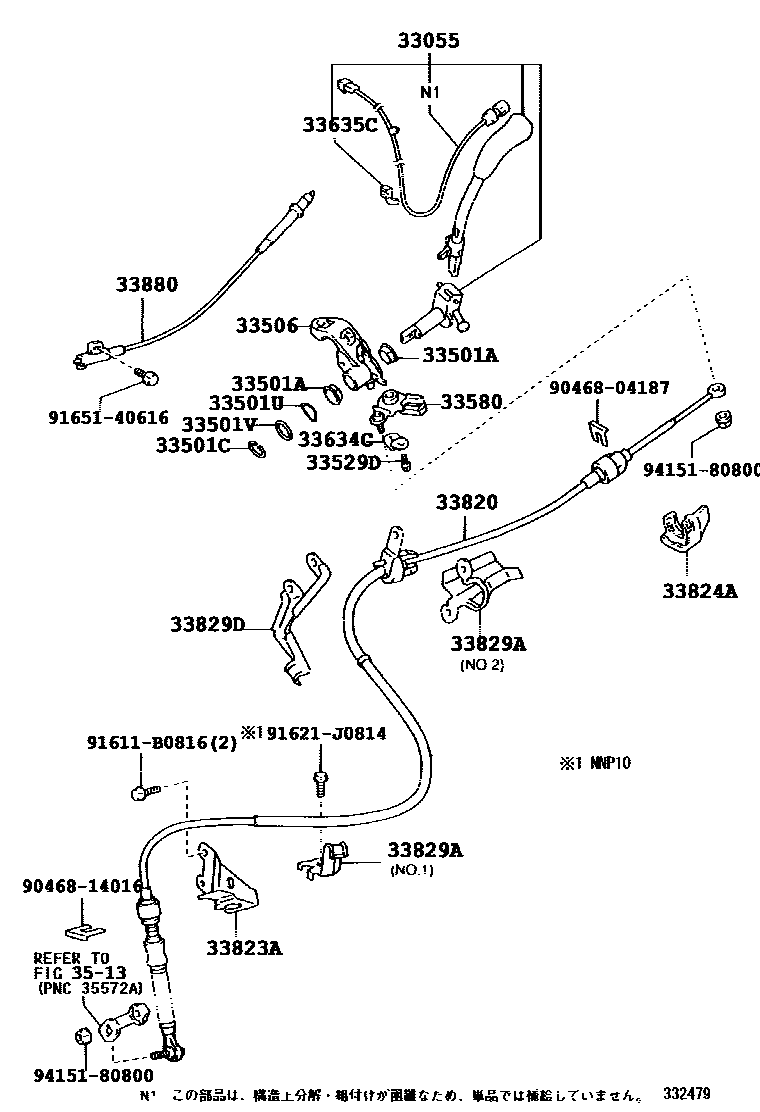

CONTROL SHAFT & CROSSSHAFT

33055LEVER SUB-ASSY, COLUMN SHIFT

main33501-52020iNNP1#200407-200706

main33501-52050-E0iNNP1#200706-201206

GREGE,TRIM4#

33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90386-21002×2iNNP1#200407-200706

33501CRING (FOR CONTROL SHAFT)

main96150-02000iNNP1#200407-200706

33501UWASHER, WAVE(FOR COLUMN SHIFT CONTROL SHIFT)

main90206-21002iNNP1#200407-200706

33501VSPACER(FOR COLUMN SHIFT CONTROL SHIFT)

main90560-22005iNNP1#200407-200706

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-52022iNNP1#200407-200706

33529DBOLT, SHIFT LEVER

main33529-52010iNNP1#200407-200706

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-52010iNNP1#200407-200706

33634CBRACKET, SHIFT LEVER HARNESS CONNECTOR

main33634-32010iNNP1#200407-200706

33635CGUIDE, WIRE

main33635-52010iNNP1#200407-200706

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-52410iNNP10200407-200706

main33820-52420iNNP11,15200407-200706

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-52020iNNP10200706

main33823-52041iNNP11,15200706

33824ACOVER, TRANSMISSION CONTROL CABLE

main33824-52010iNNP1#200407-200706

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-52020iNNP10200407-200706

main33829-52030iNNP11,15200407-200706

main33829-52050iNNP1#200706

33829DBRACKET, TRANSMISSION CONTROL CABLE

main33829-52070iNNP1#200706

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-52080iNNP1#200407-200602

main33880-52082iNNP1#200602-200706

9046804187

main90468-04187

9046814016

main90468-14016

91611B0816

main91611-B0816

91621J0814

main91621-J0814

9165140616

main91651-40616

9415180800

main94151-80800

22 parts on this diagram · 1 diagram in section
