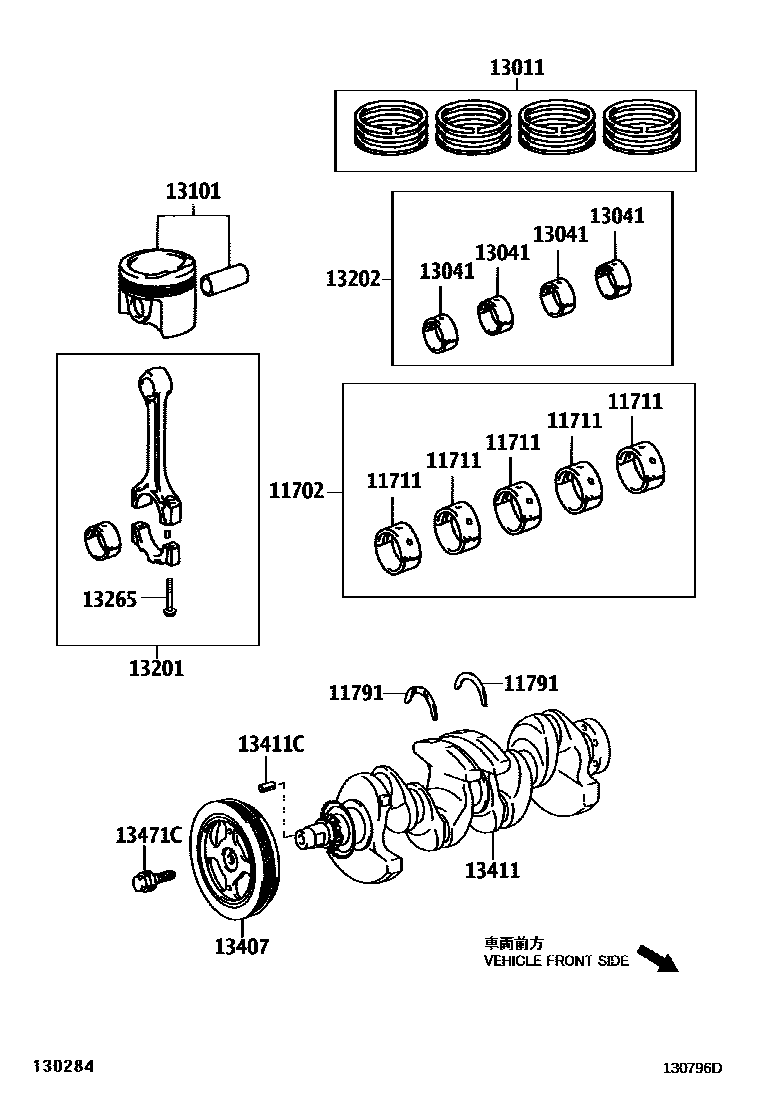

CRANKSHAFT & PISTON

11702BEARING SET, CRANKSHAFT

main11704-21031i1NZFE,2NZFE..NNP1#200706

main11704-21040i1NZFE,2NZFE..NNP1#200407-200408

11711BEARING, CRANKSHAFT

main11701-21031-01×5i1NZFE,2NZFE..NNP1#200408-200706

main11701-21031-02×5i1NZFE,2NZFE..NNP1#200706

main11701-21031-03×5i1NZFE,2NZFE..NNP1#200706

main11701-21031-04×5i1NZFE,2NZFE..NNP1#200408-200706

main11701-21040-01×5i1NZFE,2NZFE..NNP1#200407-200408

main11701-21040-02×5i1NZFE,2NZFE..NNP1#200407-200408

main11701-21040-03×5i1NZFE,2NZFE..NNP1#200407-200408

main11701-21040-04×5i1NZFE,2NZFE..NNP1#200407-200408

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i1NZFE,2NZFE..NNP1#200706-201206

main11791-37010×2i1NZFE,2NZFE..NNP1#200408-200706

main11792-22020×2i1NZFE,2NZFE..NNP1#200407-200706

main11793-22020×2i1NZFE,2NZFE..NNP1#200407-200706

13011RING SET, PISTON

main13011-21041i1NZFE..NNP11,15200407-200706

main13011-21050i2NZFE..NNP10200407-200706

13041BEARING, CONNECTING ROD

main13041-21022-01×4i1NZFE,2NZFE..NNP1#200408-200706

main13041-21022-02×4i1NZFE,2NZFE..NNP1#200408-200706

main13041-21022-03×4i1NZFE,2NZFE..NNP1#200706

main13041-21031-01×4i1NZFE,2NZFE..NNP1#200407-200408

main13041-21031-02×4i1NZFE,2NZFE..NNP1#200407-200408

main13041-21031-03×4i1NZFE,2NZFE..NNP1#200407-200408

13101PISTON SUB-ASSY, W/PIN

main13101-21070×4i1NZFE..NNP11,15200407-200706

main13101-21080×4i2NZFE..NNP10200407-200706

13201ROD SUB-ASSY, CONNECTING

main13201-29095×4i1NZFE..NNP11200407-200408

main13201-29275×4i1NZFE..NNP11200407-200408

main13201-29715×4i2NZFE..NNP10200407-200706

main13201-29735×4i1NZFE..NNP11,15200706

13202BEARING SET, CONNECTING ROD

main13204-21022i1NZFE,2NZFE..NNP1#200706

13265BOLT, CONNECTING ROD

main13265-21020×8i1NZFE,2NZFE..NNP1#200407-200706

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21020i1NZFE,2NZFE..NNP1#200407-200706

13411CRANKSHAFT

main13401-21020i1NZFE..NNP11,15200706

main13401-21030i2NZFE..NNP10200706

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90254-03025i1NZFE,2NZFE..NNP1#200407-200706

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i1NZFE,2NZFE..NNP1#200407-200706

13 parts on this diagram · 1 diagram in section
