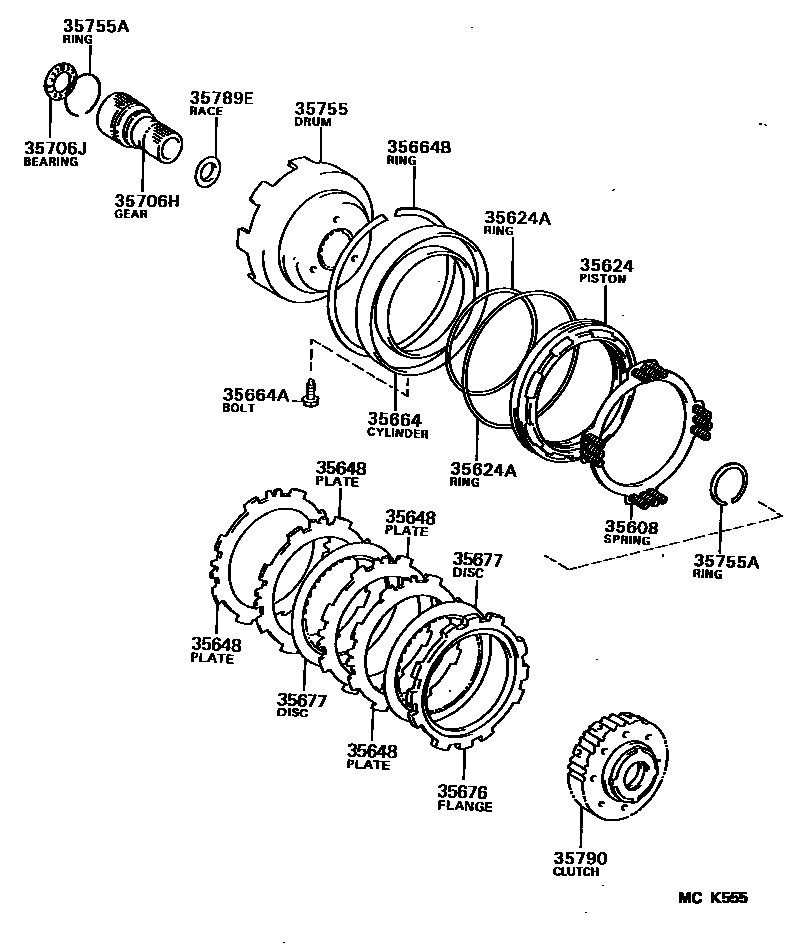

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iEXY10..ATM199003-199512

35624PISTON, 2ND BRAKE

main35624-32010iEXY10..ATM199003-199512

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iEXY10..ATM199003-199512

main90301-99023iEXY10..ATM199003-199512

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010×4iEXY10..ATM199003-199107

35664CYLINDER, 2ND BRAKE

main35664-32010iEXY10..ATM199003-199512

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iEXY10..ATM199003-199512

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iEXY10..ATM199003-199512

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iEXY10..ATM199003-199512

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-20020×2iEXY10..ATM199003-199101

main35677-20040×2iEXY10..ATM199101-199107

main35677-20050×3iEXY10..ATM199107-199512

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iEXY10..ATM199210-199512

main35706-32030iEXY10..ATM199003-199210

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iEXY10..ATM199003-199512

35755DRUM, SUN GEAR INPUT

main35755-32020iEXY10..ATM199003-199512

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iEXY10..ATM199003-199512

main90520-47003iEXY10..ATM199003-199512

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iEXY10..ATM199003-199512

35790CLUTCH ASSY, 1 WAY

main35790-32050iEXY10..ATM199003-199512

15 parts on this diagram · 1 diagram in section
