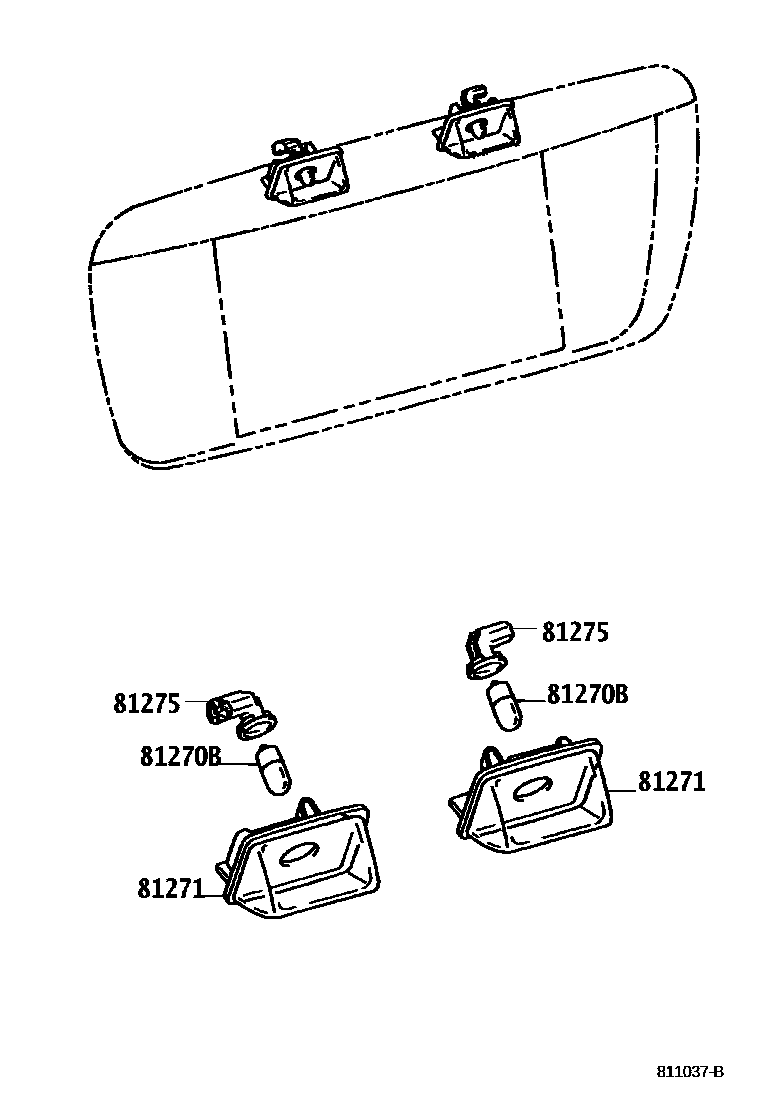

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199601-199907

81271LENS, LICENSE PLATE LAMP

main81271-12501iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199601-199907

main81271-16260iEP9#..REMIX199810-199907

main81691-12131iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199601-199907

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12500iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199601-199812

main81275-12501iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199812-199907

3 parts on this diagram · 2 diagrams in section
