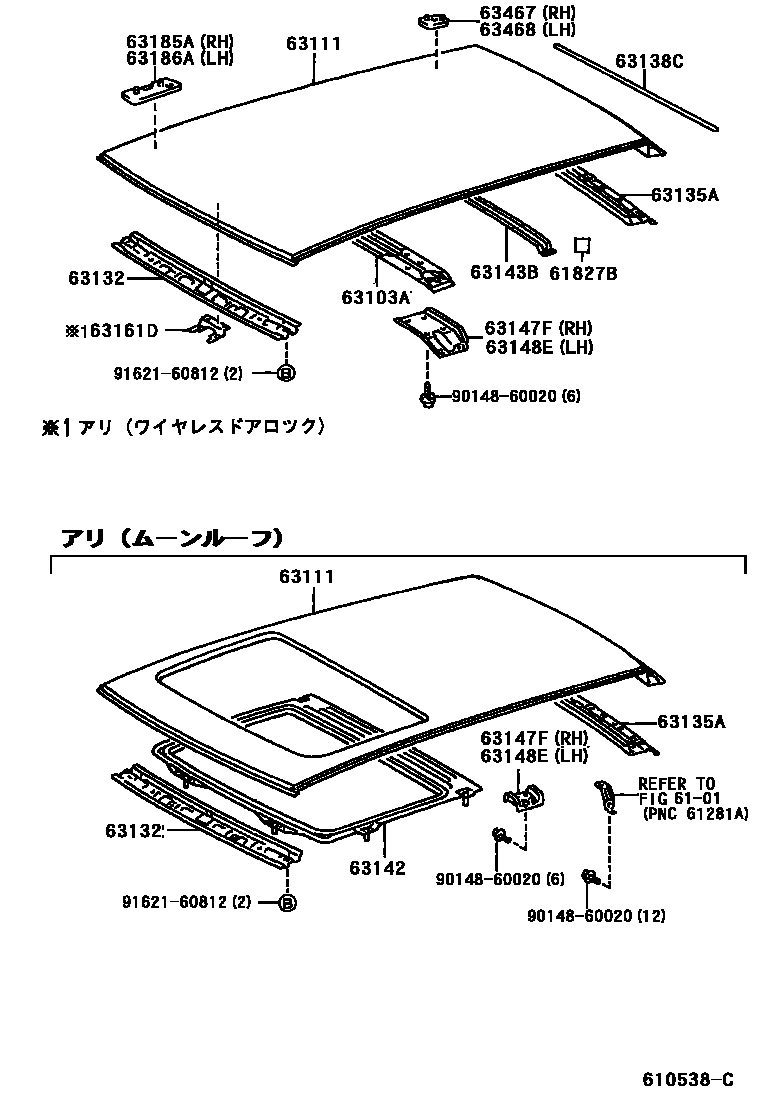

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��(�-��-�) 0003 1

6101SIDE MEMBER

→ Go to FIG 61-01

61827BPLATE, NOISE CONTROL, NO.4

main61815-32020×2iEP9#,NP90199901

main61827-10010×2iEP9#,NP90199601-199901

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-10030iEP9#,NP90..3D199601

main63103-10040iEP9#,NP90..5D199601

63111PANEL, ROOF

main63111-10190iEP9#,NP90199601

main63111-10210iEP9#..3D..(GLZS,GLZV,RFLX)199601

63132PANEL, WINDSHIELD HEADER, INNER

main63132-10100iEP9#,NP90199601

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-10040iEP9#,NP90199601

63138CSEAL, BACK DOOR OPENING, UPPER

main63138-10010iEP9#,NP90199602

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-10030iEP9#..3D..(GLZS,GLZV,RFLX)199601

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-10040iEP9#,NP90199601

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-10010iEP9#,NP90199601

main63147-10030iEP9#..3D..(GLZS,GLZV,RFLX)199601

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-10030iEP9#..3D..(GLZS,GLZV,RFLX)199601

main63148-10020iEP9#,NP90199601

63161DPLATE, ROOF HEADER PANEL, NO.1

main63161-10010iEP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX199601

63185ABRACKET, ROOF RACK, FRONT RH

main63185-10010iEP9#..REMIX199810

63186ABRACKET, ROOF RACK, FRONT LH

main63186-10010iEP9#..REMIX199810

63467BRACKET, ROOF RACK, REAR RH

main63467-10010iEP9#..REMIX199810

63468BRACKET, ROOF RACK, REAR LH

main63468-10010iEP9#..REMIX199810

9014860020

main90148-60020

9162160812

main91621-60812

18 parts on this diagram · 3 diagrams in section
