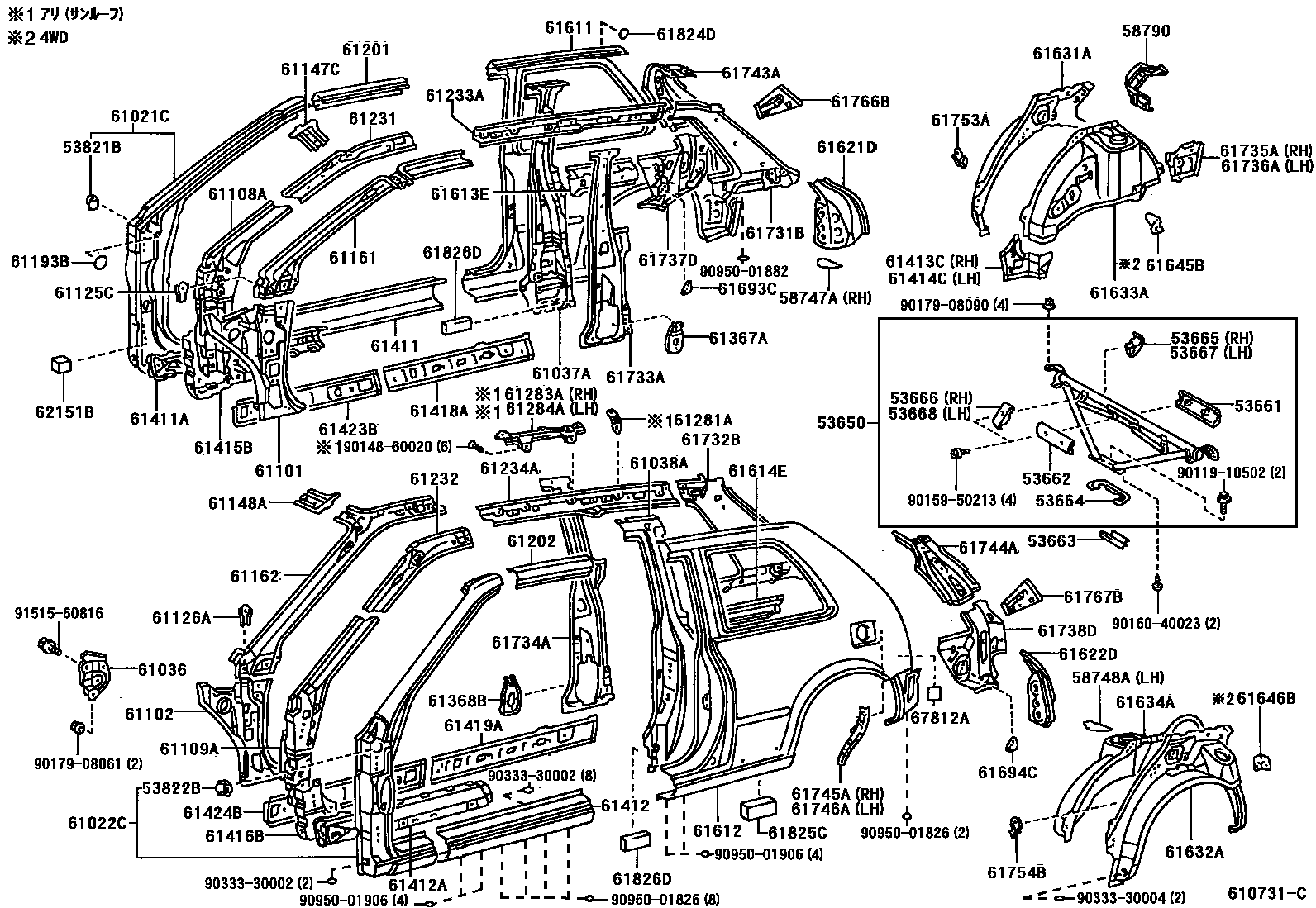

SIDE MEMBER

0001 1 0002 1

53650BRACE ASSY, REAR SUSPENSION

main53650-10010-B1iEP91..GLZV199601-199907

BLUISH GRAY,TRIM1#

53661COVER, REAR SUSPENSION BRACE, UPPER NO.1

main53661-10010-B1iEP91..GLZV199601-199907

BLUISH GRAY,TRIM1#

53662COVER, REAR SUSPENSION BRACE, UPPER NO.2

main53662-10010-B1iEP91..GLZV199601-199907

BLUISH GRAY,TRIM1#

53663COVER, REAR SUSPENSION BRACE, LOWER NO.1

main53663-10010-B1iEP91..GLZV199601-199907

BLUISH GRAY,TRIM1#

53664COVER, REAR SUSPENSION BRACE, LOWER NO.2

main53664-10010-B1iEP91..GLZV199601-199907

BLUISH GRAY,TRIM1#

53665COVER, REAR SUSPENSION BRACE, RH NO.1

main53665-10010-B1iEP91..GLZV199601-199907

BLUISH GRAY,TRIM1#

53666COVER, REAR SUSPENSION BRACE, RH NO.2

main53666-10010-B1iEP91..GLZV199601-199907

BLUISH GRAY,TRIM1#

53667COVER, REAR SUSPENSION BRACE, LH NO.1

main53667-10010-B1iEP91..GLZV199601-199907

BLUISH GRAY,TRIM1#

53668COVER, REAR SUSPENSION BRACE, LH NO.2

main53668-10010-B1iEP91..GLZV199601-199907

BLUISH GRAY,TRIM1#

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iEP9#,NP90199601

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iEP9#,NP90199601

58747APROTECTOR, QUARTER PANEL, REAR RH

main58747-10020iEP9#..CARAT199704

58748APROTECTOR, QUARTER PANEL, REAR LH

main58747-10020iEP9#..CARAT199704

58790CARRIER ASSY, JACK

main58791-10030iEP9#,NP90199601

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-10190iEP91..GLZS199612-199704

main61021-10230iEP91..GLZV199601

main61021-10240iEP9#..REMIX199810

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-10280iEP91..GLZS199612-199704

main61022-10320iEP91..GLZS199612

main61022-10330iEP9#..REMIX199810

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-16030iEP9#,NP90199601

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-10010iEP9#,NP90..5D199601

main61037-10020iEP9#,NP90..3D199601

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-10010iEP9#,NP90..5D199601

main61038-10020iEP9#,NP90..3D199601

61101PANEL SUB-ASSY, COWL SIDE, RH

main61121-10090iEP91..5F..GLZV; EP91..RFL199601-199712

main61121-10100iEP91..RFL; NP90;EP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX199601

61102PANEL SUB-ASSY, COWL SIDE, LH

main61122-10110iEP9#,NP90..GLZS,RFL,RFLF199601-199712

main61122-10120iEP9#,NP90..GLZS,RFL,RFLF; EP9#..CARAT,GLZV,RFLX199601-199712

main61122-10130iEP9#,NP90199712

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-10060iEP9#,NP90199601

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-10060iEP9#,NP90199601

61125CREINFORCEMENT, COWL SIDE PANEL, RH

main61125-16030iEP9#,NP90199601

61126AREINFORCEMENT, COWL SIDE PANEL, LH

main61125-16030iEP9#,NP90199601

61147CEXTENSION, FRONT BODY PILLAR, OUTER RH

main61147-10010iEP9#,NP90199601

61148AEXTENSION, FRONT BODY PILLAR, UPPER OUTER LH

main61148-10010iEP9#,NP90199601

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-10090iEP9#,NP90199601

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-10080iEP9#,NP90199601

61193BCOVER, FRONT PILLAR SERVICE HOLE

main61193-10010×2iEP9#,NP90199601-199712

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61211-10080iEP9#,NP90..3D199601

main61211-10090iEP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX)199601

main61211-10100iEP9#..REMIX199810

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61212-10080iEP9#,NP90..3D199601

main61212-10090iEP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX)199601

main61212-10100iEP9#..REMIX199810

61231RAIL, ROOF SIDE, INNER RH

main61231-10160iEP9#,NP90199601

61232RAIL, ROOF SIDE, INNER LH

main61232-10160iEP9#,NP90199601

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-10010iEP9#,NP90..3D199601-199907

main61233-10020iEP9#..3D..(GLZS,GLZV,RFLX)199601-199907

main61233-10030iEP9#,NP90..5D199601-199907

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-10010iEP9#,NP90..3D199601-199907

main61234-10020iEP9#..3D..(GLZS,GLZV,RFLX)199601-199907

main61234-10030iEP9#,NP90..5D199601-199907

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-10060×2iEP9#..3D..(GLZS,GLZV,RFLX)199601

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-10060iEP9#..3D..(GLZS,GLZV,RFLX)199601

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-10060iEP9#..3D..(GLZS,GLZV,RFLX)199601

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-10020iEP9#,NP90..3D199601

61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH

main61368-10020iEP9#,NP90..3D199601

61411PANEL, ROCKER, OUTER RH

main61411-10180iEP91..GLZS199612-199704

main61411-10190iEP91..GLZS; EP91..GLZV199601

61411AREINFORCEMENT, ROCKER PANEL, NO.1 RH

main61403-10010iEP9#,NP90..3D199601

main61403-10020iEP9#,NP90..5D199601

61412PANEL, ROCKER, OUTER LH

main61412-10180iEP91..GLZS199612-199704

main61412-10190iEP91..GLZS; EP91..GLZV199601

61412AREINFORCEMENT, ROCKER PANEL, NO.1 LH

main61404-10010iEP9#,NP90..3D199601

main61404-10020iEP9#,NP90..5D199601

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-10030iEP9#,NP90199601

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-10030iEP9#,NP90199601

61415BEXTENSION, ROCKER, OUTER RH

main61415-10010iEP9#,NP90199601

61416BEXTENSION, ROCKER, OUTER LH

main61416-10010iEP9#,NP90199601

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-10030iEP9#,NP90199601

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-10020iEP9#,NP90199601

61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH

main61423-10030iEP9#,NP90199601

61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH

main61424-10030iEP9#,NP90199601

61611PANEL, QUARTER, RH

main61601-1C360iEP91..GLZS199612-199704

main61601-1C380iEP91..GLZS; EP91..GLZV199601-199907

main61601-1C390iEP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX)199601-199907

main61601-1C410iEP9#..REMIX199810-199907

61612PANEL, QUARTER, LH

main61602-1C400iEP91..GLZS199612-199704

main61602-1C410iEP91..GLZS; EP91..GLZV199601-199907

main61602-1C420iEP9#,NP90..5D..(CARAT,RFL,RFLF,RFLX)199601-199907

main61602-1C430iEP9#..REMIX199810-199907

61613EPANEL, QUARTER, INNER RH

main61613-10060iEP9#,NP90..3D199601

61614EPANEL, QUARTER, INNER LH

main61614-10080iEP9#,NP90..3D199601

61621DTROUGH, BACK DOOR OPENING, RH

main61621-10040iEP9#,NP90199601

61622DTROUGH, BACK DOOR OPENING, LH

main61622-10040iEP9#,NP90199601

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-10070iEP9#,NP90..3D199601

main61631-10080iEP9#,NP90..5D199601

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-10070iEP9#,NP90..3D199601

main61632-10080iEP9#,NP90..5D199601

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-10070iEP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX199601-199712

main61607-10080iEP95..3D199601-199704

main61607-10090iEP91..GLZV199601-199712

main61607-10100iEP95..3D..RFLX199601-199712

main61607-10110iEP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199712

main61607-10120iEP95199712

main61607-10130iEP91..GLZV199712

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-10070iEP91,NP90..CARAT,GLZS,RFL,RFLF,RFLX199601-199712

main61608-10080iEP95..3D199601-199704

main61608-10090iEP91..GLZV199601-199712

main61608-10100iEP95..3D..RFLX199601-199712

main61608-10110iEP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199712

main61608-10120iEP95199712

main61608-10130iEP91..GLZV199712

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-10040iEP95199601

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-10040iEP95199601

61693CRETAINER, REAR SEATBACK SET, RH

main61693-10040iEP9#,NP90199601

61694CRETAINER, REAR SEATBACK SET, LH

main61693-10040iEP9#,NP90199601

61731BPANEL, ROOF SIDE, INNER RH

main61731-1C200iEP91,NP90..3D..RFL199601

main61731-1C210iEP9#..3D..(CARAT,GLZS,GLZV,RFLF,RFLX)199601

main61731-1C220iEP91,NP90..5D..RFL199601

main61731-1C230iEP9#..5D..(CARAT,REMIX,RFLF,RFLX)199601

61732BPANEL, ROOF SIDE, INNER LH

main61732-1C200iEP91,NP90..3D..RFL199601

main61732-1C210iEP9#..3D..(CARAT,GLZS,GLZV,RFLF,RFLX)199601

main61732-1C220iEP91,NP90..5D..RFL199601

main61732-1C230iEP9#..5D..(CARAT,REMIX,RFLF,RFLX)199601

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-10050iEP91,NP90..3D..RFL199601-199712

main61733-10060iEP9#..3D..(GLZS,GLZV,RFLF,RFLX)199601-199712

main61733-10071iEP9#,NP90..3D199712

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-10050iEP91,NP90..3D..RFL199601-199712

main61734-10060iEP9#..3D..(GLZS,GLZV,RFLF,RFLX)199601-199712

main61734-10071iEP9#,NP90..3D199712

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-10030iEP9#,NP90199601-199712

main61735-10040iEP9#..3D..(GLZS,GLZV,RFLX)199601

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-10030iEP9#,NP90199601-199712

main61736-10040iEP9#..3D..(GLZS,GLZV,RFLX)199601

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-10050iEP9#,NP90..3D199601

main61737-10060iEP9#,NP90..5D199601

61738DREINFORCEMENT, ROOF SIDE, INNER LH

main61738-10030iEP9#,NP90..3D199601

main61738-10040iEP9#,NP90..5D199601

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-10010iEP9#,NP90..3D199601

main61743-10020iEP9#,NP90..5D199601

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61744-10010iEP9#,NP90..3D199601

main61744-10020iEP9#,NP90..5D199601

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-10030iEP9#,NP90199601

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-10030iEP9#,NP90199601

61753ARETAINER, QUARTER TRIM, LOWER

main61753-10050iEP9#,NP90..3D199601

61754BRETAINER, QUARTER TRIM, LOWER LH

main61754-10040iEP9#,NP90..3D199601

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-10090iEP9#,NP90..3D199601

main61766-10100iEP9#,NP90..5D199601

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-10090iEP9#,NP90..3D199601

main61767-10100iEP9#,NP90..5D199601

61824DPLATE, NOISE CONTROL, NO.1

main61824-12040×2iEP9#,NP90; EP9#..3D..(GLZS,GLZV,RFLX)199601

61825CPAD, NOISE SHUTTER, NO.2

main61825-10010×2iEP9#,NP90..3D199601-199704

61826DPLATE, NOISE CONTROL, NO.3

main61826-10010×2iEP9#,NP90199601

62151BPAD, COWL SIDE SILENCER

main62151-12130×2iEP9#,NP90199812

main62151-20170×2iEP9#,NP90199601-199812

67812APAD, QUARTER PANEL SILENCER

main67812-10020iEP9#,NP90199601

9011910502

main90119-10502

9014860020

main90148-60020

9015950213

main90159-50213

9016040023

main90160-40023

9017908061

main90179-08061

9017908090

main90179-08090

9033330002

main90333-30002

9033330004

main90333-30004

9095001826

main90950-01826

9095001882

main90950-01882

9095001906

main90950-01906

9151560816

main91515-60816

100 parts on this diagram · 2 diagrams in section
