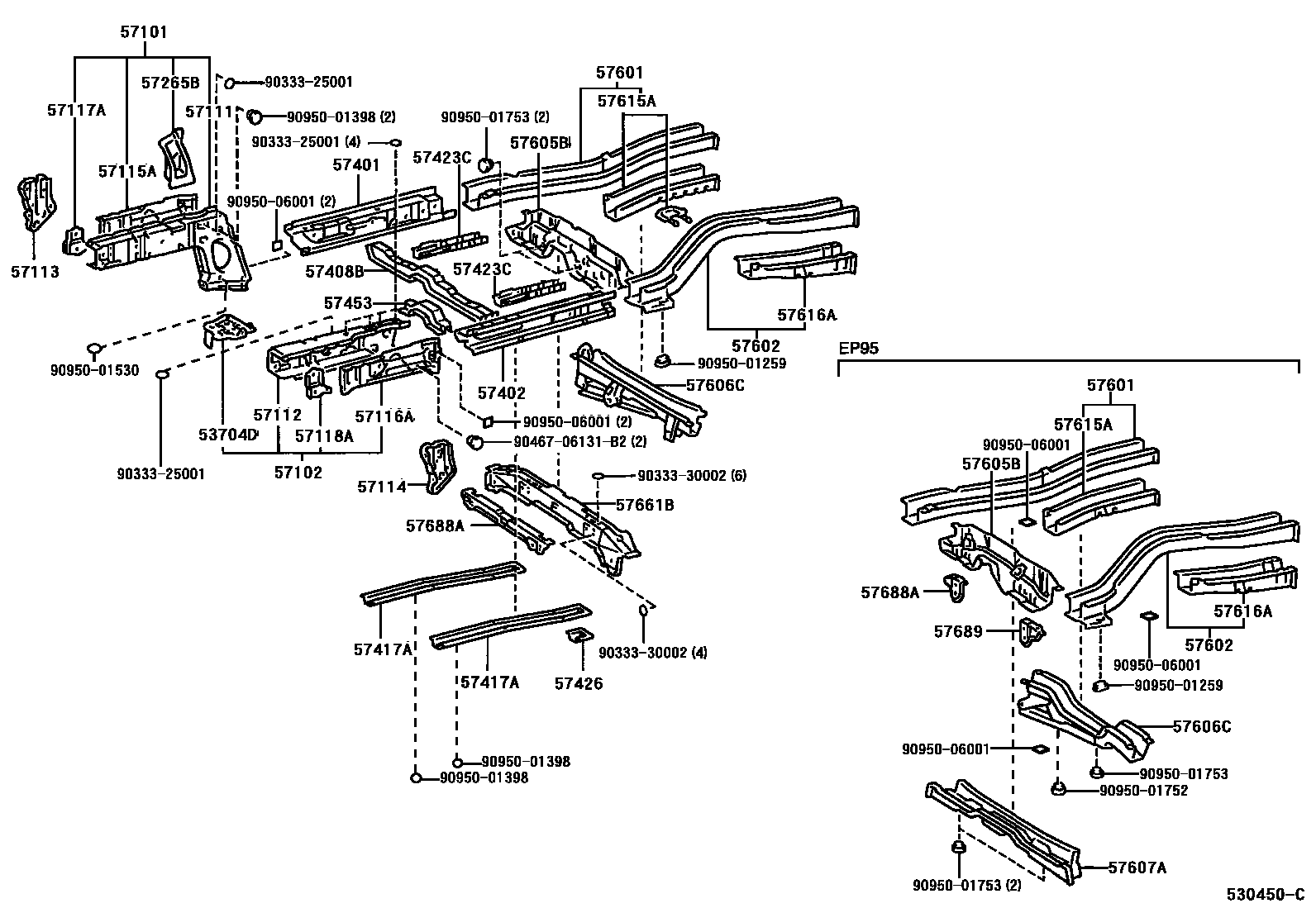

FLOOR SIDE MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-10030iEP91..GLZV199601

main53704-16020iEP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-10310iEP9#,NP90199601-199712

main57101-10311iEP95;EP91,NP90..(4FC,5F)..(GLZV,RFL)199712

main57101-10320iEP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199712

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-10430iEP9#,NP90..CARAT,GLZS,RFL,RFLF,RFLX199601-199712

main57102-10431iEP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199712

main57102-10440iEP91..GLZV199601-199712

main57102-10441iEP91..GLZV199712

57111MEMBER, FRONT SIDE, RH

main57111-16130iEP9#,NP90199601-199706

main57111-16131iEP9#,NP90199706

57112MEMBER, FRONT SIDE, LH

main57112-10190iEP91..GLZV199601-199706

main57112-10191iEP91..GLZV199706

main57112-16150iEP9#,NP90..CARAT,GLZS,RFL,RFLF,RFLX199601-199706

main57112-16151iEP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199706

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-10040iEP9#,NP90199601

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-10040iEP9#,NP90199601

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-10060iEP9#,NP90199601

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-10060iEP9#,NP90199601

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-10050iEP9#,NP90199601-199712

main57117-16060iEP9#,NP90199712

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-10050iEP9#,NP90199601-199712

main57118-16060iEP9#,NP90199712

57265BBRACKET, ENGINE MOUNTING, RH

main57265-10020iEP9#,NP90199601-199712

main57265-16030iEP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199712

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-10150iEP9#,NP90..3D199601

main57401-10160iEP9#,NP90..5D199601

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-10150iEP9#,NP90..3D199601

main57402-10160iEP9#,NP90..5D199601

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-10100iEP9#,NP90199601

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-10080×2iEP9#,NP90199601

57423CREINFORCEMENT, FRONT FLOOR UNDER, INNER

main57423-46010×2iEP9#,NP90199712

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-10020iEP9#,NP90199601

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-10021iEP91,NP90199601-199704

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-10100iEP95199601-199810

main57601-10120iEP91,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199601

main57601-10130iEP91..REMIX199810

main57601-10140iEP95199810

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-10070iEP91,NP90199601

main57602-10100iEP95199601

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-10110iEP95199601

main57605-16050iEP91,NP90199601

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-10080iEP91,NP90199601

main57606-10100iEP95199601

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-10040iEP95199601

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-10903iEP91,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199601

main57615-16918iEP95199601-199810

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-16914iEP9#,NP90199601-199810

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-16010iEP91,NP90..3D199601

main57661-16020iEP91,NP90..5D199601

57688AREINFORCEMENT, REAR FLOOR CROSSMEMBER

main57688-10040iEP91,NP90..GLZS,GLZV,RFL;EP91..3D..(CARAT,RFLF,RFLX)199601

main57688-10050iEP95199601

57689REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57689-10020iEP95199601

9033325001

main90333-25001

9033330002

main90333-30002

9046706131B2

main90467-06131B2

9095001259

main90950-01259

9095001398

main90950-01398

9095001530

main90950-01530

9095001752

main90950-01752

9095001753

main90950-01753

9095006001

main90950-06001

38 parts on this diagram · 1 diagram in section
