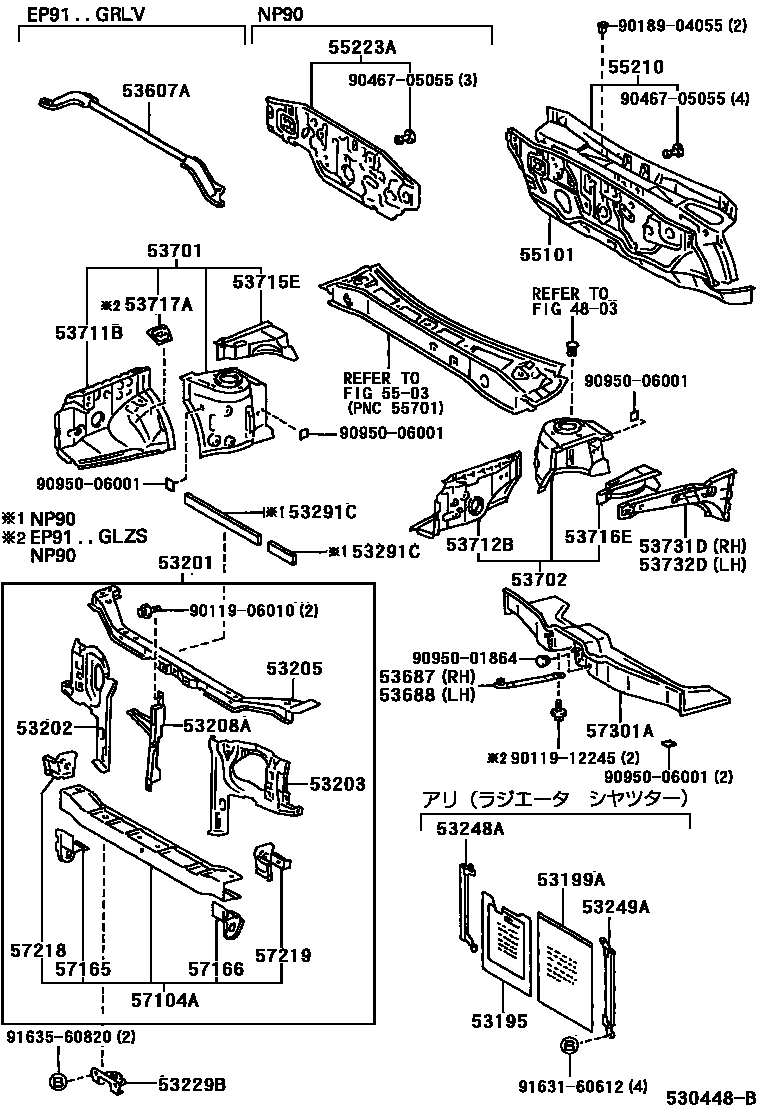

FRONT FENDER APRON & DASH PANEL

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

53195PLATE, RADIATOR SHUTTER

main53195-16021iNP90199601

53199ABAG, RADIATOR SHUTTER

main53199-10020iNP90199601

53201SUPPORT SUB-ASSY, RADIATOR

main53201-10500iEP91..RFL,RFLF,RFLX;EP95..5F..(RFLF,RFLX)199601-199706

main53201-10501iEP91..RFL,RFLF,RFLX;EP95..5F..(RFLF,RFLX)199706-199712

main53201-10510iEP95..4FC..(RFLF,RFLX)199601-199706

main53201-10511iEP95..4FC..(RFLF,RFLX)199706-199712

main53201-10530iEP91..GLZV199601-199706

main53201-10531iEP91..GLZV199706

main53201-10550iNP90..5F199601-199706

main53201-10551iNP90..5F199706-199712

main53201-10552iNP90..5F199712

main53201-10560iNP90..4FC199601-199706

main53201-10561iNP90..4FC199706-199712

main53201-10562iNP90..4FC199712

main53201-10580iEP91..GLZS199601-199706

main53201-10581iEP91..GLZS199706

main53201-10620iEP9#..(3FC,4F,5F)..CARAT199704-199706

main53201-10621iEP9#..(3FC,4F,5F)..(CARAT,REMIX)199706

main53201-10630iEP95..4FC..CARAT199704-199706

main53201-10631iEP95..4FC..(CARAT,REMIX)199706

main53201-10640iEP91..RFL,RFLF,RFLX;EP95..5F..(RFLF,RFLX)199712

main53201-10650iEP95..4FC..(RFLF,RFLX)199712

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-10160iEP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main53202-10170iEP91..GLZV199601

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-10230iEP9#199601

main53203-10240iNP90199601

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-10140iEP95..5F;EP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main53205-10150iEP95..4FC;EP91..GLZV199601

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-10100iEP9#,NP90..RFL,RFLF,RFLX199601-199712

main53208-10101iEP9#,NP90..RFL,RFLF,RFLX199712

main53215-10090iEP9#..CARAT,GLZS,GLZV,REMIX199601

53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2

main53229-10070iEP95..5F;EP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main53229-10080iEP95..4FC;EP91..GLZV199601

main53229-16050iNP90..4FC199601

53248ABRACKET, RADIATOR SHUTTER, RH

main53248-10020iNP90..4FC199601

main53248-16050iNP90..5F199601

53249ABRACKET, RADIATOR SHUTTER, LH

main53249-10030iNP90..4FC199601

main53249-16020iNP90..5F199601

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-10090iNP90199601

main53292-10050iNP90199601

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-10010iEP91..GLZV199601

53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH

main53687-10030iEP9#,NP90199601

53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH

main53687-10030iEP9#,NP90199601

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-10370iEP9#,NP90199601

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-10380iEP9#,NP90199601

53711BAPRON, FRONT FENDER, FRONT RH

main53711-16141iEP9#,NP90199601

53712BAPRON, FRONT FENDER, FRONT LH

main53712-16071iEP9#,NP90199601

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-10050iEP9#,NP90199601

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-10050iEP9#,NP90199601

53717APLATE, FENDER APRON

main53717-10040iEP91,NP90..(4FC,5F)..(GLZV,RFL)199601

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-10070iEP9#,NP90199601

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-10070iEP9#,NP90199601

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

55101PANEL SUB-ASSY, DASH

main55101-10772iEP91..5F..GLZS199712

main55101-10782iEP91..4FC..GLZS199712

main55101-10852iEP91..4F..RFL199712

main55101-10862iEP91..3FC..RFL199712

main55101-10870iEP91..5F..GLZV199601-199605

main55101-10871iEP91..4FC..GLZV;EP9#..GLZS,RFL,RFLF,RFLX199601-199605

main55101-10872iEP91..5F..GLZV199712

main55101-10890iNP90..5F199601-199605

main55101-10891iNP90..4FC199601-199605

main55101-10892iNP90..5F199712

main55101-1C012iNP90..4FC199712

main55101-1C060iEP9#..MTM..REMIX199810

main55101-1C070iEP9#..ATM..(CARAT,RFL,RFLF,RFLX)199712

main55101-1C080iEP91..5F..GLZV199712

main55101-1C090iEP91..4FC..GLZV199712

main55101-1C100iNP90..5F199712

main55101-1C110iNP90..4FC199712

55210INSULATOR ASSY, DASH PANEL

main55210-10250iEP9#,NP90199601-199712

main55210-10251iEP9#,NP90199712

55223AINSULATOR, DASH PANEL, OUTER

main55223-10060iNP90199601

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-10071iEP95..5F;EP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main57104-10080iEP95..4FC;EP91..GLZV199601-199706

main57104-10081iEP95..4FC;EP91..GLZV199706

main57104-10090iNP90..5F199601-199706

main57104-10091iNP90..5F199706

main57104-10100iNP90..4FC199601-199706

main57104-10101iNP90..4FC199706

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57165-10050iEP9#,NP90199601

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57166-10050iEP9#,NP90199601

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-16030iEP9#,NP90199601-199706

main57218-16031iEP9#,NP90199706

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-16030iEP9#,NP90199601-199706

main57219-16031iEP9#,NP90199706

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-10120iEP91,NP90..(4FC,5F)..(GLZV,RFL)199601-199712

main57301-10140iEP91..CARAT,GLZS,RFL,RFLF,RFLX199601-199712

main57301-10150iEP95199601-199712

main57301-10160iEP91..GLZV; NP90199712

main57301-16110iNP90199712

main57301-16130iEP91..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199712

main57301-16140iEP95199712

9011906010

main90119-06010

9011912245

main90119-12245

9018904055

main90189-04055

9046705055

main90467-05055

9095001864

main90950-01864

9095006001

main90950-06001

9163160612

main91631-60612

9163560820

main91635-60820

42 parts on this diagram · 1 diagram in section
