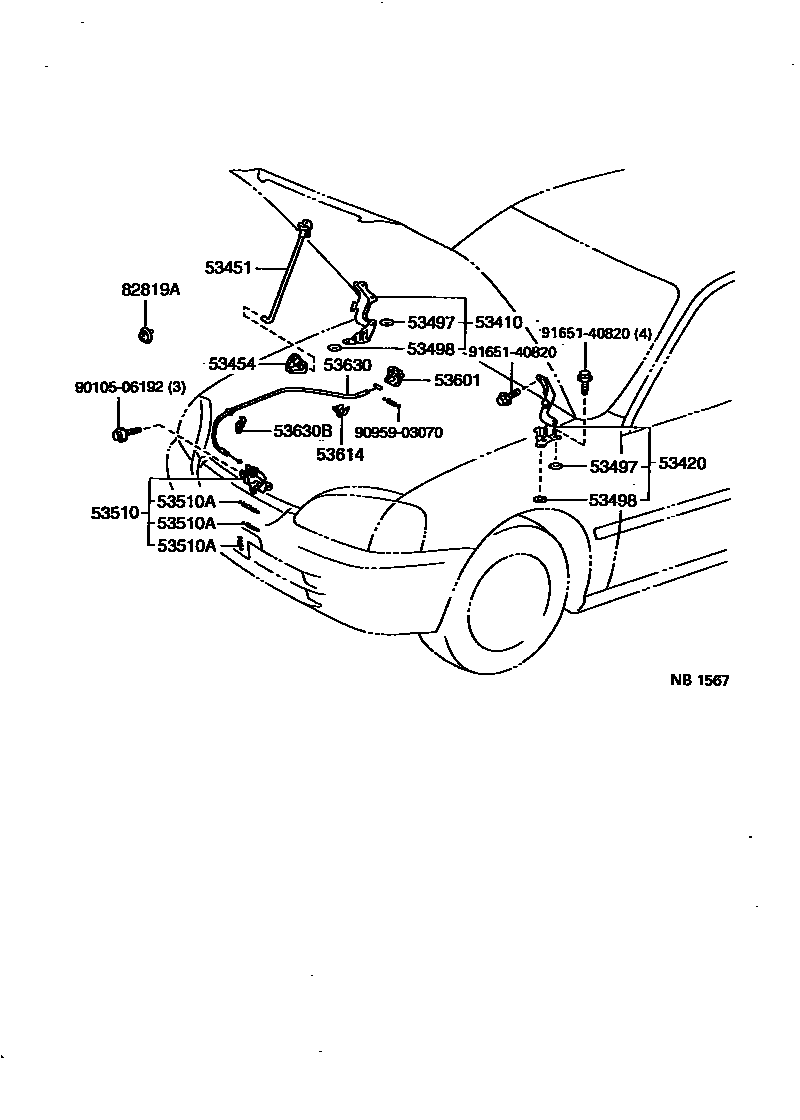

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-10060iEP9#,NP90199601-199712

main53410-16100iEP9#,NP90199712

53420HINGE ASSY, HOOD, LH

main53420-10060iEP9#,NP90199601-199712

main53420-16080iEP9#,NP90199712

53451ROD, HOOD SUPPORT

main53440-10080iEP9#,NP90199601

53454CLIP, HOOD SUPPORT ROD

main53454-16010iEP9#,NP90199601

53497PAD, HOOD HINGE, NO.1

main53497-10020×2iEP9#,NP90199601

main53497-12050iEP9#,NP90199601-199712

53498PAD, HOOD HINGE, NO.2

main53497-10020×2iEP9#,NP90199601

main53497-12050×2iEP9#,NP90199712

53510LOCK ASSY, HOOD

main53510-10190iEP9#,NP90..CARAT,REMIX,RFL,RFLF,RFLX199601

main53510-10220iEP91..GLZS,GLZV199601

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iEP9#,NP90199601

main90506-12063iEP9#,NP90199601

main90506-18067iEP9#,NP90..CARAT,REMIX,RFL,RFLF,RFLX199601

main90506-20062iEP91..GLZS,GLZV199601

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-12040-C0iEP9#,NP90199601-199907

BLACK,TRIM1#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-10020iEP9#,NP90199601

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-10250iEP9#,NP90199601

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main82711-24070×2iEP9#,NP90199601-199712

82819AGROMMET, WIRE

main82819-10130iEP91..(3FC,4F,5F)..(GLZV,RFL)199601-199712

9010506192

main90105-06192

9095903070

main90959-03070

9165140820

main91651-40820

16 parts on this diagram · 1 diagram in section
