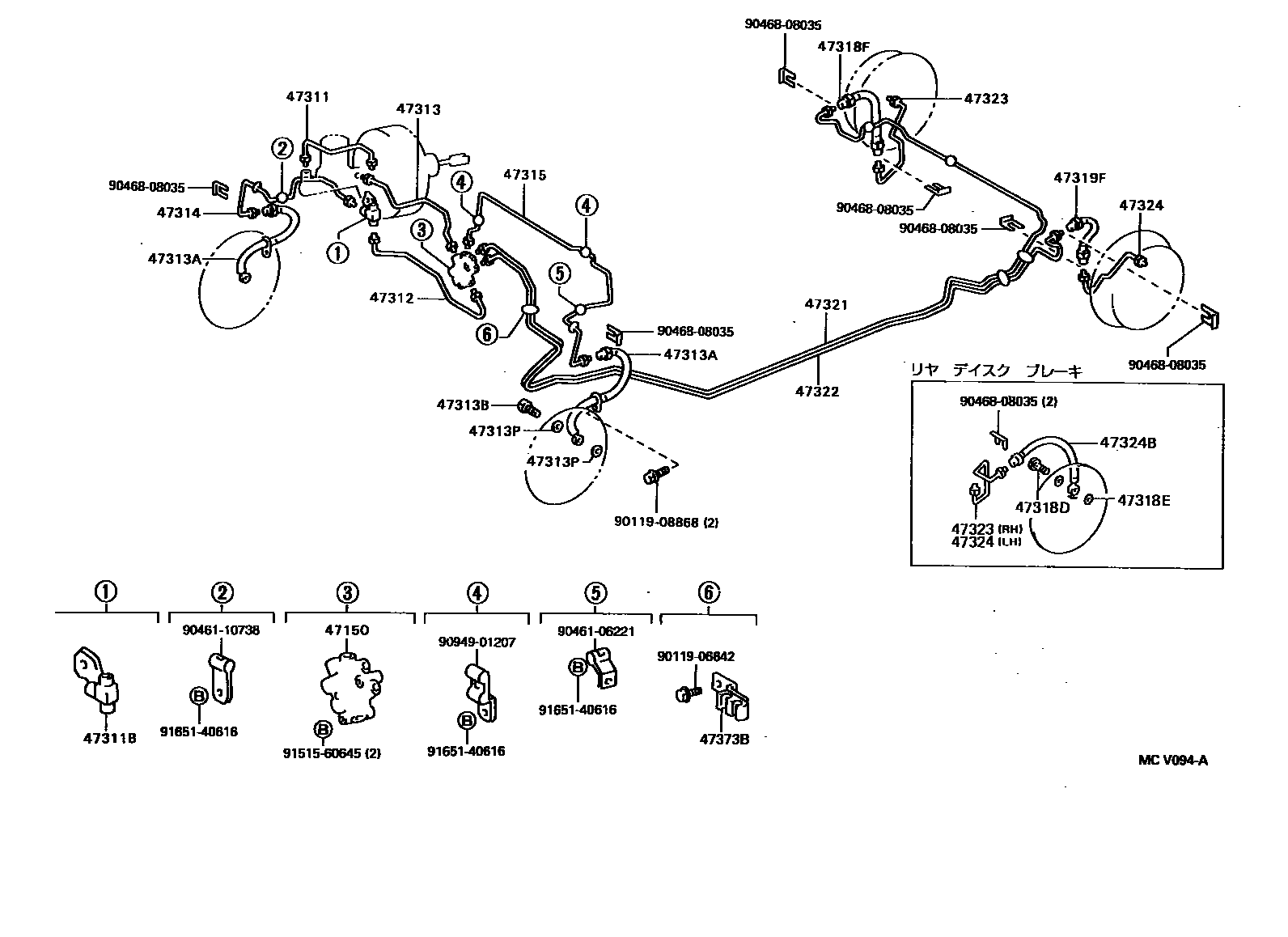

BRAKE TUBE & CLAMP

0001 1 0002 1��(ABS) 0003 1 0004 1��(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-10090iEP91,NP90..RFL199601

main47150-12150iEP95199601

main47150-12160iEP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main47150-16060iEP91..GLZV199601

main47150-20140iEP91..5F..GLZV199601

47311TUBE, FRONT BRAKE, NO.1

main47311-10180iEP91..(3FC,4F,5F)..(GLZV,RFL)199601

main47311-16140iNP90199601

main47311-16170iEP9#,NP90199601-199712

main47311-16230iEP9#,NP90199712

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10169iEP9#,NP90199601

main90413-10259iNP90;EP91..(3FC,4F,5F)..(GLZV,RFL)199601

47312TUBE, FRONT BRAKE, NO.2

main47312-10240iNP90;EP91..(3FC,4F,5F)..(GLZV,RFL)199601

main47312-16150iEP9#,NP90199601-199712

main47312-16200iEP9#,NP90199712

47313TUBE, FRONT BRAKE, NO.3

main47313-10300iNP90;EP91..(3FC,4F,5F)..(GLZV,RFL)199601-199907

main47313-16170iEP9#,NP90199601-199712

main47313-16220iEP9#,NP90199712-199907

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02813iEP9#,NP90199601

main90947-02814iEP9#,NP90199601

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iEP9#,NP90199601

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iEP9#,NP90199601

47314TUBE, FRONT BRAKE, NO.4

main47314-10230iEP9#,NP90199601

main47314-16090iNP90;EP91..(3FC,4F,5F)..(GLZV,RFL)199601

47315TUBE, FRONT BRAKE, NO.5

main47315-16120iNP90;EP91..(3FC,4F,5F)..(GLZV,RFL)199601

main47315-16140iEP9#,NP90199601-199712

main47315-16190iEP9#,NP90199712

47318TUBE, FRONT BRAKE, NO.8

main47318-16030iEP9#,NP90199601

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iEP91..GLZV199601

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iEP91..GLZV199601

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02637iEP91,NP90199601

main90947-02796iEP95199601

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02637iEP91,NP90199601

main90947-02797iEP95199601

47321TUBE, REAR BRAKE, NO.1

main47321-10240iEP91,NP90199601

main47321-10250iEP95199601

47322TUBE, REAR BRAKE, NO.2

main47322-10190iEP91,NP90199601

main47322-10200iEP95199601

47323TUBE, REAR BRAKE, NO.3

main47323-10070iEP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main47323-16150iEP91..GLZV199601

main47323-16190iEP95199601

47324TUBE, REAR BRAKE, NO.4

main47324-16140iEP91..GLZV199601

main47324-16170iEP91,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main47324-16180iEP95199601

47324BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

main90947-02608×2iEP91..GLZV199601-199606

main90947-02926×2iEP91..GLZV199606

47373BCLAMP, BRAKE TUBE, NO.3

main47371-10190iEP9#,NP90199601-199602

main47371-10200iEP9#,NP90199602

9011906642

main90119-06642

9011908868

main90119-08868

9046106221

main90461-06221

9046110738

main90461-10738

9046808035

main90468-08035

9094901207

main90949-01207

9151560645

main91515-60645

9165140616

main91651-40616

29 parts on this diagram · 4 diagrams in section
