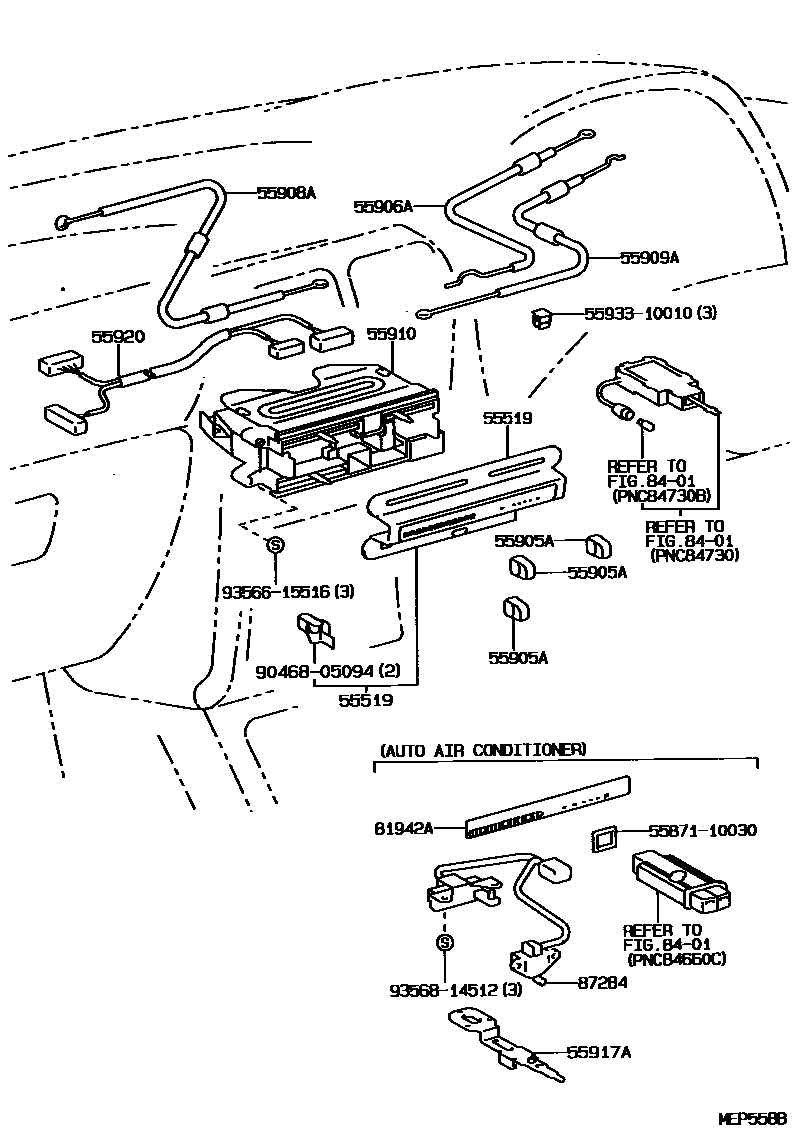

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER TYPE CONTROL 0002 1PUSH TYPE CONTROL 0003 1AIR DUCT 0004 1AUTO AIR CONDITIONER PARTS

55519PLATE, HEATER CONTROL NAME

main55519-10130iEP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X198912-199201

main55519-10150iEP8#..GI,S199405-199601

*AAC---*LHC

main55519-10200iEP8#..SOLL199201-199601

55905AKNOB, HEATER CONTROL

main55905-89115×4iEP8#,NP80..GI,S,SOL,SOLL; EP8#,NP80..GT,XLTD199405-199601

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-10170iEP8#,NP80..CAN,S,SOL,SOLL199201-199405

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-10090iEP8#,NP80..GI,S,SOL,SOLL199405-199601

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-10080iEP8#,NP80198912-199601

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-10310iEP8#,NP80..CAN,S,SOL,SOLL199201-199405

main55910-10350iEP8#..CANSI,GT,XLTD; EP82..X198912-199201

main55910-10390iEP8#..GI,XLTD199405-199601

*AAC---*PHC

main55910-10400iEP8#..GI,S199405-199601

*AAC---*LHC

55917ALEVER, TEMPERATURE DAMPER CONTROL

main55917-10060iEP82..3FC..X198912-199201

55920HARNESS ASSY, HEATER CONTROL SUB WIRE

main55920-10010iEP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X198912-199201

main55920-10050iEP8#..CANSI,GT,XLTD; EP82..X198912-199201

X-LIMITED

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-10020iNP80..4FC..XLTD; NP80..5F..XLTD;EP8#..GI,GT,XLTD199201-199405

main81942-10050iEP8#..CAN,S,SOLL199201-199601

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-10050iEP8#..GI,S199505-199601

*AAC---*LHC(DEALER OPT)

main88032-10080iEP82..X198912-199405

main88605-1M200iEP8#..GI,XLTD199405-199601

*AAC---*PHC

main88605-1M210iEP8#..GI,S199405-199601

5587110030PANEL, COWL VENTILATOR AIR DUCT

main55871-10030

5593310010GUIDE, LEVER, NO.2

main55933-10010

9046805094

main90468-05094

9356615516

main93566-15516

9356814512

main93568-14512

16 parts on this diagram · 4 diagrams in section
