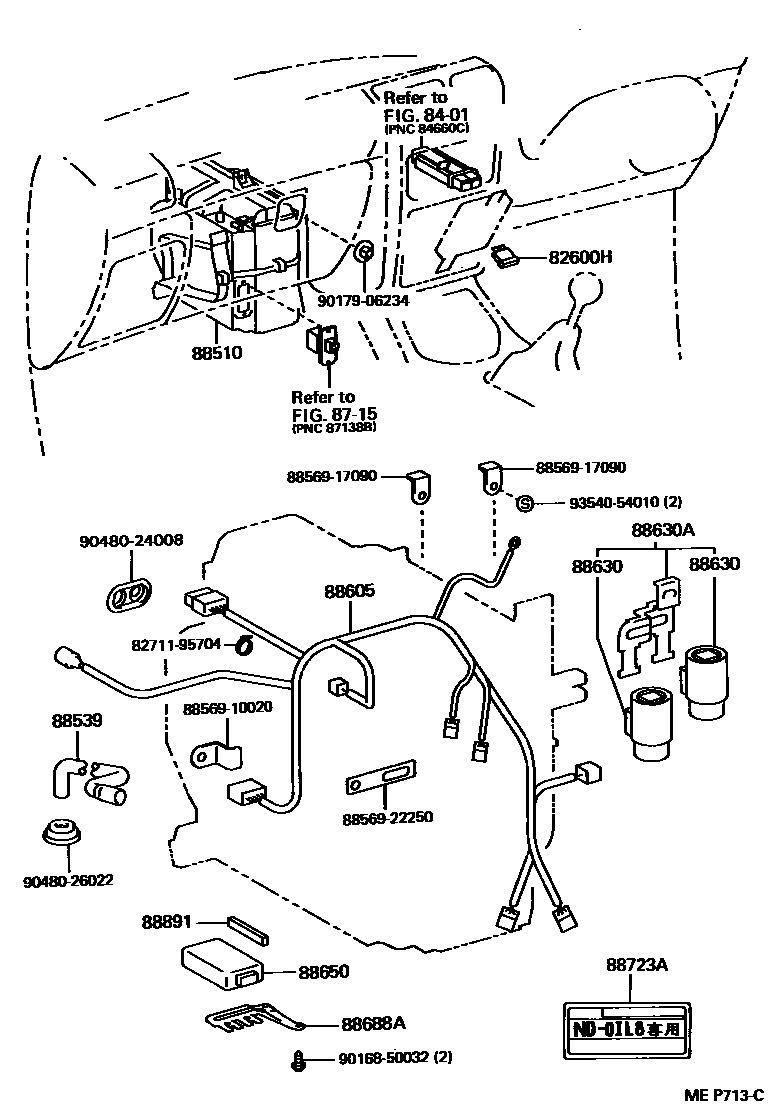

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82600HFUSE, FUSE BLOCK

main90982-09002iNP80..4FC..X; NP80..5F..SOL; NP80..5F..X198912-199201

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88510UNIT ASSY, COOLER

main88510-10240iNP80..X198912-199201

main88510-10480iEP82..3D..4F..SOLL; EP85;EP82..5D;EP82..3D..4F..SOL;EP82..3D..(3FC,4FC,5F); NP80..SOL199405-199505

main88510-10630iEP8#..S,SOLL; EP8#..XLTD; EP82..GI; EP82..SOL199506-199601

main88510-16480iEP8#; NP80..SOL; NP80..XLTD199312-199405

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-10090iEP8#198912-199505

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1C050iEP82..CAN,S,SOL; EP82..X198912-199201

main88605-1C060iEP82..S,X198912-199201

main88605-1C070iEP82..X198912-199201

main88605-1C080iEP8#..SOLL; EP82..CAN,S,SOL; EP82..X198912-199201

main88605-1C090iEP82..S,X198912-199201

main88605-1C100iEP82..X198912-199201

main88605-1C110iEP82..CANSI; EP82..GI,SI198912-199201

main88605-1C120iEP82..GI,SI198912-199201

main88605-1C130iEP82..CANSI198912-199201

main88605-1C140iEP82..CANSI; EP82..GI,SI198912-199201

main88605-1C150iEP82..GI,SI198912-199201

main88605-1C160iEP82..CANSI198912-199201

main88605-1C170iEP82..TBO198912-199201

main88605-1C180iEP82..TBO198912-199201

main88605-1C190iEP82..TBO198912-199201

main88605-1C200iEP82..TBO198912-199201

main88605-1C210iNP80198912-199201

main88605-1C220iNP80..X198912-199201

main88605-1C230iNP80198912-199201

main88605-1C240iNP80..X198912-199201

main88605-1C250iNP80198912-199201

main88605-1C260iNP80198912-199201

main88605-1C270iEP82..CAN,S,SOL,X198912-199201

main88605-1C280iEP8#..SOLL; EP82..CAN,S,SOL,X198912-199201

main88605-1C290iEP82..GI,SI198912-199201

main88605-1C300iEP82..GI,SI198912-199201

main88605-1C310iEP8#..XLTD;EP82..4FC..GI; EP82..3FC..SOL;EP82..3D..4F..SOL; EP82..5D..4F..SOL; EP82..5D..SOLL; EP82..5F..GI; EP82..CAN,S; EP85..S; EP85..SOLL;EP82..3D..SOLL199201-199312

main88605-1C350iEP82..3FC..SOL;EP82..3D..4F..SOL; EP82..5D..4F..SOL199201-199312

main88605-1C360iEP82..SOL199201-199312

main88605-1C370iEP8#..SOLL; EP82..SOL199201-199312

main88605-1C380iEP82..TBO199201-199312

main88605-1C390iNP80..5F..SOL; NP80..5F..XLTD199201-199306

main88605-1C391iNP80..5F..SOL; NP80..5F..XLTD199306-199312

main88605-1C400iNP80..5F..SOL199201-199306

main88605-1C401iNP80..5F..SOL199306-199312

main88605-1C410iNP80..5F..SOL199201-199306

main88605-1C411iNP80..5F..SOL199306-199312

main88605-1C420iNP80..5F..SOL199201-199306

main88605-1C421iNP80..5F..SOL199306-199312

main88605-1C430iNP80..4FC..SOL199201-199306

main88605-1C431iNP80..4FC..SOL199306-199312

main88605-1C440iNP80..4FC..SOL199201-199306

main88605-1C441iNP80..4FC..SOL199306-199312

main88605-1C450iEP8#..CAN,S,SOLL199201-199312

main88605-1C460iEP8#..GI,XLTD199201-199312

main88605-1C470iEP82..TBO199201-199312

main88605-1C480iNP80..4FC..SOL; NP80..4FC..XLTD199201-199306

main88605-1C481iNP80..4FC..SOL; NP80..4FC..XLTD199306-199312

main88605-1C490iEP85..5D199201

main88605-1C491iNP80..4FC..SOL199306-199312

main88605-1C500iNP80..5F..XLTD199201-199306

main88605-1C501iNP80..5F..XLTD199306-199312

main88605-1C510iNP80..4FC..XLTD199201-199306

main88605-1C511iNP80..4FC..XLTD199306-199312

main88605-1C560iEP8#..CAN,S; EP8#..GI,XLTD; EP8#..SOLL; EP82..SOL199312-199405

main88605-1C570iEP8#..CAN,S,SOLL199312-199405

main88605-1C580iEP8#..SOLL; EP82..SOL199312-199405

main88605-1C590iEP8#..GI,XLTD199312-199405

main88605-1C600iEP82..SOL199312-199405

main88605-1C610iEP82..SOL199312-199405

main88605-1C620iEP82..TBO199312-199405

main88605-1C630iEP82..TBO199312-199405

main88605-1C640iNP80..5F..SOL; NP80..5F..XLTD199312-199405

main88605-1C650iNP80..5F..SOL199312-199405

main88605-1C660iNP80..5F..XLTD199312-199405

main88605-1C670iNP80..5F..SOL199312-199405

main88605-1C680iNP80..5F..SOL199312-199405

main88605-1C690iNP80..4FC..SOL; NP80..4FC..XLTD199312-199405

main88605-1C700iNP80..4FC..SOL199312-199405

main88605-1C710iNP80..4FC..XLTD199312-199405

main88605-1C720iNP80..4FC..SOL199312-199405

main88605-1C730iNP80..4FC..SOL199312-199405

main88605-1C870iEP8#..GI,XLTD199405-199601

*AAC---*PHC

main88605-1C880iEP8#..GI,S199405-199601

main88605-1C890iEP8#..SOLL; EP82..3FC..SOL;EP82..3D..4F..SOL; EP82..5D..4F..SOL; EP82..S199506-199601

main88605-1M030iEP85..3D;EP82..GI,S,SOLL; EP85..5D..SOLL199505-199601

*AAC---*LHC; *AAC---*LHC(DEALER OPT)

main88605-1M040iEP82..5D..4F..SOLL;EP8#..(3FC,4FC,5F)..SOLL; EP82..SOL199405-199601

main88605-1M050iEP8#..GI,XLTD199405-199601

main88605-1M060iEP82..SOL199405-199601

main88605-1M070iEP82..SOL199405-199601

main88605-1M080iEP82..TBO199405-199601

main88605-1M090iEP82..TBO199405-199601

main88605-1M100iNP80..5F..SOL; NP80..5F..XLTD199405-199509

main88605-1M110iNP80..5F..SOL199405-199509

main88605-1M120iNP80..5F..XLTD199405-199509

main88605-1M130iNP80..5F..SOL199405-199509

main88605-1M140iNP80..5F..SOL199405-199509

main88605-1M150iNP80..4FC..SOL; NP80..4FC..XLTD199405-199509

main88605-1M160iNP80..4FC..SOL199405-199509

main88605-1M170iNP80..4FC..XLTD199405-199509

main88605-1M180iNP80..4FC..SOL199405-199509

main88605-1M190iNP80..4FC..SOL199405-199509

88630RELAY ASSY, COOLER

main88630-95702×4iEP82..5F..(EFI,TBO);EP8#..ATM..(CANSI,GI,GT,SI,X,XLTD); NP80..4FC..X; NP80..5F..X198912-199201

88630ARELAY ASSY, COOLER

main88630-10090iEP8#; NP80..SOL; NP80..X198912-199201

main88630-10100iEP8#..GT,XLTD;EP82..4FC..GI; EP82..5D..SOLL; EP82..5F..GI; EP82..CAN,S; EP85..S; EP85..SOLL;EP82..3D..SOLL199201-199312

main88630-10110iEP8#..3D..(3FC,4FC,5F)..SOLL; EP8#..XLTD; EP82..3D..4F..SOL;EP82..(3FC,4FC,5F)..(GT,SOL); EP82..5D..SOLL; EP82..GI; EP82..S; EP85..5D..SOLL; EP85..S;EP82..3D..4F..SOLL; NP80..SOL;EP82..5D..4F..SOL199505-199601

main88630-10150iNP80..XLTD199312-199509

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-10240iNP80198912-199201

main88650-10250iNP80198912-199201

main88650-10260iEP8#..SOLL,XLTD; EP82..CAN,CANSI,GI,GT,S,SI,SOL,X198912-199201

main88650-10270iEP82..CAN,CANSI,GI,GT,S,SI,SOL,X198912-199201

main88650-10350iNP80..5F199201-199405

main88650-10351iNP80..5F199405-199509

main88650-10360iNP80..4FC199201-199405

main88650-10361iNP80..4FC199405-199509

main88650-10410iEP8#..EFI199505-199601

main88650-16450iEP82..SOL199201-199601

main88650-16500iEP8#..SOLL199405-199505

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-10300iEP8#; NP80..SOL; NP80..X198912-199201

main88688-10330iNP80..SOL199405-199505

88723ALABEL, COOLER SERVICE CAUTION

main88723-16070×2iEP8#..ATM..EFI; EP8#..MTM..EFI199506-199601

88891PACKING (FOR COOLER)

main88578-10090iEP8#; NP80..SOL; NP80..X198912-199201

8271195704WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95704

8856910020CLAMP (FOR COOLER RELAY)

main88569-10020

8856917090CLAMP (FOR COOLER RELAY)

main88569-17090

8856922250CLAMP (FOR COOLER RELAY)

main88569-22250

9016850032

main90168-50032

9017906234

main90179-06234

9048024008

main90480-24008

9048026022

main90480-26022

9354054010

main93540-54010

21 parts on this diagram · 2 diagrams in section
