BATTERY & BATTERY CABLE

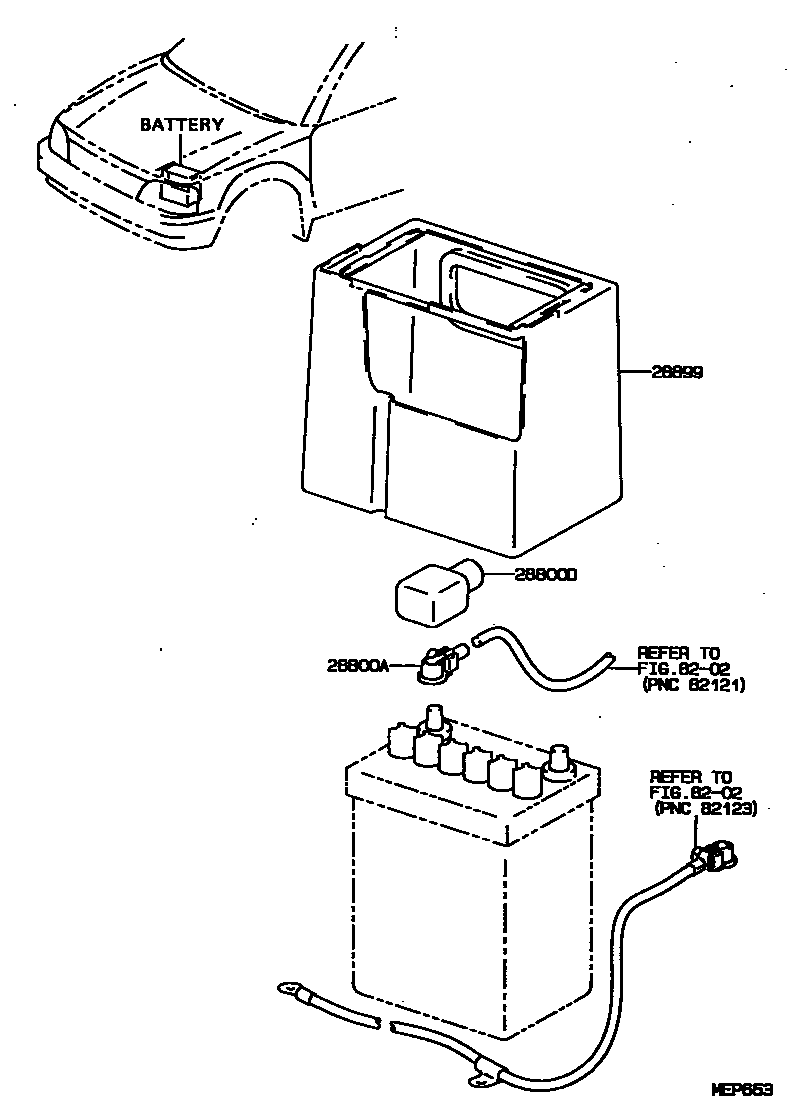

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i198912-199509

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-10020i198912-199601

main82821-16050i199201-199509

main82821-24010i198912-199201

28899INSULATOR, BATTERY

main28899-11030i198912-199601

main28899-11040i198912-199601

main28899-54010i198912-199107

main28899-55030i199107-199509

main28899-55040i199107-199509

main28899-74070i198912-199107

8202WIRING & CLAMP

→ Go to FIG 82-02

4 parts on this diagram · 1 diagram in section
