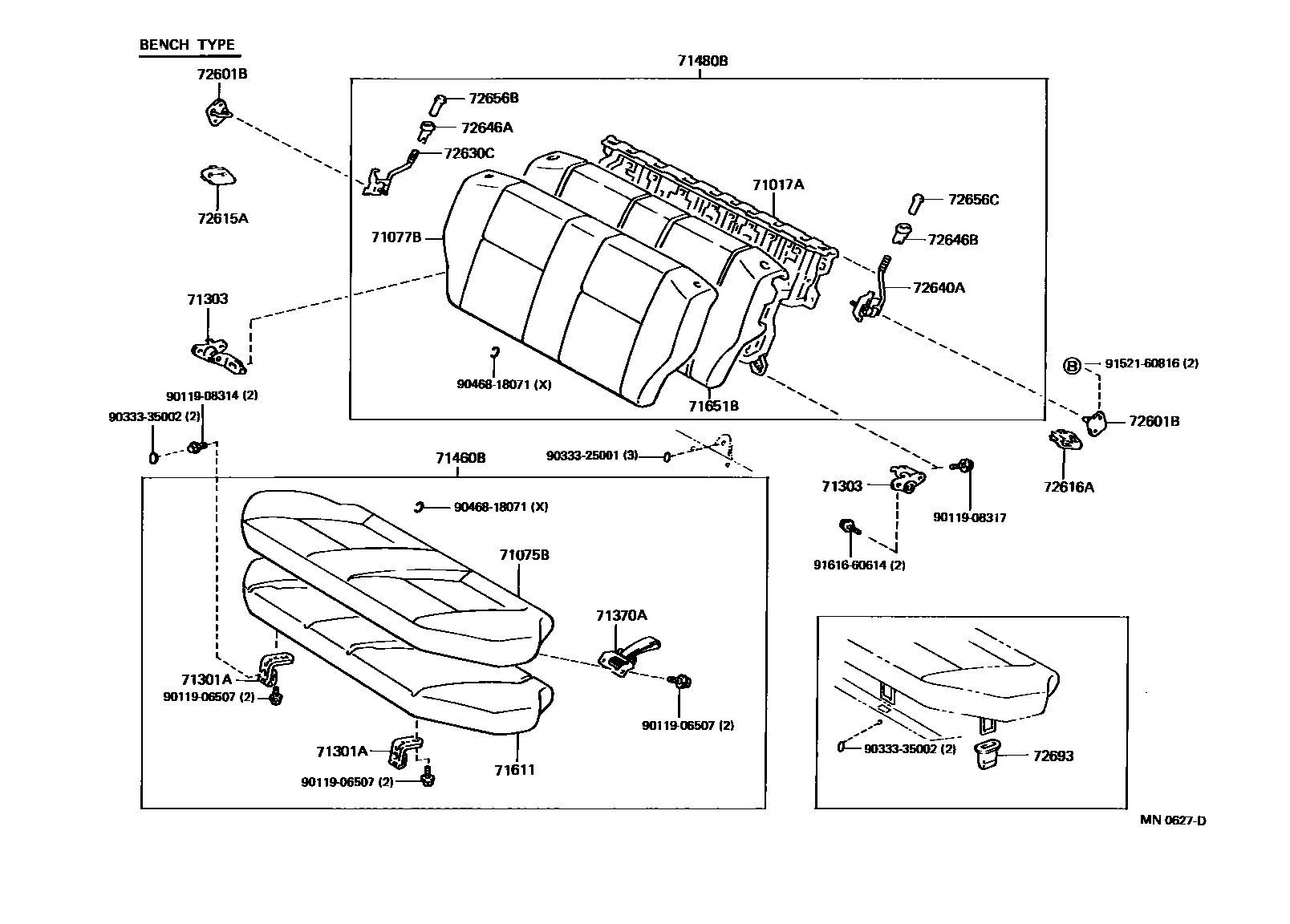

REAR SEAT & SEAT TRACK

0001 1 0002 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-10080iEP82..X198912-199201

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-10070iEP82..CBR;EP85,NP80..S,SOL,SOLL,X;EP82..(S,SOL,SOLL)..EFI198912-199601

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-10170-03iEP82..GI,GT198912-199108

main71065-10170-C0iEP82..TBO199201-199601

main71065-10180-03iEP82,NP80..SOL198912-199201

GRAY,TRIM1#

main71065-10190-03iEP82..SOLL198912-199201

GRAY,TRIM1#

main71065-10190-06iEP82..SOLL198912-199201

SABLE,TRIM4#

main71065-10200-03iEP82..CAN,CANSI,S,SI198912-199201

GRAY,TRIM1#

main71065-10200-04iEP82..S,SI198912-199201

BLUE,TRIM8#

main71065-10210-03iEP82,NP80..SOL198912-199201

main71065-10220-03iEP82..SOLL198912-199201

main71065-10220-06iEP82..SOLL198912-199201

main71065-10270-B0iEP82,NP80..SOL199201-199405

GRAY,TRIM1#

main71065-10280-03iEP82,NP80..X198912-199201

GRAY,TRIM1#

main71065-10280-06iEP82,NP80..X198912-199201

SABLE,TRIM4#

main71065-10290-03iEP82..CAN198912-199201

main71065-10300-03iEP82..GI198912-199201

GRAY,TRIM1#

main71065-10300-04iEP82..GI198912-199201

BLUE,TRIM8#

main71065-10310-03iEP82..GI; EP82..TBO198912-199201

main71065-10310-04iEP82..GI; EP82..TBO198912-199201

main71065-10320-03iEP85..SOLL199008-199201

GRAY,TRIM1#

main71065-10320-06iEP85..SOLL199008-199201

SABLE,TRIM4#

main71065-10330-03iEP85..XLTD199008-199201

GRAY,TRIM1#

main71065-10330-06iEP85..XLTD199008-199201

SABLE,TRIM4#

main71065-10340-B0iEP82,NP80..SOL199201-199405

main71065-10350-B0iEP82..SOLL199201-199405

GRAY,TRIM1#

main71065-10350-E0iEP82..SOLL199201-199405

OAK,TRIM4#

main71065-10360-B0iEP82..CAN,S199201-199405

GRAY,TRIM1#

main71065-10370-B0iEP82,NP80..XLTD199201-199405

GRAY,TRIM1#

main71065-10370-E0iEP82,NP80..XLTD199201-199405

OAK,TRIM4#

main71065-10380-C0iEP82..GI,GT199201-199405

BLACK,TRIM1#

main71065-10390-B0iEP85..SOLL199201-199405

GRAY,TRIM1#

main71065-10390-E0iEP85..SOLL199201-199405

OAK,TRIM4#

main71065-10400-B0iEP85..S199201-199405

GRAY,TRIM1#

main71065-10410-B0iEP85..XLTD199201-199405

GRAY,TRIM1#

main71065-10410-E0iEP85..XLTD199201-199405

OAK,TRIM4#

main71065-10450-J0iEP82..3D..SOLL199408-199504

main71065-10460-J0iEP85..3D..SOLL199408-199504

main71065-10480-J0iEP82..SOLL199110-199112

main71065-10490-J0iEP82..3D..SOLL199312-199403

main71065-10500-B0iEP82..SOLL199308-199311

main71065-10500-E0iEP82..SOLL199308-199311

main71065-10510-B0iEP85..SOLL199308-199311

main71065-10510-E0iEP85..SOLL199308-199311

main71065-10530-B0iEP82,NP80..SOL199405-199601

GRAY,TRIM1#

main71065-10540-B0iEP82,NP80..SOL199405-199601

main71065-10550-B0iEP82..SOLL199405-199601

GRAY,TRIM1#

main71065-10560-B0iEP82..S199405-199601

GRAY,TRIM1#

main71065-10570-B0iEP82,NP80..XLTD199405-199601

GRAY,TRIM1#

main71065-10580-C0iEP82..GI,GT199405-199601

BLACK,TRIM1#

main71065-10590-B0iEP85..SOLL199405-199601

GRAY,TRIM1#

main71065-10600-B0iEP85..S199405-199601

GRAY,TRIM1#

main71065-10610-B0iEP85..XLTD199405-199601

GRAY,TRIM1#

main71065-10680-J0iEP85..3D..SOLL199312-199403

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-1C390-03iEP82,NP80..SOL198912-199201

GRAY,TRIM1#

main71077-1C400-03iEP8#..SOLL198912-199201

GRAY,TRIM1#

main71077-1C400-06iEP8#..SOLL198912-199201

SABLE,TRIM4#

main71077-1C420-03iEP82..CAN,S198912-199201

GRAY,TRIM1#

main71077-1C420-04iEP82..S198912-199201

BLUE,TRIM8#

main71077-1C480-03iEP82,NP80..X198912-199201

GRAY,TRIM1#

main71077-1C480-06iEP82,NP80..X198912-199201

SABLE,TRIM4#

main71077-1C550-B0iEP82,NP80..SOL199201-199405

GRAY,TRIM1#

main71077-1C560-B0iEP8#..SOLL199201-199405

GRAY,TRIM1#

main71077-1C560-E0iEP8#..SOLL199201-199405

OAK,TRIM4#

main71077-1C570-B0iEP8#..S199201-199405

GRAY,TRIM1#

main71077-1C630-J0iEP8#..3D..SOLL199408-199504

main71077-1C670-J0iEP82..SOLL199110-199112

main71077-1C680-J0iEP8#..3D..SOLL199312-199403

main71077-1C690-B0iEP8#..SOLL199308-199311

main71077-1C690-E0iEP8#..SOLL199308-199311

main71077-1C700-B0iEP82,NP80..SOL199405-199601

GRAY,TRIM1#

main71077-1C710-B0iEP8#..SOLL199405-199601

GRAY,TRIM1#

main71077-1C720-B0iEP8#..S199405-199601

GRAY,TRIM1#

71301AHINGE SUB-ASSY, REAR SEAT CUSHION

main71301-10080iEP82..SOL..EFI;EP82,NP80..(CAN,SOL,SOLL)..(CBR,DSL)198912-199601

main71301-10090iEP82..SOL..EFI;EP82,NP80..(CAN,SOL,SOLL)..(CBR,DSL)198912-199601

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-10030×2iEP8#,NP80198912-199601

71370AHOLDER ASSY, REAR SEAT CUSHION

main71370-10010-03iEP82..SOL..EFI;EP82,NP80..(CAN,SOL,SOLL)..(CBR,DSL)198912-199601

GRAY,TRIM1#

main71370-10010-04iEP82..SOLL199110-199112

BLUE,TRIM8#

main71370-10010-06iEP82..SOLL198912-199201

SABLE,TRIM4#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-10140-03iEP82,NP80..SOL198912-199201

***,GRAY,TRIM1#

main71560-10150-03iEP82,NP80..SOL198912-199201

main71560-10160-03iEP82..SOLL198912-199201

***,GRAY,TRIM1#

main71560-10160-06iEP82..SOLL198912-199201

***,SABLE,TRIM4#

main71560-10170-03iEP82..SOLL198912-199201

main71560-10170-06iEP82..SOLL198912-199201

main71560-10180-03iEP82..CAN,CANSI,S,SI198912-199201

***,GRAY,TRIM1#

main71560-10180-04iEP82..S,SI198912-199201

***,BLUE,TRIM8#

main71560-10190-03iEP82..CAN198912-199201

main71560-10200-03iEP82,NP80..X198912-199201

***,GRAY,TRIM1#

main71560-10200-06iEP82,NP80..X198912-199201

***,SABLE,TRIM4#

main71560-10210-03iEP82..GI198912-199201

***,GRAY,TRIM1#

main71560-10210-04iEP82..GI198912-199201

***,BLUE,TRIM8#

main71560-10220-03iEP82..GI; EP82..TBO198912-199201

main71560-10220-04iEP82..GI; EP82..TBO198912-199201

main71560-10230-03iEP82..GI,GT198912-199108

main71560-10230-C0iEP82..GI,GT199108-199201

main71560-10290-B0iEP82,NP80..SOL199201-199405

***,GRAY,TRIM1#

main71560-10300-B0iEP82,NP80..SOL199201-199405

main71560-10310-B0iEP82..SOLL199201-199405

***,GRAY,TRIM1#

main71560-10310-E0iEP82..SOLL199201-199405

***,OAK,TRIM4#

main71560-10320-B0iEP82..CAN,S199201-199405

***,GRAY,TRIM1#

main71560-10340-03iEP85..SOLL199008-199201

***,GRAY,TRIM1#

main71560-10340-06iEP85..SOLL199008-199201

***,SABLE,TRIM4#

main71560-10350-03iEP85..XLTD199008-199201

***,GRAY,TRIM1#

main71560-10350-06iEP85..XLTD199008-199201

***,SABLE,TRIM4#

main71560-10360-B0iEP82,NP80..XLTD199201-199405

***,GRAY,TRIM1#

main71560-10360-E0iEP82,NP80..XLTD199201-199405

***,OAK,TRIM4#

main71560-10370-C0iEP82..GI,GT199201-199405

***,BLACK,TRIM1#

main71560-10380-B0iEP85..SOLL199201-199405

***,GRAY,TRIM1#

main71560-10380-E0iEP85..SOLL199201-199405

***,OAK,TRIM4#

main71560-10390-B0iEP85..S199201-199405

***,GRAY,TRIM1#

main71560-10400-B0iEP85..XLTD199201-199405

***,GRAY,TRIM1#

main71560-10400-E0iEP85..XLTD199201-199405

***,OAK,TRIM4#

main71560-10480-B0iEP82,NP80..SOL199405-199601

***,GRAY,TRIM1#

main71560-10490-B0iEP82,NP80..SOL199405-199601

main71560-10500-B0iEP82..SOLL199405-199601

***,GRAY,TRIM1#

main71560-10510-B0iEP82..S199405-199601

***,GRAY,TRIM1#

main71560-10520-B0iEP82,NP80..XLTD199405-199601

***,GRAY,TRIM1#

main71560-10530-C0iEP82..GI,GT199405-199601

***,BLACK,TRIM1#

main71560-10540-B0iEP85..SOLL199405-199601

***,GRAY,TRIM1#

main71560-10550-B0iEP85..S199405-199601

***,GRAY,TRIM1#

main71560-10560-B0iEP85..XLTD199405-199601

***,GRAY,TRIM1#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-1C370-03iEP82,NP80..SOL198912-199201

***,GRAY,TRIM1#

main71480-1C380-03iEP8#..SOLL198912-199201

***,GRAY,TRIM1#

main71480-1C380-06iEP8#..SOLL198912-199201

***,SABLE,TRIM4#

main71480-1C440-03iEP82..CAN,S198912-199201

***,GRAY,TRIM1#

main71480-1C440-04iEP82..S198912-199201

***,BLUE,TRIM8#

main71480-1C450-03iEP82,NP80..X198912-199201

***,GRAY,TRIM1#

main71480-1C450-06iEP82,NP80..X198912-199201

***,SABLE,TRIM4#

main71480-1C510-B0iEP82,NP80..SOL199201-199405

***,GRAY,TRIM1#

main71480-1C520-B0iEP8#..SOLL199201-199405

***,GRAY,TRIM1#

main71480-1C520-E0iEP8#..SOLL199201-199405

***,OAK,TRIM4#

main71480-1C530-B0iEP8#..S199201-199405

***,GRAY,TRIM1#

main71480-1C650-B0iEP82,NP80..SOL199405-199601

***,GRAY,TRIM1#

main71480-1C660-B0iEP8#..SOLL199405-199601

***,GRAY,TRIM1#

main71480-1C670-B0iEP8#..S199405-199601

***,GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71503-10020iEP82,NP80198912-199601

main71503-10030iEP82,NP80..CAN,SOL,SOLL198912-199201

main71503-10040iEP85199008-199601

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-10210iEP82..CBR;EP85,NP80..S,SOL,SOLL,X;EP82..(S,SOL,SOLL)..EFI198912-199601

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-10060×2iEP8#,NP80198912-199601

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-10020-03iEP85..S;EP85..CBR;EP85..5D..EFI199008-199405

GRAY,TRIM1#

main72615-10020-06iEP85199008-199201

SABLE,TRIM4#

main72615-10020-E0iEP85..SOLL,XLTD199201-199405

OAK,TRIM4#

72616ACOVER, REAR SEATBACK LOCK STRIKER, LH

main72616-10020-03iEP85199405-199601

GRAY,TRIM1#

main72616-10020-06iEP85199008-199201

SABLE,TRIM4#

main72616-10020-E0iEP85..SOLL,XLTD199201-199405

OAK,TRIM4#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-10080iEP8#,NP80198912-199601

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-10070iEP8#,NP80198912-199601

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-10010-03iEP8#,NP80198912-199601

GRAY,TRIM1#

main72646-10010-04iEP82..GI,GT,S,SI,SOLL199110-199112

BLUE,TRIM8#

main72646-10010-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main72646-10010-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

72646BGROMMET, REAR SEATBACK STOP BUTTON

main72646-10010-03iEP8#,NP80198912-199601

GRAY,TRIM1#

main72646-10010-04iEP82..GI,GT,S,SI,SOLL199110-199112

BLUE,TRIM8#

main72646-10010-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main72646-10010-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

72656BBUTTON, REAR SEATBACK STOP RELEASE

main72656-20010iEP8#,NP80199408-199601

main72656-20010-03iEP8#,NP80199201-199408

GRAY,TRIM1#

main72656-20010-23iEP8#,NP80198912-199201

GRAY,TRIM1#

main72656-20010-47iEP82..GI,GT,S,SI199112-199201

BLUE,TRIM8#

main72656-20010-58iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main72656-20010-E1iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

72656CBUTTON, REAR SEATBACK STOP RELEASE

main72656-20010iEP8#,NP80199408-199601

main72656-20010-03iEP8#,NP80199201-199408

GRAY,TRIM1#

main72656-20010-23iEP8#,NP80198912-199201

GRAY,TRIM1#

main72656-20010-47iEP82..GI,GT,S,SI,SOLL199110-199112

BLUE,TRIM8#

main72656-20010-58iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main72656-20010-E1iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-10010×4iEP8#,NP80198912-199601

9011906507

main90119-06507

9011908314

main90119-08314

9011908317

main90119-08317

9033325001

main90333-25001

9033335002

main90333-35002

9046818071

main90468-18071

9152160816

main91521-60816

9161660614

main91616-60614

29 parts on this diagram · 2 diagrams in section
