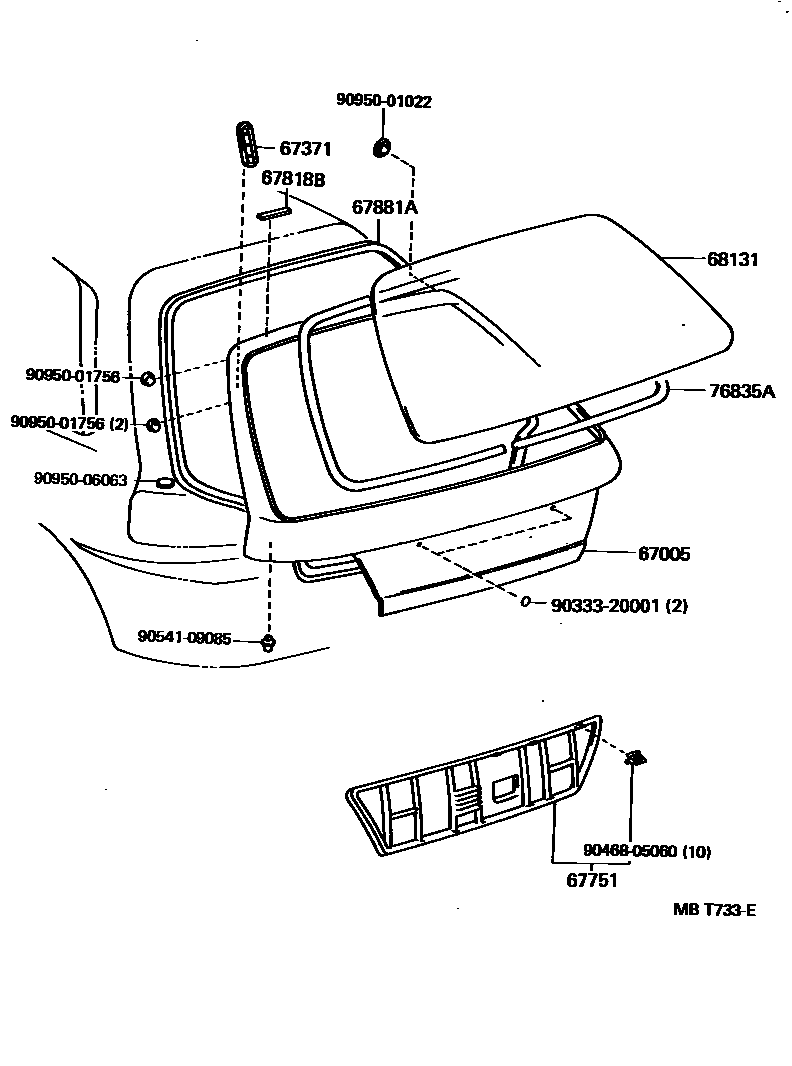

BACK DOOR PANEL & GLASS

0001 1 0002 1

67005PANEL SUB-ASSY, BACK DOOR

main67005-10830iEP82..GI,S,SI199002-199201

main67005-10890iEP82,NP80..SOL,SOLL199008-199201

main67005-10891iEP82,NP80..SOL199201-199212

main67005-10892iEP82,NP80..SOL199212-199405

main67005-1C020iEP82,NP80..SOL,SOLL; EP82..CAN;EP85..SOLL199008-199201

main67005-1C021iEP82,NP80..SOL199201-199212

main67005-1C022iEP82,NP80..SOL199212-199405

main67005-1C030iEP8#,NP80..CANSI,X,XLTD199008-199201

main67005-1C031iEP8#,NP80..CAN,XLTD199201-199405

main67005-1C070iEP82..SOL..EFI;EP82,NP80..(SOL,SOLL)..(CBR,DSL)198912-199212

main67005-1C071iEP82,NP80..SOL199212-199405

main67005-1C080iEP82..CAN;EP85..SOLL198912-199201

main67005-1C081iEP82,NP80..SOL199212-199405

main67005-1C090iEP82..S,SI199008-199201

main67005-1C100iEP8#,NP80..CANSI,X,XLTD199002-199201

main67005-1C101iEP8#,NP80..CAN,XLTD199201-199405

main67005-1C230iEP82..TBO198912-199109

main67005-1C290iEP82..TBO199109-199201

main67005-1C330iEP8#..S199201-199405

main67005-1C380iEP82..SOLL199201-199212

main67005-1C381iEP82..SOLL199212-199405

main67005-1C390iEP82..SOLL; EP85..SOLL199201-199212

main67005-1C391iEP82..SOLL; EP85..SOLL199212-199405

main67005-1C400iEP82..SOLL; EP85..SOLL199201-199212

main67005-1C401iEP82..SOLL; EP85..SOLL199212-199405

main67005-1C430iEP82..SOLL199201-199212

main67005-1C431iEP82..SOLL199212-199405

main67005-1C450iEP82..3D..SOLL199306-199307

main67005-1C490iEP8#,NP80..SOL,SOLL199405-199509

main67005-1C500iEP82..GI,GT199405-199601

main67005-1C510iEP8#,NP80..SOL,SOLL; EP8#,NP80..XLTD; EP8#..SOLL199405-199601

main67005-1C520iEP8#..S199405-199601

main67005-1C540iEP8#,NP80..SOL,SOLL199405-199601

main67005-1C560iEP8#..SOLL199509-199601

67371DUCT, BACK DOOR VENTILATOR

main67371-10010×4iEP8#,NP80198912-199601

main67371-10020×4iEP8#,NP80198912-199601

67751BOARD, BACK DOOR TRIM

main67751-10030-03iEP8#,NP80; EP8#..CAN,GI,GT,S199301-199405

GRAY,TRIM1#

main67751-10030-04iEP82..GI,GT,S,SI198912-199110

BLUE,TRIM8#

main67751-10030-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main67751-10030-E0iEP8#,NP80..SOL,SOLL,XLTD199201-199405

OAK,TRIM4#

main67751-10060-03iEP8#,NP80; EP82..CAN199201-199405

main67751-10060-04iEP82..S,SI199008-199110

main67751-10060-06iEP8#,NP80..SOLL,X,XLTD199008-199201

main67751-10060-E0iEP8#,NP80..SOL,SOLL,XLTD199201-199405

67818BSPACER, BACK WINDOW GLASS

main64818-10030×2iEP8#,NP80199012-199601

67881AWEATHERSTRIP, BACK DOOR

main67881-10070iEP8#,NP80198912-199601

68131GLASS, BACK DOOR

main68131-10350iEP82,NP80..SOL198912-199601

main68131-10370iEP8#,NP80..CANSI,XLTD; EP82..3D..SI;EP8#,NP80..CAN,GI,GT,S,SOLL,X198912-199405

main68131-10390iEP82..CANSI;EP85,NP80..XLTD;EP82..5D..(SI,XLTD)198912-199405

76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1

main76835-10010iEP8#,NP80198912-199109

main76835-10011iEP8#,NP80199109-199405

9033320001

main90333-20001

9046805060

main90468-05060

9054109085

main90541-09085

9095001022

main90950-01022

9095001756

main90950-01756

9095006063

main90950-06063

13 parts on this diagram · 2 diagrams in section
