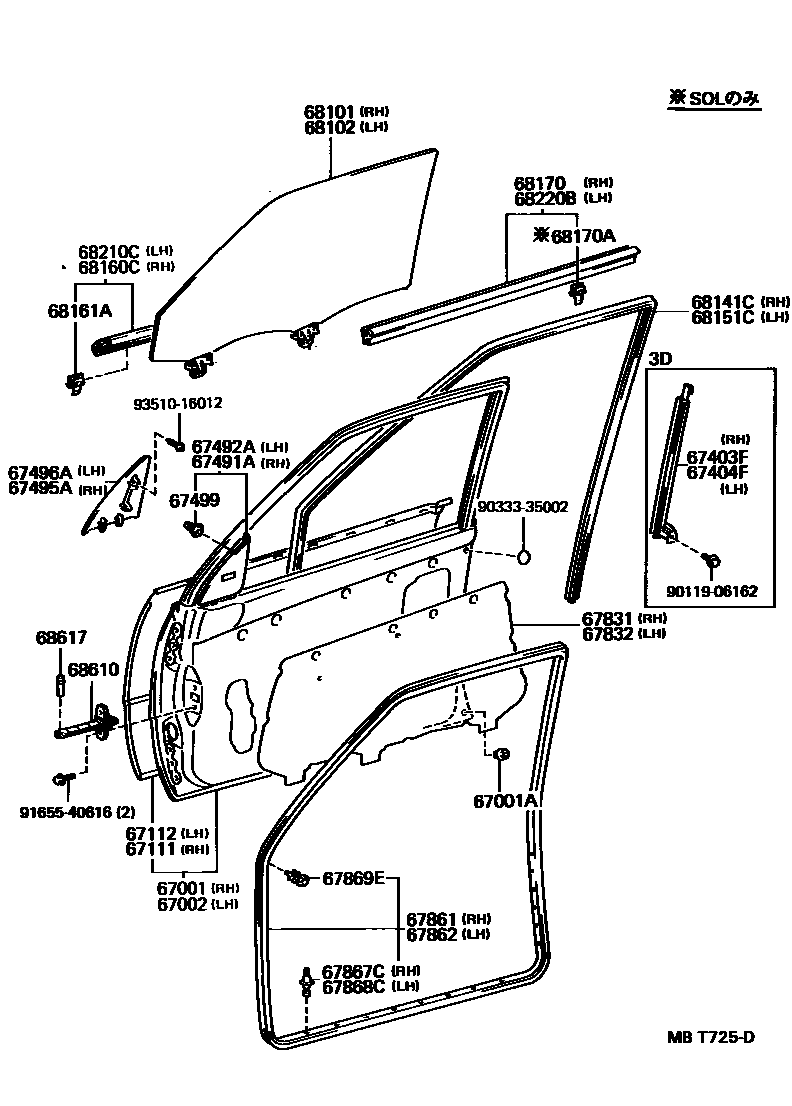

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-10380iEP82..3D..(CANSI,S,SI)198912-199001

main67001-10381iEP8#..3D..(CANSI,S,SI,XLTD)199001-199201

main67001-10382iEP8#,NP80..3D..(SOL,SOLL)199201-199509

main67001-10390iEP82..3D..(CAN,SOLL)198912-199001

main67001-10391iEP8#..3D..(CAN,SOLL)199001-199201

main67001-10392iEP8#..3D..SOLL199312-199403

main67001-10392iEP8#..3D..(S,SOL,SOLL)199201-199601

main67001-10392iEP8#..3D..SOLL199201-199405

main67001-10392iEP8#..3D..SOLL199405-199509

main67001-10420iEP82,NP80..5D..(SOL,SOLL)198912-199008

main67001-10421iEP8#,NP80..5D..(SOL,SOLL,X)198912-199201

main67001-10421iEP8#..5D..(SI,XLTD)198912-199201

main67001-10422iEP8#,NP80..5D..(SOL,SOLL)199201-199601

main67001-10430iEP82..5D..SOLL198912-199008

main67001-10431iEP82..X198912-199201

main67001-10431iEP8#..5D..(SI,XLTD)198912-199201

main67001-10431iEP8#..5D..(SI,XLTD)198912-199201

main67001-10431iEP8#..5D..SOLL199008-199201

main67001-10431iEP8#..5D..SOLL199008-199201

main67001-10432iEP8#..5D..SOLL199201-199601

main67001-10460iEP82..GI198912-199001

main67001-10461iEP82..GI199001-199201

main67001-10470iEP82..GI198912-199001

main67001-10471iEP82..GI199001-199201

main67001-10540iEP82..TBO198912-199001

main67001-10540iEP82..GI198912-199001

main67001-10541iEP82..TBO199001-199201

main67001-10541iEP82..GI199001-199201

main67001-10550iEP82..TBO198912-199001

main67001-10551iEP82..TBO199001-199201

main67001-10552iEP82..GI,GT199201-199601

main67001-10580iEP82..GI199505-199512

67001ACUSHION, FRONT DOOR PANEL

main90541-09064iEP8#,NP80198912-199601

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-10380iEP82,NP80..3D..(CAN,SOL,SOLL)198912-199001

main67002-10381iEP8#..3D..(CANSI,S,SI,XLTD)199001-199201

main67002-10382iEP8#,NP80..3D..(SOL,SOLL)199201-199509

main67002-10390iEP82..3D..(S,SI)198912-199001

main67002-10391iEP8#..3D..(CANSI,S,SI,XLTD)199001-199201

main67002-10392iEP8#..3D..SOLL199405-199509

main67002-10392iEP8#..3D..(S,SOL,SOLL)199201-199601

main67002-10392iEP8#..3D..SOLL199312-199403

main67002-10392iEP8#..3D..SOLL199201-199405

main67002-10420iEP82,NP80..5D..(SOL,SOLL)198912-199008

main67002-10421iEP8#,NP80..5D..(SOL,SOLL,X)198912-199201

main67002-10421iEP8#..5D..(SI,XLTD)198912-199201

main67002-10422iEP8#,NP80..5D..(SOL,SOLL)199201-199601

main67002-10430iEP82..5D..SOLL198912-199008

main67002-10431iEP82,NP80..X198912-199201

main67002-10431iEP82,NP80..X198912-199201

main67002-10431iEP8#..5D..SOLL199008-199201

main67002-10431iEP82..5D..3FC..SOLL198912-199008

main67002-10432iEP8#,NP80..XLTD199201-199601

main67002-10460iEP82..GI198912-199001

main67002-10461iEP82..GI199001-199201

main67002-10470iEP82..GI198912-199001

main67002-10471iEP82..GI199001-199201

main67002-10540iEP82..GI198912-199001

main67002-10540iEP82..TBO198912-199001

main67002-10541iEP82..TBO199001-199201

main67002-10541iEP82..TBO199001-199201

main67002-10550iEP82..GI198912-199001

main67002-10551iEP82..GI199001-199201

main67002-10552iEP82..GI,GT199201-199601

main67002-10580iEP82..GI199505-199512

67111PANEL, FRONT DOOR, OUTER RH

main67111-10250iEP82,NP80..3D..(CAN,CANSI,S,SI,SOL,SOLL)198912-199001

main67111-10251iEP8#,NP80..3D..(CAN,CANSI,S,SI,SOL,SOLL,XLTD)199001-199601

main67111-10290iEP8#,NP80..5D198912-199601

main67111-10310iEP82..GI198912-199001

main67111-10311iEP82..GI199001-199201

main67111-10311iEP82..GI199505-199512

main67111-10320iEP82..TBO198912-199001

main67111-10321iEP82..GI199001-199201

main67111-10321iEP82..GI,GT199201-199601

67112PANEL, FRONT DOOR, OUTER LH

main67112-10250iEP82,NP80..3D..(CAN,CANSI,S,SI,SOL,SOLL)198912-199001

main67112-10251iEP8#,NP80..3D..(CAN,CANSI,S,SI,SOL,SOLL,XLTD)199001-199601

main67112-10290iEP8#,NP80..5D198912-199601

main67112-10310iEP82..GI198912-199001

main67112-10311iEP82..GI199001-199201

main67112-10311iEP82..GI199505-199512

main67112-10320iEP82..GI198912-199001

main67112-10321iEP82..TBO199001-199201

main67112-10321iEP82..GI,GT199201-199601

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-10060iEP8#,NP80..3D198912-199601

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-10060iEP8#,NP80..3D198912-199601

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-10090iEP8#,NP80..3D198912-199601

main67491-10130iEP8#,NP80..5D198912-199601

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-10110iEP8#,NP80..3D198912-199601

main67492-10130iEP8#,NP80..5D198912-199601

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-10030iEP8#,NP80..3D198912-199601

main67495-10050iEP8#,NP80..5D198912-199601

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-10040iEP8#,NP80..3D198912-199601

main67496-10050iEP8#,NP80..5D198912-199601

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-32010iEP8#,NP80198912-199601

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-10130iEP8#,NP80..3D198912-199601

main67831-10140iEP8#,NP80..5D198912-199601

main67831-10150iEP8#..3D..(CAN,GI,GT,S,SOLL)199201-199601

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-10130iEP8#,NP80..3D198912-199601

main67831-10140iEP8#,NP80..5D198912-199601

main67832-10070iEP8#..3D..(CAN,GI,GT,S,SOLL)199201-199601

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-10160iEP82,NP80..5D198912-199002

main67861-10170iEP82,NP80..3D198912-199002

main67861-10180iEP8#,NP80..5D199002-199601

main67861-10190iEP8#,NP80..3D199002-199601

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-10160iEP82,NP80..5D198912-199002

main67862-10170iEP82,NP80..3D198912-199002

main67862-10180iEP8#,NP80..5D199002-199601

main67862-10190iEP8#,NP80..3D199002-199601

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-10010iEP8#,NP80..5D198912-199601

main67867-12150iEP8#,NP80..3D199410-199601

main67868-12050iEP8#,NP80..3D199008-199410

main67868-12080iEP82,NP80..3D198912-199008

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iEP8#,NP80..3D199410-199601

main67868-10010iEP8#,NP80..5D198912-199601

main67868-12050iEP82,NP80..3D198912-199410

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-12020iEP8#,NP80198912-199601

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-10220iEP8#..3D..(CANSI,XLTD)198912-199201

main68110-10220iEP85..3D..(S,SOLL);EP82,NP80..3D..(CBR,DSL,TBO);EP82..3D..(GI,S,SI,SOL,SOLL)..EFI198912-199601

main68110-10240iEP8#..3D..(CAN,GI,GT,S,SI,SOLL)198912-199201

main68110-10250iEP8#,NP80..5D..(SOL,SOLL,X)198912-199601

main68110-10250iEP8#,NP80..5D..XLTD199008-199405

main68110-10270iEP8#,NP80..5D..(SOLL,X)198912-199405

main68110-10300iEP82..5F..TBO;EP8#..3D..(CAN,GI,S,SI,SOLL)198912-199601

main68110-10300iEP82..5F..TBO;EP8#..3D..(CAN,GI,S,SI,SOLL)198912-199201

main68110-10300iEP82..CAN199201-199405

main68110-10320iEP82..4FC..TBO;EP8#..3D..(CANSI,XLTD)198912-199201

main68110-10320iEP82..5F..TBO;EP8#..3D..(CAN,GI,S,SI,SOLL)198912-199201

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-10230iEP8#..3D..(CANSI,XLTD)198912-199201

main68120-10230iEP85..3D..(S,SOLL);EP82,NP80..3D..(CBR,DSL,TBO);EP82..3D..(GI,S,SI,SOL,SOLL)..EFI198912-199601

main68120-10250iEP8#..3D..(CANSI,XLTD)198912-199201

main68120-10260iEP8#,NP80..5D..(SOL,SOLL,X)198912-199601

main68120-10260iEP8#,NP80..5D..XLTD199008-199405

main68120-10280iEP8#,NP80..5D..(SOLL,X)198912-199405

main68120-10310iEP82..5F..TBO;EP8#..3D..(CAN,GI,S,SI,SOLL)198912-199201

main68120-10310iEP82..5F..TBO;EP8#..3D..(CAN,GI,S,SI,SOLL)198912-199601

main68120-10310iEP82..CAN199201-199405

main68120-10330iEP82..5F..TBO;EP8#..3D..(CAN,GI,S,SI,SOLL)198912-199201

main68120-10330iEP82..4FC..TBO;EP8#..3D..(CANSI,XLTD)198912-199201

68141CRUN, FRONT DOOR GLASS, RH

main68141-10160iEP8#,NP80..3D198912-199201

main68141-10170iEP8#,NP80..5D198912-199201

main68141-10180iEP8#,NP80..3D199201-199601

main68141-10190iEP8#,NP80..5D199201-199601

68151CRUN, FRONT DOOR GLASS, LH

main68151-10010iEP8#,NP80..3D198912-199201

main68151-10020iEP8#,NP80..5D198912-199201

main68151-10030iEP8#,NP80..3D199201-199601

main68151-10040iEP8#,NP80..5D199201-199601

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-10130iEP82,NP80..3D198912-199001

main68160-10131iEP8#,NP80..3D199001-199601

main68160-10140iEP8#,NP80..5D198912-199601

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-10090iEP8#,NP80..5D198912-199405

main68212-10010iEP8#,NP80..3D198912-199601

main68212-10010iEP8#,NP80..5D199405-199601

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-10150iEP82,NP80..3D..SOL198912-199601

main68170-10160iEP82,NP80..5D..SOL198912-199601

main68171-10110iEP8#..3D..(CAN,CANSI,GI,GT,S,SI,SOLL,XLTD)198912-199601

main68171-10120iEP8#,NP80..5D..(SI,SOLL,X,XLTD)198912-199601

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10100iEP82,NP80..3D..SOL198912-199601

main68211-10100iEP82,NP80..3D..SOL199212-199601

main68212-10020iEP82,NP80..5D..SOL198912-199301

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-10110iEP82,NP80..3D198912-199001

main68210-10111iEP8#,NP80..3D199001-199601

main68210-10120iEP8#,NP80..5D198912-199601

68220BWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68172-10090iEP8#..3D..(CAN,CANSI,GI,GT,S,SI,SOLL,XLTD)198912-199601

main68172-10100iEP8#,NP80..5D..(SOLL,XLTD)198912-199601

main68220-10130iEP82,NP80..3D..SOL198912-199601

main68220-10140iEP82,NP80..5D..SOL198912-199601

68610CHECK ASSY, FRONT DOOR

main68610-10030iEP8#,NP80..5D198912-199201

main68610-10040iEP8#,NP80..3D198912-199201

main68610-10050iEP8#,NP80..5D199204-199601

main68610-10050iEP8#,NP80..5D199201-199204

main68610-10060iEP8#,NP80..3D199201-199204

main68610-10060iEP8#,NP80..3D199204-199601

main68620-10010iEP8#,NP80..5D199201-199204

main68620-10020iEP8#,NP80..3D199201-199204

68617PIN, FRONT DOOR CHECK

main68617-12030iEP8#,NP80198912-199601

9011906162

main90119-06162

9033335002

main90333-35002

9165540616

main91655-40616

9351016012

main93510-16012

35 parts on this diagram · 2 diagrams in section
