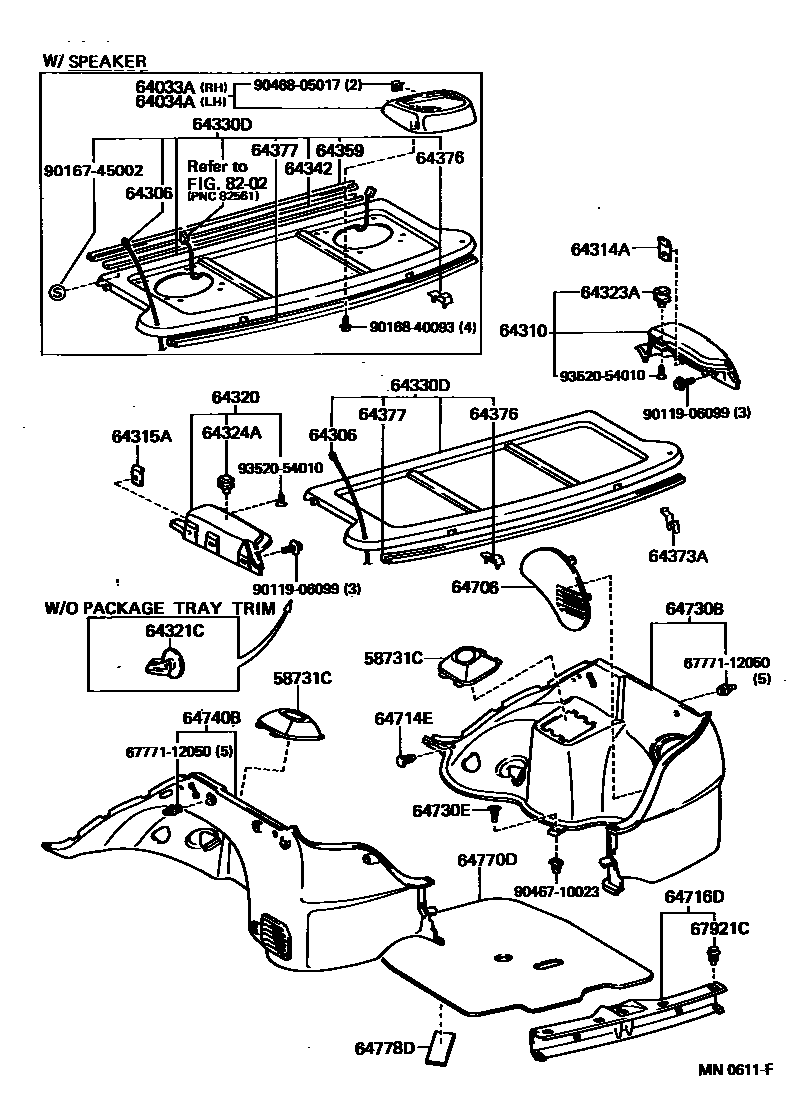

DECK BOARD & DECK TRIM COVER

58731CCAP, REAR ABSORBER

main58731-10040-03×2iEP82,NP80..5D;EP82..3D..(4FC,5F)199301-199405

GRAY,TRIM1#

main58731-10040-04×2iEP82..GI,GT,S,SI199112-199201

BLUE,TRIM8#

main58731-10040-06×2iEP82,NP80..SOLL,X198912-199201

SABLE,TRIM4#

main58731-10040-E0×2iEP82,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

main58731-10050-03iEP82..TBO; EP85199201-199601

main58731-10050-04iEP82..TBO198912-199201

main58731-10050-05iEP85199008-199201

main58731-10050-E0iEP85..SOLL,XLTD199201-199405

main58731-10060-B0×2iEP82..TBO199212-199601

main58732-10020-03iEP82..TBO; EP85199201-199601

main58732-10020-04iEP82..TBO198912-199201

main58732-10020-05iEP85199008-199201

main58732-10020-E0iEP85..SOLL,XLTD199201-199405

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-10020-03iEP8#..3D..(CANSI,GI,GT,S,SI,XLTD)198912-199201

GRAY,TRIM1#

main64033-10020-04iEP82..3D..(GI,GT,S,SI)198912-199201

BLUE,TRIM8#

main64033-10020-06iEP85..3D..XLTD199008-199201

SABLE,TRIM4#

main64033-10021-E0iEP8#..3D..SOLL199201-199405

OAK,TRIM4#

main64033-10021-P0iEP8#..3D..(GI,GT,S,SOLL)199405-199601

main64033-10030-B0iEP8#,NP80..5D..(SOLL,XLTD)199201-199601

GRAY,TRIM1#

main64033-10030-E0iEP8#,NP80..5D..(SOLL,XLTD)199201-199405

OAK,TRIM4#

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-10020-03iEP8#..3D..(CANSI,GI,GT,S,SI,XLTD)198912-199201

GRAY,TRIM1#

main64033-10020-04iEP82..3D..(GI,GT,S,SI)198912-199201

BLUE,TRIM8#

main64033-10020-06iEP85..3D..XLTD199008-199201

SABLE,TRIM4#

main64033-10021-E0iEP8#..3D..SOLL199201-199405

OAK,TRIM4#

main64033-10021-P0iEP8#..3D..(GI,GT,S,SOLL)199405-199601

main64033-10030-B0iEP8#,NP80..5D..(SOLL,XLTD)199201-199601

GRAY,TRIM1#

main64033-10030-E0iEP8#,NP80..5D..(SOLL,XLTD)199201-199405

OAK,TRIM4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-12030×2iEP8#,NP80..GI,GT,S,SOLL,XLTD199407-199601

64310BRACKET, PACKAGE TRAY TRIM, RH

main64310-10090-03iEP82,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X198912-199008

GRAY,TRIM1#

main64310-10090-04iEP82..GI,GT,S,SI198912-199008

BLUE,TRIM8#

main64310-10090-06iEP82,NP80..SOLL,X198912-199008

SABLE,TRIM4#

main64310-10110-03iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD199008-199201

GRAY,TRIM1#

main64310-10110-04iEP82..GI,GT,S,SI199008-199110

BLUE,TRIM8#

main64310-10110-06iEP8#,NP80..SOLL,X,XLTD199008-199201

SABLE,TRIM4#

main64310-10120-03iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD199008-199201

main64310-10120-04iEP82..GI,GT,S,SI199008-199110

main64310-10120-06iEP8#,NP80..SOLL,X,XLTD199008-199201

main64310-10130-B0iEP8#,NP80..CAN,GI,GT,S,SOLL,XLTD199201-199205

GRAY,TRIM1#

main64310-10130-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-10050×2iEP82..3D..SI;EP85..3D..(S,XLTD);EP82..(CAN,SOLL)..EFI;EP85..(SOLL,XLTD)..EFI;EP82,NP80..CANSI,GI,GT,S,XLTD199008-199601

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64314-10050×2iEP82..3D..SI;EP85..3D..(S,XLTD);EP82..(CAN,SOLL)..EFI;EP85..(SOLL,XLTD)..EFI;EP82,NP80..CANSI,GI,GT,S,XLTD199008-199601

64320BRACKET, PACKAGE TRAY TRIM, LH

main64320-10090-03iEP82,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X198912-199008

GRAY,TRIM1#

main64320-10090-04iEP82..GI,GT,S,SI198912-199008

BLUE,TRIM8#

main64320-10090-06iEP82,NP80..SOLL,X198912-199008

SABLE,TRIM4#

main64320-10110-03iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD199008-199201

GRAY,TRIM1#

main64320-10110-04iEP82..GI,GT,S,SI199112-199201

BLUE,TRIM8#

main64320-10110-06iEP8#,NP80..SOLL,X,XLTD199008-199201

SABLE,TRIM4#

main64320-10120-03iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD199008-199201

main64320-10120-04iEP82..GI,GT,S,SI,SOLL199110-199112

main64320-10120-06iEP8#,NP80..SOLL,X,XLTD199008-199201

main64320-10130-B0iEP8#,NP80..CAN,GI,GT,S,SOLL,XLTD199201-199205

GRAY,TRIM1#

main64320-10130-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

64321CCLIP(FOR PACKAGE TRIM SIDE)

main90467-06049-01×6iEP82,NP80..SOL199201-199209

BLACK,TRIM1#

main90467-06049-22×6iEP82,NP80..SOL199209-199405

BLACK,TRIM1#

main90467-06049-B0×6iEP82,NP80..SOL198912-199201

SHADOW GRAY,TRIM1#

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-10020iEP82,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X198912-199008

main64323-10030iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD199008-199205

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64324-10020iEP82,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X198912-199008

main64324-10030iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD199008-199205

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64303-10070-03iEP8#,NP80..CAN,CANSI,GT,S,SI,SOLL,X,XLTD; EP82..GI198912-199201

main64303-10070-04iEP82..GT,S,SI,SOLL199110-199112

BLUE,TRIM8#

main64303-10070-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main64303-10080-03iNP80..SOL199008-199009

SHADOW GRAY,TRIM1#

main64303-10080-04iEP82..S,SI,SOLL199110-199112

main64303-10080-06iEP8#,NP80..SOLL,X,XLTD199008-199201

main64303-10100-B0iEP8#;NP80..3D;NP80..XLTD;NP80..5D..5F..SOL; NP80..5D..4FC..SOL199205-199405

GRAY,TRIM1#

main64303-10100-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

main64303-10101-B0iEP82..GI,GT199405-199601

GRAY,TRIM1#

main64303-10110-B0iEP8#,NP80..CAN,SOLL,XLTD; NP80..5D..4FC..SOL199201-199405

main64303-10110-E1iEP8#,NP80..SOLL,XLTD199201-199405

main64303-10111-B0iNP80..5D..4FC..SOL199405-199509

main64303-10160-B0iNP80..3D;NP80..XLTD;NP80..5D..5F..SOL;EP8#..S,SOL,SOLL,XLTD; NP80..5D..4FC..SOL199405-199407

GRAY,TRIM1#

main64330-10180-03iEP8#..3D..(CANSI,GT,S,SI,XLTD); EP82..GI198912-199201

main64330-10180-04iEP82..3D..(GT,S,SI); EP82..GI198912-199201

main64330-10180-06iEP85..3D..XLTD199008-199201

main64330-10200-03iEP8#..3D..(CANSI,S,SI,XLTD)199008-199201

main64330-10200-04iEP82..3D..(S,SI)199008-199201

main64330-10200-06iEP85..3D..XLTD199008-199201

main64330-10210-B0iEP8#..3D..(CAN,GI,GT,S,SOLL)199201-199405

main64330-10210-E0iEP8#..3D..SOLL199201-199405

main64330-10211-B0iEP8#..3D..(GI,GT,S,SOLL)199405-199601

main64330-10220-B0iEP8#..3D..(CAN,SOLL)199201-199405

main64330-10220-E0iEP8#..3D..SOLL199201-199405

main64330-10221-B0iEP8#..3D..SOLL199405-199601

main64330-10230-B0iEP8#,NP80..5D..(SOLL,XLTD)199201-199405

main64330-10230-E0iEP8#,NP80..5D..(SOLL,XLTD)199201-199405

main64330-10231-B0iEP8#,NP80..GI,GT,S,SOLL,XLTD199405-199601

main64330-10240-B0iEP8#,NP80..5D..(SOLL,XLTD)199201-199405

main64330-10240-E0iEP8#,NP80..5D..(SOLL,XLTD)199201-199405

main64330-10241-B0iEP8#,NP80..SOLL,XLTD199405-199601

64342COVER, PACKAGE TRAY TRIM, UNDER

main64342-10020iEP8#..3D..(GI,GT,S,SOLL)199405-199601

main64342-10030iEP8#..3D..(CAN,SOLL)..EFI;EP8#..3D..(CANSI,GI,GT,S,SI,XLTD)199008-199405

main64342-19025iEP8#..3D..(GI,GT,S,SOLL)199408-199601

64359CUSHION, PACKAGE TRAY TRIM TO SEATBACK

main64359-10030iEP82..3D..SI;EP85..3D..(S,XLTD);EP82..(CAN,SOLL)..EFI;EP85..(SOLL,XLTD)..EFI;EP82,NP80..CANSI,GI,GT,S,XLTD198912-199601

64373ASTOPPER, PACKAGE TRAY TRIM

main64373-10060×2iEP82,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X198912-199008

main64373-10070×2iEP8#;NP80..3D;NP80..XLTD;NP80..5D..5F..SOL; NP80..5D..4FC..SOL199205-199407

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-10040iEP8#;NP80..3D;NP80..XLTD;NP80..5D..5F..SOL; NP80..5D..4FC..SOL199305-199405

64377CUSHION, PACKAGE TRAY TRIM

main64377-10020iEP8#..3D..(CANSI,S,SI,XLTD); EP82..GI,GT199008-199009

main64377-10030iEP8#,NP80..CAN,CANSI,S,SI,SOLL,X,XLTD199009-199201

main64377-10040iEP8#,NP80..CAN,SOLL,XLTD; NP80..5D..4FC..SOL199201-199405

64706COVER SUB-ASSY, QUARTER TRIM, JACK

main64766-10050-03iEP8#,NP80198912-199301

GRAY,TRIM1#

main64766-10050-04iEP82..GI,GT,S,SI198912-199110

BLUE,TRIM8#

main64766-10050-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main64766-10050-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-06055-01×2iEP8#,NP80..CAN,GI,GT,S,SOL; EP8#,NP80..SOLL,XLTD199201-199208

BLACK,TRIM1#; BLACK,TRIM1#,4#

main90467-06055-22×2iEP8#,NP80199405-199601

BLACK,TRIM1#

64716DCOVER, DECK TRIM, REAR

main64716-10040-03iEP8#,NP80; EP8#..CAN,GI,GT,S199301-199405

GRAY,TRIM1#

main64716-10040-04iEP82..GI,GT,S,SI198912-199110

BLUE,TRIM8#

main64716-10040-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main64716-10040-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-10010-03iEP82..3D..(CANSI,GT,S,SI); EP82..GI198912-199201

main64730-10010-04iEP82..3D..(GT,S,SI); EP82..GI198912-199201

main64730-10020-03iEP82,NP80..5D..(SOLL,XLTD)199201-199405

main64730-10020-E0iEP82,NP80..5D..(SOLL,XLTD)199201-199405

main64730-10030-03iEP85199008-199201

GRAY,TRIM1#

main64730-10030-06iEP85199008-199201

SABLE,TRIM4#

main64730-10040-03iEP82,NP80..CAN,CANSI,GT,S,SI,SOL,SOLL,X; EP82..GI198912-199201

main64730-10040-04iEP82..GT,S,SI199112-199201

BLUE,TRIM8#

main64730-10040-06iEP82,NP80..SOLL,X198912-199201

SABLE,TRIM4#

main64730-10050-03iEP82,NP80..5D199009-199201

main64730-10050-04iEP82..5D..EFI199009-199110

main64730-10050-06iEP82,NP80..5D..(SOLL,X)199009-199201

main64730-10050-E0iEP82,NP80..5D..(SOLL,XLTD)199201-199405

OAK,TRIM4#

main64730-10060-03iEP82,NP80..3D199212-199405

GRAY,TRIM1#

main64730-10060-04iEP82..3D..(GT,S,SI)199009-199110

main64730-10060-06iEP82..3D..SOLL199009-199201

main64730-10060-E0iEP82..3D..SOLL199201-199405

OAK,TRIM4#

main64730-10070-03iEP85199405-199601

GRAY,TRIM1#

main64730-10070-06iEP85..3D199008-199201

main64730-10070-E0iEP85..3D..SOLL199201-199405

OAK,TRIM4#

main64730-10080-03iEP85..3D..XLTD199008-199201

main64730-10080-06iEP85..3D..XLTD199008-199201

main64730-10090-03iEP85..3D..4FC..XLTD; EP85..3D..5F..XLTD; EP85..3D..SOLL199008-199201

main64730-10090-06iEP85..3D..4FC..XLTD; EP85..3D..5F..XLTD; EP85..3D..SOLL199008-199201

main64730-10090-E0iEP85..3D..SOLL199201-199405

main64730-10100-03iEP85..5D199201-199405

GRAY,TRIM1#

main64730-10100-06iEP85..5D199008-199201

main64730-10100-E0iEP85..5D199201-199405

OAK,TRIM4#

main64730-10110-03iEP82..3D..(4FC,5F); EP82..3D..SOLL199201-199405

main64730-10110-04iEP82..3D..5F..(GT,SI);EP82..3D..ATM..(GT,S,SI); EP82..5F..S; EP82..GI199009-199201

main64730-10110-E0iEP82..3D..SOLL199201-199405

main64730-10120-B0iEP85..5D199201-199405

main64730-10120-E0iEP85..5D199201-199405

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-07045-01×2iEP8#,NP80..SOLL,X,XLTD198912-199110

BLACK,TRIM1#,4#

main90467-07045-22×2iEP8#,NP80199405-199601

BLACK,TRIM1#

64740BBOARD, DECK TRIM SIDE, LH

main64740-10010-03iEP85199008-199201

GRAY,TRIM1#

main64740-10010-06iEP85199008-199201

SABLE,TRIM4#

main64740-10030-03iEP85..3D199008-199201

main64740-10030-06iEP85..3D199008-199201

main64740-10030-E0iEP85..3D..SOLL199201-199405

OAK,TRIM4#

main64740-10040-03iEP85..5D199201-199405

GRAY,TRIM1#

main64740-10040-06iEP85..5D199008-199201

main64740-10040-E0iEP85..5D199201-199405

OAK,TRIM4#

main64740-10050-03iEP82,NP80198912-199201

GRAY,TRIM1#

main64740-10050-04iEP82..GI,GT,S,SI198912-199110

BLUE,TRIM8#

main64740-10050-06iEP82,NP80..SOLL,X198912-199201

SABLE,TRIM4#

main64740-10060-03iEP82,NP80..5D199009-199201

main64740-10060-04iEP82..5D..(SI,SOLL)199110-199112

main64740-10060-06iEP82,NP80..5D..(SOLL,X)199009-199201

main64740-10060-E0iEP82,NP80..5D..(SOLL,XLTD)199201-199405

OAK,TRIM4#

main64740-10070-03iEP82..5F..S; NP80..3D;EP82..3D..(3FC,4F,4FC);EP82..3D..5F..(EFI,TBO)199009-199201

main64740-10070-04iEP82..3D..5F..(GI,GT,SI);EP82..3D..ATM..(GI,GT,S,SI)199009-199110

main64740-10070-06iEP82..3D..SOLL199009-199201

main64740-10070-E0iEP82..3D..SOLL199201-199405

OAK,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64770-10030iEP82,NP80198912-199201

main64770-10060iEP85199008-199601

main64770-10071iEP82,NP80199201-199601

main64770-10081iEP82..3D..4F..SOL;EP82..3D..(3FC,4F,4FC)..(GI,SOLL);EP82,NP80..(3FC,4FC,5F)..(GT,SOL,XLTD); EP82..5D..4F;EP82..3D..5F..EFI;EP82..4FC..(CAN,S);EP82..5D..3FC..SOLL199201-199601

main64771-10060iEP85199008-199601

64778DPROTECTOR, SPARE WHEEL

main64778-10020×2iEP85199008-199010

main64778-16020×4iEP85;EP82..CANSI,GI,GT,S,SI,X199010-199201

67921CRETAINER, DECK TRIM SIDE BOARD

main67921-95501×4iEP8#,NP80198912-199601

8202WIRING & CLAMP

→ Go to FIG 82-02

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

9011906099

main90119-06099

9016745002

main90167-45002

9016840093

main90168-40093

9046710023

main90467-10023

9046805017

main90468-05017

9352054010

main93520-54010

34 parts on this diagram · 1 diagram in section
