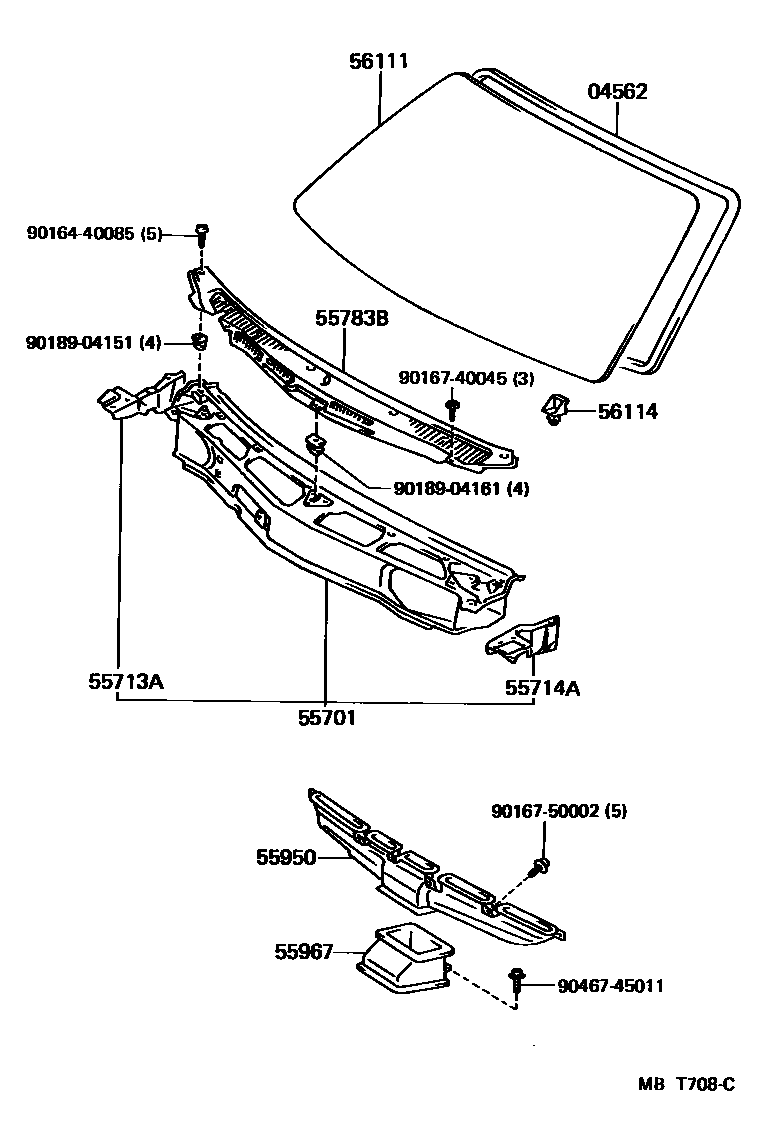

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iEP8#,NP80198912-199601

55701PANEL SUB-ASSY, COWL

main55700-10200iEP8#..EFI,TBO198912-199601

main55700-10250iNP80198912-199509

main55700-10260iEP8#..CBR198912-199201

55713APANEL, COWL TOP SIDE, RH

main55713-10050iEP8#,NP80198912-199601

55714APANEL, COWL TOP SIDE, LH

main55714-10040iEP8#,NP80198912-199601

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-10020iEP8#,NP80198912-199601

main55708-10030iEP8#,NP80198912-199601

55950NOZZLE ASSY, DEFROSTER

main55950-10050iEP8#,NP80198912-199601

55967NOZZLE, DEFROSTER, LOWER

main55967-10020iEP8#,NP80198912-199601

56111GLASS, WINDSHIELD

main56111-10290iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD198912-199201

main56111-10330iEP8#,NP80..CAN,GI,GT,S,SI,SOL,SOLL,X198912-199601

main56111-10350iEP8#,NP80..CAN,GI,GT,S,SI,SOLL,X198912-199201

56114RETAINER, WINDSHIELD GLASS

main56114-10010×2iEP8#,NP80198912-199601

9016440085

main90164-40085

9016740045

main90167-40045

9016750002

main90167-50002

9018904151

main90189-04151

9018904161

main90189-04161

9046745011

main90467-45011

15 parts on this diagram · 1 diagram in section
