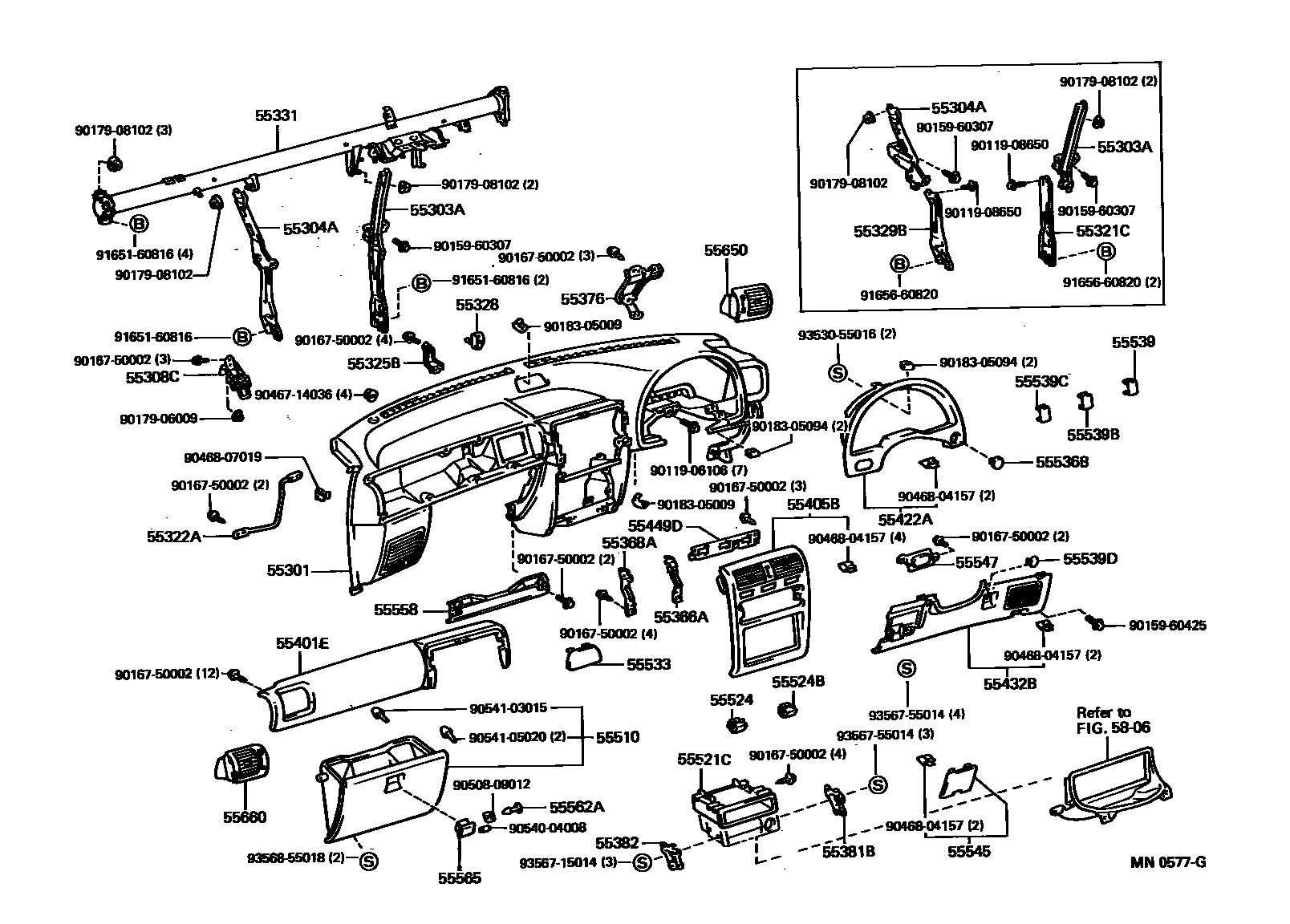

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55311-10180-03iEP8#,NP80198912-199601

GRAY,TRIM1#

main55311-10180-04iEP82..GI,GT,S,SI199112-199201

BLUE,TRIM8#

main55311-10180-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main55311-10180-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-10090iEP82..SOL198912-199601

main55303-10100iEP82..SOL198912-199201

main55309-10050iEP8#..CAN,GI,GT,S,SOLL,XLTD; EP82..SOL199201-199601

55304ASTAY SUB-ASSY, INSTRUMENT PANEL, CENTER

main55304-10050iEP82..SOL198912-199601

main55304-10060iNP80;EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD198912-199601

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-10070iEP8#,NP80198912-199601

55321CSTAY, INSTRUMENT PANEL, NO.5

main55321-10140iEP82..SOL198912-199201

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-10070iEP8#,NP80198912-199601

55325BBRACKET, INSTRUMENT PANEL, NO.5

main55325-10090iEP8#,NP80198912-199601

55328PIN, INSTRUMENT PANEL, NO.1

main55328-10030iEP8#,NP80198912-199601

55329BSTAY, INSTRUMENT PANEL, NO.4

main55329-10020iEP82..SOL198912-199201

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-10080iEP8#198912-199101

main55330-10100iEP85,NP80199101-199601

main55330-10110iEP82199201-199601

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-10030iEP8#,NP80198912-199601

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-10030iEP8#,NP80198912-199601

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-10020iEP8#,NP80198912-199601

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-10050iEP82..SOL; NP80;EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD198912-199601

55382BRACKET, FINISH PANEL MOUNTING, NO.2

main55382-10040iEP82..SOL; NP80;EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD198912-199601

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-10230-03iEP8#,NP80198912-199601

GRAY,TRIM1#

main55401-10230-04iEP82..GI,GT,S,SI198912-199110

BLUE,TRIM8#

main55401-10230-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main55401-10230-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-10300iEP8#,NP80198912-199601

55422APANEL, INSTRUMENT CLUSTER FINISH, LOWER

main55422-10090iEP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI198912-199601

main55422-10100iEP8#..CANSI,GI,GT,SI,XLTD; EP82..S,X198912-199201

main55422-10120iEP8#..CAN,GI,GT,S,XLTD199201-199601

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-10040-03iEP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI198912-199601

GRAY,TRIM1#

main55432-10040-04iEP82..S198912-199110

BLUE,TRIM8#

main55432-10040-06iEP8#,NP80..SOLL,X198912-199201

SABLE,TRIM4#

main55432-10040-E0iEP8#..SOLL;NP80..XLTD199201-199405

OAK,TRIM4#

main55432-10050-03iEP8#..CANSI,GI,GT,SI,XLTD; EP82..S,X198912-199201

main55432-10050-04iEP82..GI,GT,SI; EP82..S198912-199201

main55432-10050-06iEP85..XLTD199008-199201

SABLE,TRIM4#

main55432-10050-E0iEP8#..XLTD199201-199405

OAK,TRIM4#

55449DBASE, SWITCH

main55449-10070iEP8#,NP80198912-199601

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-10070-03iEP8#,NP80198912-199601

GRAY,TRIM1#

main55550-10070-04iEP82..GI,GT,S,SI,SOLL199110-199112

BLUE,TRIM8#

main55550-10070-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main55550-10070-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

55521CCOVER, STEREO OPENING

main55521-16030iEP8#,NP80..XLTD; EP8#..5D..SOLL; EP82..SOL; NP80;EP8#..CAN,GI,GT,S,SOLL,XLTD199201-199601

55524COVER, SWITCH BACE HOLE

main55524-10010iEP8#,NP80..CBR,DSL,EFI198912-199601

55524BCOVER, SWITCH BASE HOLE

main55524-10010iEP82,NP80..SOL198912-199601

55533COVER, AUTO CLOCK HOLE

main55533-10040-03iEP82,NP80..SOL198912-199601

GRAY,TRIM1#

55536BCOVER, LIGHT CONTROL SWITCH HOLE

main55536-10010iEP8#,NP80198912-199601

55539COVER, SPARE SWITCH HOLE

main55539-10040-03iEP85..CBR;EP8#..(CANSI,SI,SOL,SOLL)..EFI;EP82,NP80..(CAN,S,SOL,SOLL,X)..(CBR,DSL)198912-199405

GRAY,TRIM1#

main55539-10040-04iEP82..S,SI,SOLL199110-199112

BLUE,TRIM8#

main55539-10040-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main55539-10040-E0iEP8#..SOLL199201-199405

OAK,TRIM4#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-10040-03iEP8#,NP80198912-199601

GRAY,TRIM1#

main55539-10040-04iEP82..GI,GT,S,SI198912-199110

BLUE,TRIM8#

main55539-10040-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main55539-10040-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

55539CCOVER, SPARE SWITCH HOLE

main55539-10040-03iEP8#,NP80198912-199601

GRAY,TRIM1#

main55539-10040-04iEP82..GI,GT,S,SI198912-199110

BLUE,TRIM8#

main55539-10040-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main55539-10040-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

55539DCOVER, SPARE SWITCH HOLE

main55617-10010-11iEP8#,NP80..SOLL,X,XLTD; EP82,NP80..CAN,CANSI,SOL; EP82..GI,GT,S,SI198912-199201

BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM1#,8#

main55617-10010-23iEP8#,NP80..CAN,GI,GT,S,SOL; EP8#,NP80..SOLL,XLTD199201-199405

GRAY,TRIM1#; GRAY,TRIM1#,4#

55545COVER, FUSE BOX OPENING

main55545-10060-03iEP8#198912-199201

GRAY,TRIM1#

main55545-10060-04iEP82..GI,GT,S,SI199112-199201

BLUE,TRIM8#

main55545-10060-06iEP8#..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main55545-10070-03iNP80198912-199201

GRAY,TRIM1#

main55545-10070-06iNP80..X198912-199201

SABLE,TRIM4#

main55545-10120-B0iNP80199201-199509

GRAY,TRIM1#

main55545-10120-E0iNP80..XLTD199201-199405

OAK,TRIM4#

main55545-10180-B0iEP8#199201-199405

GRAY,TRIM1#

main55545-10180-E0iEP8#..SOLL,XLTD199201-199405

OAK,TRIM4#

main55545-10181-B0iEP8#199405-199601

GRAY,TRIM1#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-10030iEP8#,NP80198912-199601

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-10010iEP8#,NP80198912-199601

55562ALINK, GLOVE COMPARTMENT DOOR LOCK

main55562-10010×2iEP8#,NP80198912-199601

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-10010-03iEP8#,NP80198912-199601

SHADOW GRAY,TRIM1#

main55565-10010-04iEP82..GI,GT,S,SI,SOLL199110-199112

BLUE,TRIM8#

main55565-10010-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main55565-10010-E0iEP8#,NP80..SOLL,XLTD199201-199405

OAK,TRIM4#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-10110-03iEP8#,NP80198912-199209

GRAY,TRIM1#

main55650-10110-04iEP82..GI,GT,S,SI,SOLL199110-199112

BLUE,TRIM8#

main55650-10110-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main55650-10110-E0iEP8#,NP80..SOLL,XLTD199201-199209

OAK,TRIM4#

main55650-10111-E0iEP8#,NP80..SOLL,XLTD199209-199405

OAK,TRIM4#

main55650-10111-P0iEP8#,NP80199209-199601

GRAY,TRIM1#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-10040-03iEP8#,NP80198912-199209

GRAY,TRIM1#

main55660-10040-04iEP82..GI,GT,S,SI199112-199201

BLUE,TRIM8#

main55660-10040-06iEP8#,NP80..SOLL,X,XLTD198912-199201

SABLE,TRIM4#

main55660-10040-E0iEP8#,NP80..SOLL,XLTD199201-199209

OAK,TRIM4#

main55660-10041-E0iEP8#,NP80..SOLL,XLTD199209-199405

OAK,TRIM4#

main55660-10041-P0iEP8#,NP80199209-199601

GRAY,TRIM1#

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

9011906106

main90119-06106

9011908650

main90119-08650

9015960307

main90159-60307

9015960425

main90159-60425

9016750002

main90167-50002

9017906009

main90179-06009

9017908102

main90179-08102

9018305009

main90183-05009

9018305094

main90183-05094

9046714036

main90467-14036

9046804157

main90468-04157

9046807019

main90468-07019

9050809012

main90508-09012

9054004008

main90540-04008

9054103015

main90541-03015

9054105020

main90541-05020

9165160816

main91651-60816

9165660820

main91656-60820

9353055016

main93530-55016

9356715014

main93567-15014

9356755014

main93567-55014

9356855018

main93568-55018

60 parts on this diagram · 1 diagram in section
