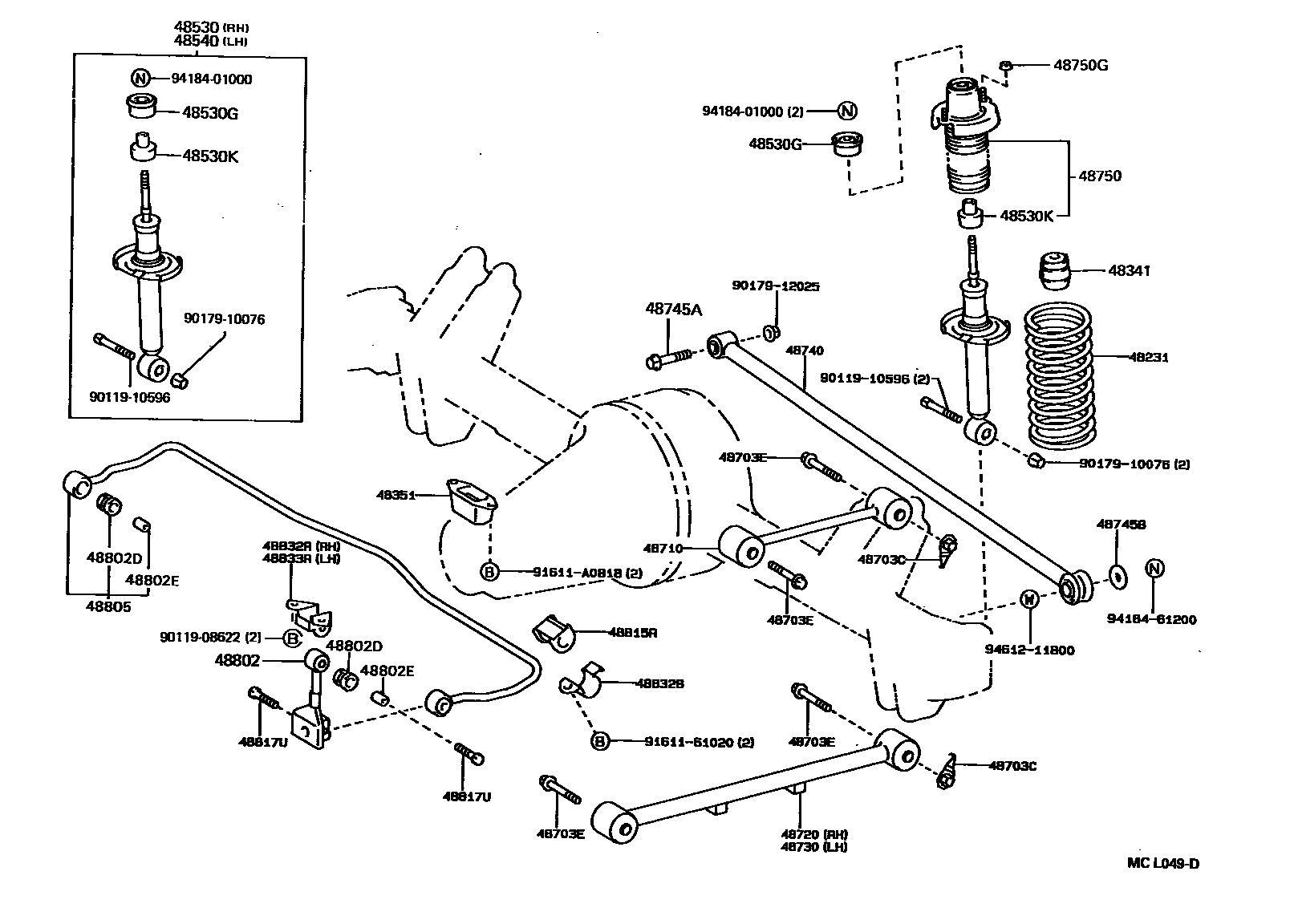

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
48341BUMPER, REAR SPRING
48351BUMPER, DIFFERENTIAL CARRIER
48530ABSORBER ASSY, SHOCK, REAR RH
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
48703CNUT(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48745BWASHER, LATERAL CONTROL ROD CUSHION
48750SUPPORT ASSY, REAR SUSPENSION
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48815RBUSH, STABILIZER(FOR REAR)
48817UBOLT(FOR REAR STABILIZER)
48832BBRACKET, REAR STABILIZER BAR, NO.2
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
9011908622
main90119-08622
9011910596
main90119-10596
9017910076
main90179-10076
9017912025
main90179-12025
9161161020
main91611-61020
91611A0818
main91611-A0818
9418401000
main94184-01000
9418461200
main94184-61200
9461211800
main94612-11800
36 parts on this diagram · 2 diagrams in section
