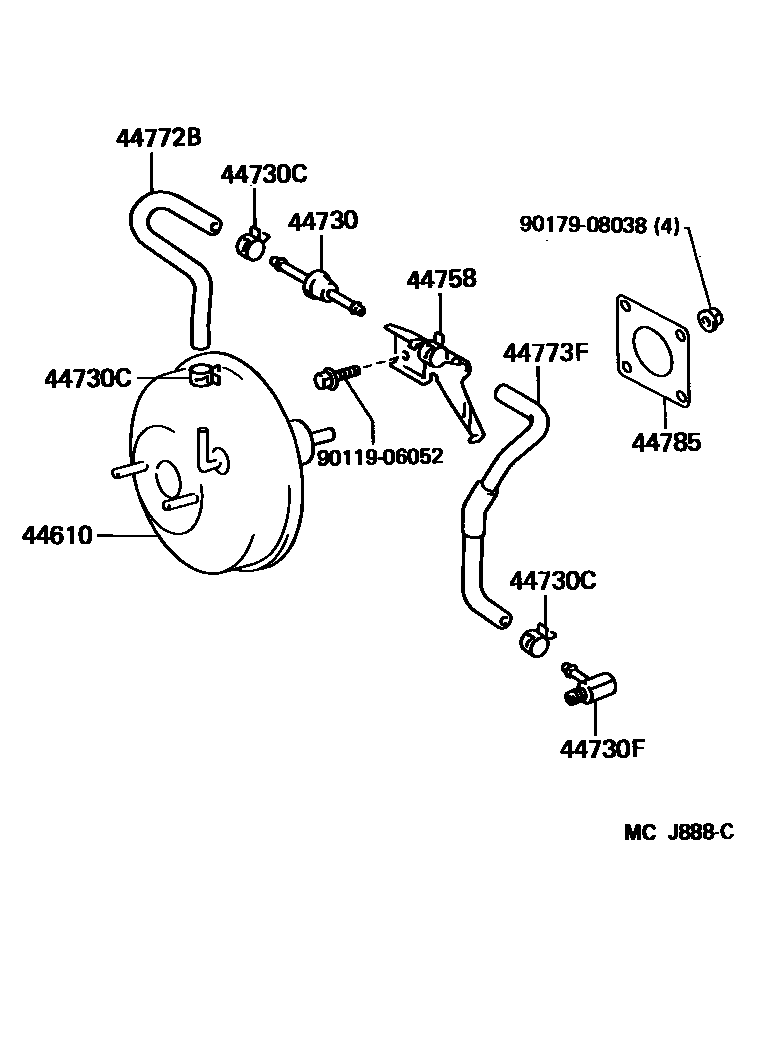

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-10150iEP82..MTM..CBR198912-199201

main44610-10160iEP82..MTM..EFI;EP82..ATM..(CBR,EFI)198912-199601

main44610-10170iNP80198912-199509

main44610-10190iEP82..CANSI,GI,GT,S,SI,X198912-199009

main44610-10240iEP82..TBO198912-199601

main44610-10280iNP80199201-199405

main44610-10290iNP80199405-199509

main44610-10340iEP85199008-199405

main44610-10350iEP85199008-199601

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iEP8#198912-199601

main44730-60040iNP80198912-199509

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×3iEP8#198912-199601

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90407-51002iEP8#..EFI,TBO198912-199601

main90407-51005iEP8#..CBR198912-199201

44758BRACKET, VACUUM CHECK VALVE

main44758-10080iEP8#198912-199601

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-10130iEP8#198912-199201

main44772-10190iEP8#199201-199601

44773FHOSE, UNION TO CHECK VALVE

main44773-10190iEP8#..CBR198912-199201

main44773-10200iEP8#..EFI,TBO198912-199601

main44773-10210iNP80198912-199201

main44773-10290iNP80199201-199509

44785GASKET, BRAKE BOOSTER

main44785-10020iEP8#,NP80198912-199601

9011906052

main90119-06052

9017908038

main90179-08038

10 parts on this diagram · 3 diagrams in section
