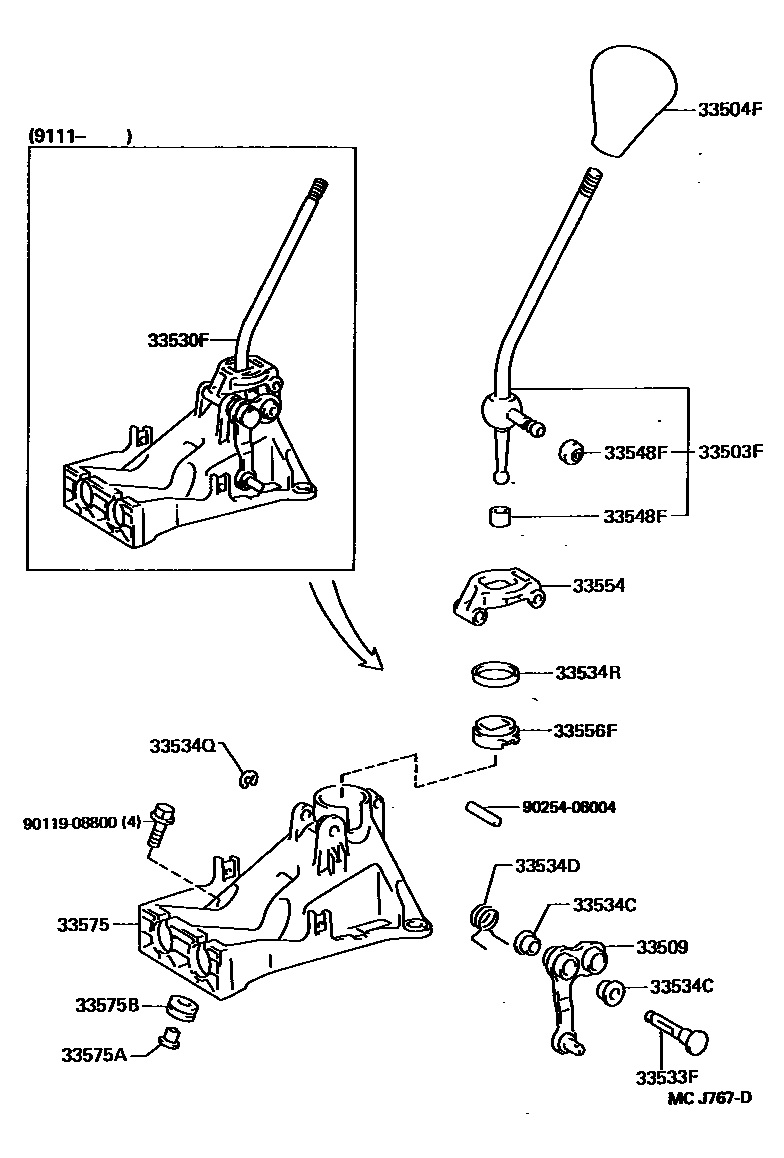

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-10140iEP8#,NP80..MTM198912-199601

main33503-10160iEP8#,NP80..4FC198912-199601

main33503-10170iEP82..3FC198912-199601

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10060iEP82..5F..TBO199412-199503

main33504-14040-33iEP82..5D..4F..SOLL199405-199601

GRAY,GRAY,TRIM1#

main33504-14040-36iEP82..4F..SOLL199008-199201

SABLE,TRIM4#

main33504-14040-64iEP82..4F..SOLL199110-199112

DARK BLUE,TRIM8#

main33504-14040-E0iEP82..4F..SOLL199201-199405

OAK,TRIM4#

main33504-14050-43iNP80..5F..SOL198912-199009

GRAY,TRIM1#

main33504-14050-B0iNP80..5F..SOL199009-199508

SHADOW GRAY,TRIM1#

main33504-14050-B1iNP80..5F..SOL199508-199509

DARK SMOKE GRAY,TRIM1#

main33504-24010-20iEP85..5D..5F..XLTD;EP82,NP80..5F..(CANSI,S,SI,X)198912-199009

GRAY,TRIM1#

main33504-24010-57iEP82..5F..(S,SI)198912-199110

DARK BLUE,TRIM8#

main33504-24010-59iEP8#,NP80..5F..(SOLL,X,XLTD)198912-199201

SABLE,TRIM4#

main33504-24010-B3iEP8#,NP80..5F..(CAN,CANSI,S,SI,SOLL,X,XLTD)199009-199601

SHADOW GRAY,TRIM1#

main33504-24010-E3iEP8#,NP80..5F..(SOLL,XLTD)199201-199405

OAK,TRIM4#

main33504-24010-W3iEP82..5F..(S,SI)199110-199201

DARK BLUE,TRIM8#

main33504-24020-11iEP82..5F..(GI,GT)199201-199601

NEW BLACK,TRIM1#

main33504-24020-33iEP82..5F..(GI,GT)198912-199201

SHADOW GRAY,TRIM1#

main33504-24020-34iEP82..5F..(GI,GT)198912-199201

DARK BLUE,TRIM8#

main33542-10030-03iEP82..3FC..CBR;EP82..5D..3FC..EFI;EP82..3D..3FC..SOL..EFI198912-199212

GRAY,TRIM1#

main33542-10030-04iEP82..3FC..(S,SOLL)199110-199112

BLUE,TRIM8#

main33542-10030-06iEP82..3FC..(SOLL,X)198912-199201

SABLE,TRIM4#

main33542-10030-E0iEP82..3FC..SOLL199201-199405

OAK,TRIM4#

main33542-20080-01iEP82..4FC..(GI,GT)199201-199208

BLACK,TRIM1#

main33542-20080-03iEP8#,NP80..4FC..(S,SOL,SOLL,XLTD)199405-199601

GRAY,TRIM1#

main33542-20080-06iEP85,NP80..4FC..(SOLL,X,XLTD)198912-199201

SABLE,TRIM4#

main33542-20080-34iEP82..4FC..(GI,GT,SI)198912-199201

DARK BLUE,TRIM8#

main33542-20080-C0iEP82..4FC..(GI,GT)199208-199601

BLACK,TRIM1#

main33542-20080-E0iEP8#,NP80..4FC..(SOLL,XLTD)199201-199405

OAK,TRIM4#

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-10030iEP8#,NP80..MTM198912-199601

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-10180iEP8#,NP80..MTM199111-199601

33533FSHAFT, BELLCRANK (FOR FLOOR SHIFT)

main33533-10010iEP8#,NP80..MTM198912-199601

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12038×2iEP8#,NP80..MTM198912-199601

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-23112iEP8#,NP80..MTM198912-199601

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00700iEP8#,NP80..MTM198912-199601

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-35001iEP8#,NP80..MTM198912-199601

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-10030×2iEP8#,NP80..MTM198912-199601

33554CAP, SHIFT LEVER

main33554-10040iEP8#,NP80..MTM198912-199601

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-10010iEP8#,NP80..MTM198912-199601

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-10080iEP8#,NP80..MTM198912-199601

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-08085×4iEP8#,NP80..MTM198912-199601

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-10029×4iEP8#,NP80..MTM198912-199601

9011908800

main90119-08800

9025406004

main90254-06004

17 parts on this diagram · 6 diagrams in section
