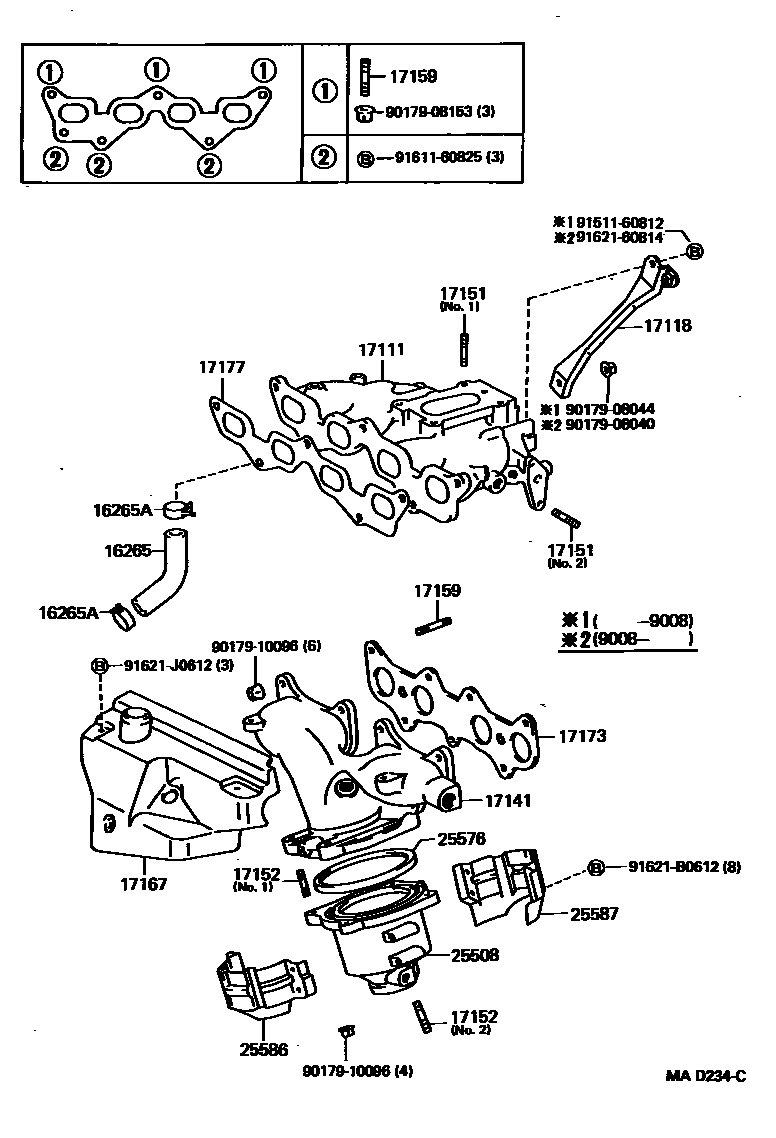

MANIFOLD
16265HOSE, INTAKE MANIFOLD WATER
16265ACLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17141MANIFOLD, EXHAUST
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
NO.2
NO.1
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
EXHAUST MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
25508CONVERTER SUB-ASSY, MANIFOLD
25576GASKET, MANIFOLD CONVERTER
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25587INSULATOR, MANIFOLD CONVERTER, NO.2
9017908040
main90179-08040
9017908044
main90179-08044
9017908153
main90179-08153
9017910096
main90179-10096
9151160812
main91511-60812
9161160825
main91611-60825
9162160814
main91621-60814
91621B0612
main91621-B0612
91621J0612
main91621-J0612
24 parts on this diagram · 6 diagrams in section
