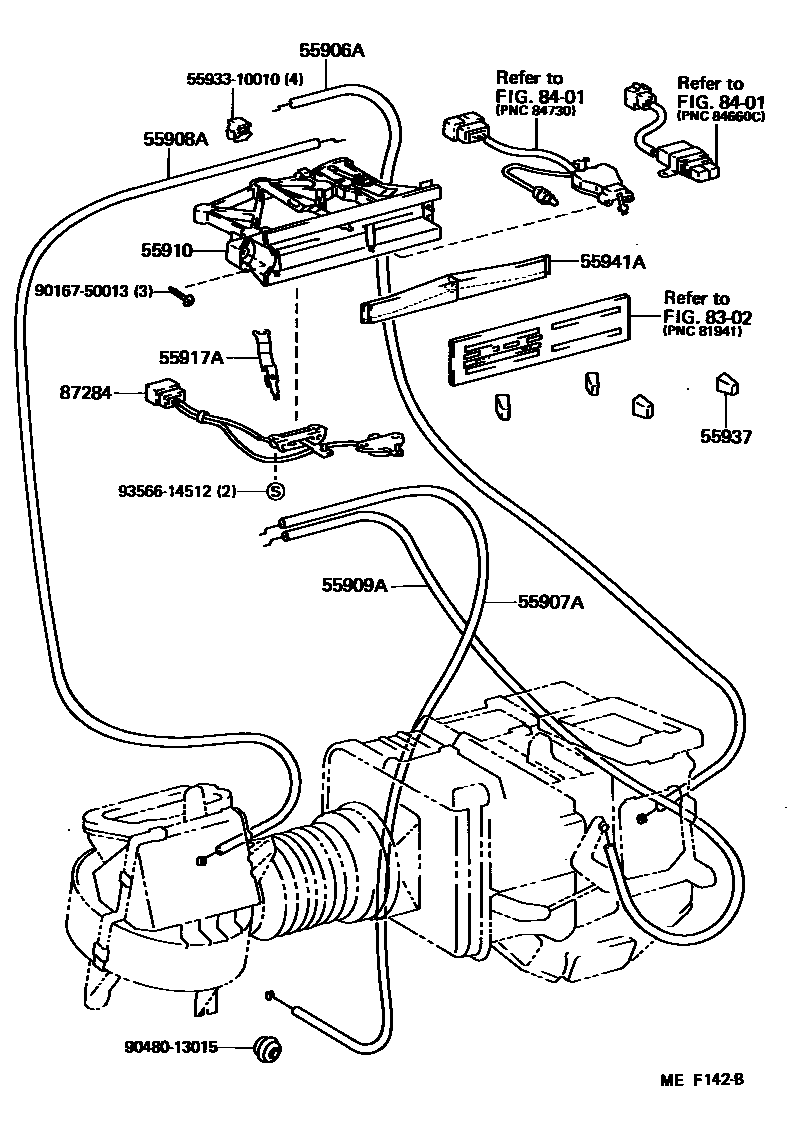

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-10150iEP7#,NP7#198410-198912

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-10080iEP7#,NP7#198410-198912

main55907-10100iEP71,NP70..SE,SI198410-198912

W/*AAC

main55907-10110iEP71..TBS198601-198912

W/*AAC

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-10070iEP7#,NP7#198410-198912

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-10060iEP7#,NP7#198410-198912

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-10250iEP7#,NP7#198410-198912

55917ALEVER, TEMPERATURE DAMPER CONTROL

main55917-10050iEP71,NP70..SE,SI,TBS198410-198912

55937KNOB, HEATER CONTROL LEVER

main55905-10110×4iEP7#..CBR198410-198912

main55905-10120×4iEP71..EFI,TBO198410-198912

55941AGUIDE, HEATER CONTROL

main55941-10010iEP7#,NP7#198410-198912

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-10030iEP71,NP70..SE,SI,TBS198410-198912

5593310010GUIDE, LEVER, NO.2

main55933-10010

9016750013

main90167-50013

9048013015

main90480-13015

9356614512

main93566-14512

15 parts on this diagram · 3 diagrams in section
