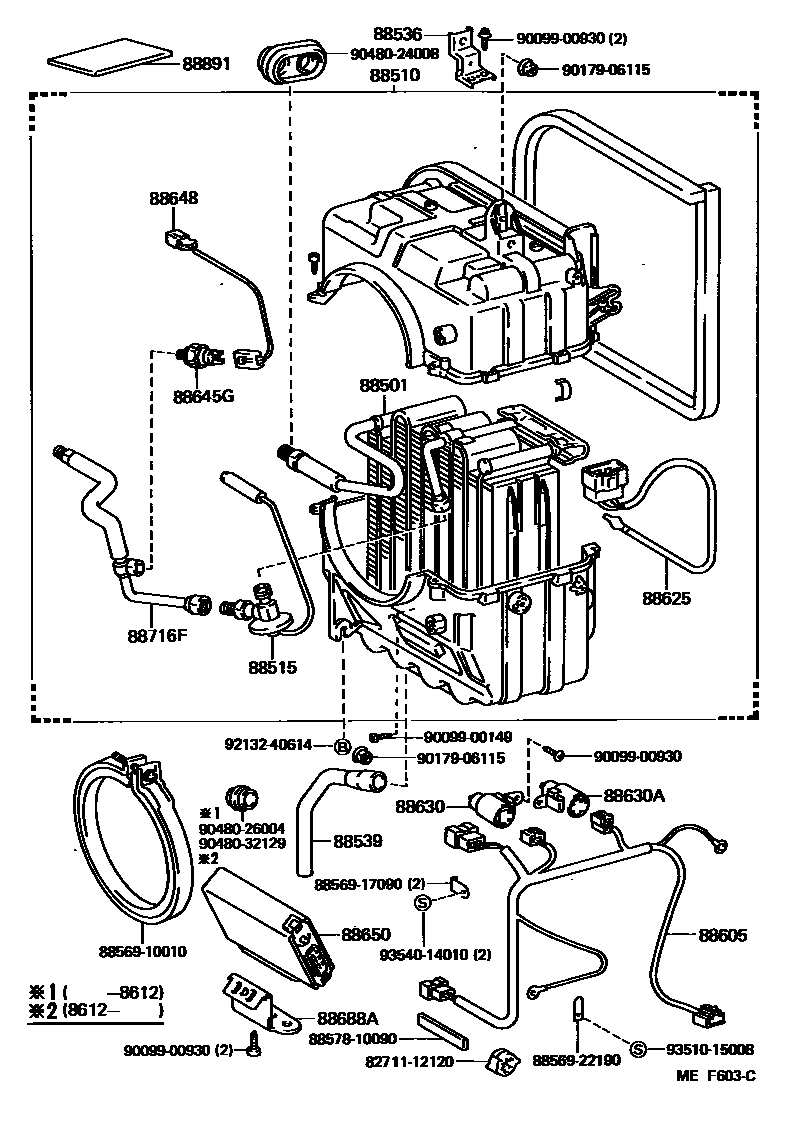

HEATING & AIR CONDITIONING - COOLER UNIT
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88536BRACKET, COOLING UNIT, NO.1
88539HOSE, COOLER UNIT DRAIN, NO.1
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
COOLER SW=A/C & ECONOMY
COOLER SW=A/C & ECONOMY
W/PS,COOLER SW=A/C & ECONOMY
W/PS,COOLER SW=A/C & ECONOMY
COOLER SW=A/C & ECONOMY
COOLER SW=A/C & ECONOMY
COOLER SW=A/C & ECONOMY
COOLER SW=A/C & ECONOMY
W/*AAC
*COS,W/*AAC
W/*AAC & PS
W/*AAC & PS
W/*AAC & PS
W/*AAC
W/*AAC
W/*AAC
COOLER SW=A/C
COOLER SW=A/C
W/PS,COOLER SW=A/C
W/PS,COOLER SW=A/C
COOLER SW=A/C
COOLER SW=A/C
COOLER SW=A/C
COOLER SW=A/C
COOLER SW=A/C & ECONOMY
W/PS,COOLER SW=A/C & ECONOMY
W/PS,COOLER SW=A/C & ECONOMY
W/*AAC
W/*AAC & PS
W/*AAC & PS
COOLER SW=A/C
W/PS,COOLER SW=A/C
W/PS,COOLER SW=A/C
COOLER SW=A/C & ECONOMY
W/PS,COOLER SW=A/C & ECONOMY
W/PS,COOLER SW=A/C & ECONOMY
W/*AAC
W/*AAC & PS
W/*AAC & PS
COOLER SW=A/C
W/PS,COOLER SW=A/C
W/PS,COOLER SW=A/C
W/PS,COOLER SW=A/C & ECONOMY
W/*AAC & PS
W/PS,COOLER SW=A/C
COOLER SW=A/C & ECONOMY
COOLER SW=A/C & ECONOMY
COOLER SW=A/C
COOLER SW=A/C
W/PS,COOLER SW=A/C & ECONOMY
W/PS,COOLER SW=A/C & ECONOMY
W/*AAC & PS
W/*AAC & PS
W/PS,COOLER SW=A/C
W/PS,COOLER SW=A/C
88625THERMISTOR, COOLER, NO.1
88630RELAY ASSY, COOLER
88630ARELAY ASSY, COOLER
ECONOMY COOLER
W/*AAC,NO.1 & NO.2
W/*AAC,NO.2
88648WIRING, COOLER, NO.1
88650AMPLIFIER ASSY, COOLER STABILIZER
COOLER SW=A/C & ECONOMY
COOLER SW=A/C
COOLER SW=A/C & ECONOMY
*COS,W/PS,COOLER SW=A/C & ECON
W/PS,COOLER SW=A/C & ECONOMY
W/*AAC
COOLER SW=A/C
*COS,W/PS,COOLER SW=A/C
W/PS,COOLER SW=A/C
COOLER SW=A/C & ECONOMY OR W/*AAC
COOLER SW=A/C
W/PS,COOLER SW=A/C & ECONOMY
W/PS,COOLER SW=A/C & ECONOMY
W/PS,COOLER SW=A/C
W/PS,COOLER SW=A/C
COOLER SW=A/C & ECONOMY
W/PS,COOLER SW=A/C & ECONOMY
COOLER SW=A/C
W/PS,COOLER SW=A/C
88688ABRACKET, COOLER STABILIZER AMPLIFIER
W/POWER STEERING
W/*AAC
W/POWER STEERING
88716FPIPE, COOLER REFRIGERANT LIQUID, F
88891PACKING (FOR COOLER)
8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12120
8856910010CLAMP (FOR COOLER RELAY)
main88569-10010
8856917090CLAMP (FOR COOLER RELAY)
main88569-17090
8856922190CLAMP (FOR COOLER RELAY)
main88569-22190
8857810090PAKING, COOLER AIR DUCT
main88578-10090
9009900149
main90099-00149
9009900930
main90099-00930
9017906115
main90179-06115
9048024008
main90480-24008
9048026004
main90480-26004
9048032129
main90480-32129
9213240614
main92132-40614
9351015008
main93510-15008
9354014010
main93540-14010
29 parts on this diagram · 2 diagrams in section
