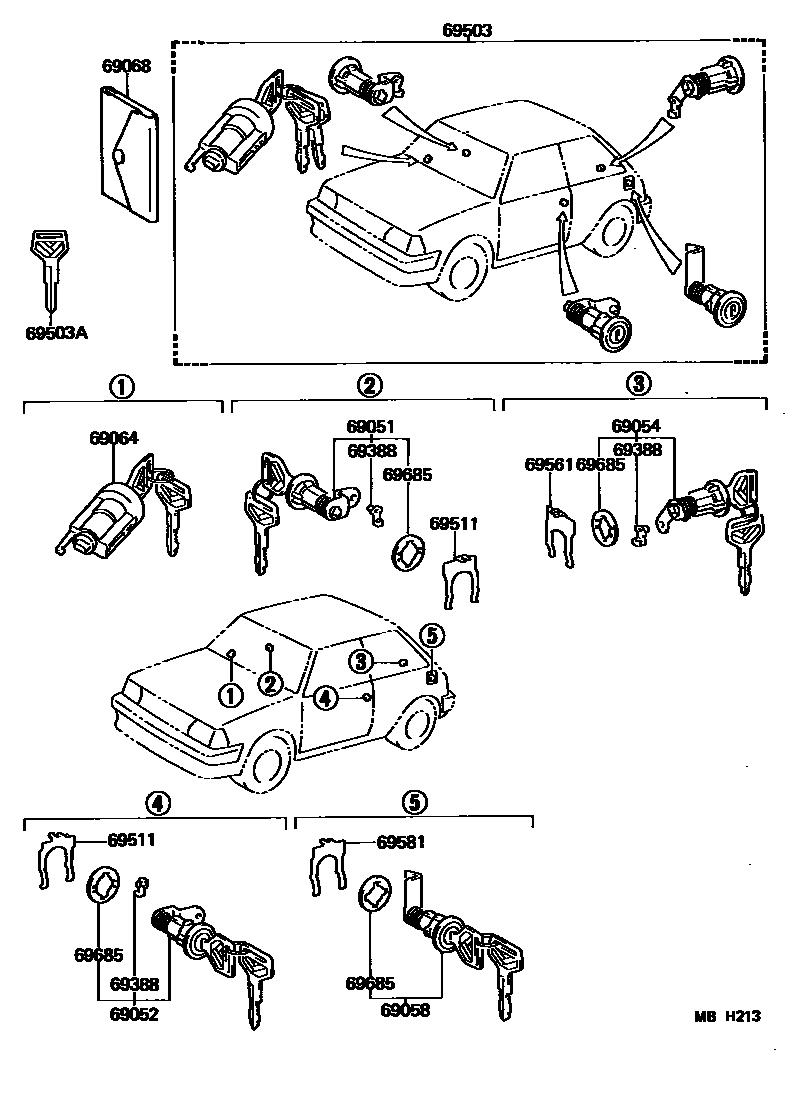

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-10080iEP71198410-198612

main69051-10081iEP71,NP70198612-198912

main69051-10110iEP76198410-198612

main69051-10111iEP76,NP76198612-198912

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-10080iEP71198410-198612

main69052-10081iEP71,NP70198612-198912

main69052-10110iEP76198410-198612

main69052-10111iEP76,NP76198612-198912

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-10060iEP71198410-198612

main69055-10061iEP71,NP70198612-198912

main69055-10090iEP76198410-198612

main69055-10091iEP76,NP76198612-198912

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-10080iEP76198410-198612

main69058-10081iEP76,NP76198612-198912

main69058-10130iEP71,NP70..DX,RI,STD,TOR198612-198912

main69058-12100iEP71..DX,RI,STD,TOR198601-198612

main69058-16030iEP71198410-198502

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-10090iEP76198410-198612

main69057-10091iEP76,NP76198612-198912

main69057-10140iEP71,NP70198612-198912

main69057-17020iEP71198410-198612

69068COVER SUB-ASSY, KEY

main69555-17010iEP7#,NP7#198410-198912

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080×2iEP71,NP70198706-198912

FR DOOR RH,BACK DOOR

main69759-20090iEP7#,NP7#198410-198706

FR DOOR LH

main69759-30040iEP76,NP76198706-198912

FR DOOR RH

main69759-30050iEP76,NP76198706-198912

FR DOOR LH

69503CYLINDER SET, LOCK

main69005-10110iEP71198410-198601

main69005-10111iEP71,NP70..DX,RI,STD,TOR198612-198912

main69005-10120iEP76198410-198612

main69005-10121iEP76,NP76198612-198912

main69005-10190iEP71..SE,SI,TBS,XL198601-198612

main69005-10191iEP71,NP70..SE,SI,TBS,XL198612-198912

69503AKEY, BLANK

main90999-00085iEP71,NP70198410-198912

main90999-00107iEP76,NP76198410-198912

main90999-00123iEP76,NP76198612-198912

main90999-00128iEP71,NP70198612-198912

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010×2iEP7#,NP7#198410-198912

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69511-32010iEP7#,NP7#198410-198912

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iEP7#..CD,CS,DX,RI,STD,TOR198601-198612

69685PAD, LOCK CYLINDER

main69513-32010×3iEP71,NP70..DX,RI,STD,TOR; EP71,NP70..SE,SI,TBS,XL198601-198912

FR DOOR; FR DOOR,FUEL LID

main69513-87001×3iEP76,NP76198410-198912

FR DOOR,FUEL LID

main69563-10010iEP76,NP76198410-198912

BACK DOOR

main69563-16010iEP71,NP70198410-198912

BACK DOOR

13 parts on this diagram · 1 diagram in section
