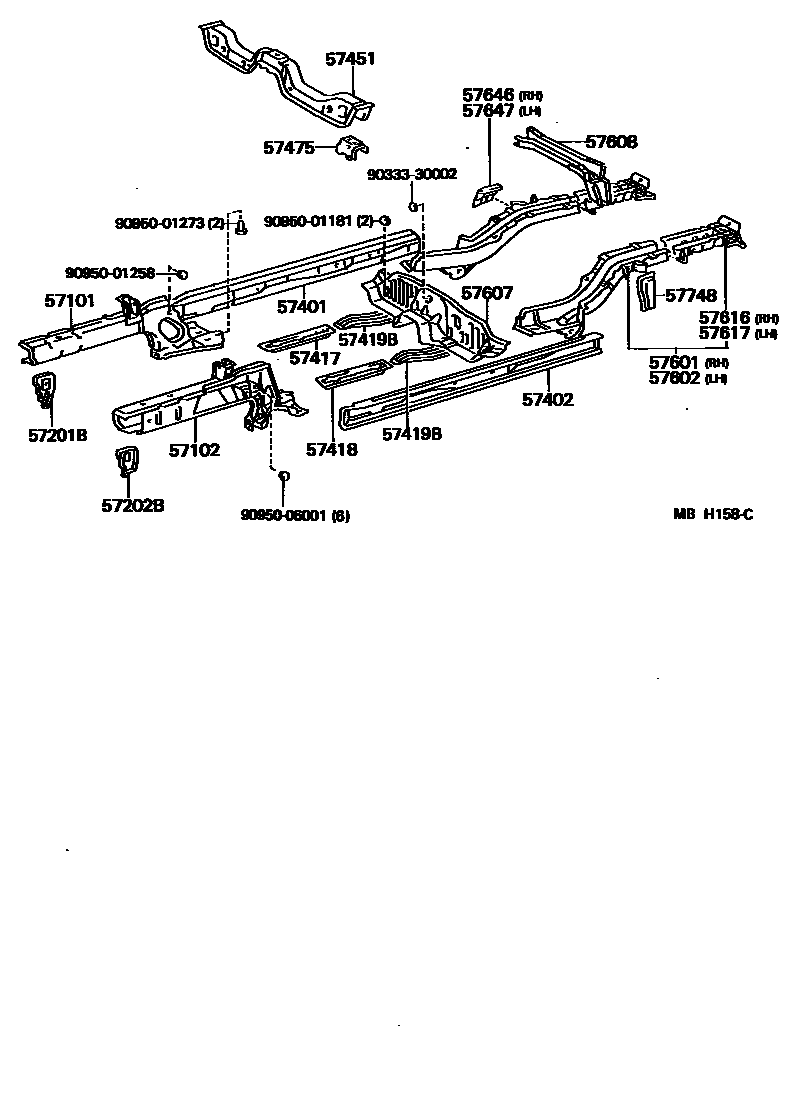

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-10150iEP7#198410-198601

main57101-10151iEP7#..CBR,EFI198601-198612

main57101-10221iEP71..TBO198601-198912

main57101-10240iEP7#,NP7#..CBR,DSL,EFI198612-198912

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-10130iEP7#198410-198601

main57102-10131iEP7#..CBR,EFI198601-198612

main57102-10251iEP71..TBO198601-198912

main57102-10270iEP7#..CBR,EFI; NP7#..5F198612-198912

main57102-10280iNP70..4FC198612-198912

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-10020iEP7#,NP7#198410-198912

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-10020iEP7#,NP7#198410-198912

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-10100iEP7#,NP7#198410-198912

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-10100iEP7#,NP7#198410-198912

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-10060iEP7#,NP7#198410-198912

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-10050iEP7#,NP7#198410-198912

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-10010×2iEP7#198410-198601

main57419-10020×2iEP7#,NP7#198601-198912

57451MEMBER, FRONT FLOOR CROSS

main57451-10050iEP7#,NP7#198410-198912

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-10030iEP7#,NP7#198410-198912

RH

main57476-10020iEP7#,NP7#198410-198912

LH

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-10050iEP71..CBR,EFI198612-198912

main57601-10060iEP71..TBO198601-198912

main57601-10070iNP70198612-198912

main57601-11030iEP76198608-198912

main57601-11040iEP76198410-198608

main57601-11060iNP76198612-198912

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-10050iEP7#..CBR,EFI198410-198612

main57602-10060iEP71..TBO198601-198912

main57602-11040iEP76,NP76198608-198912

main57602-11050iEP76198410-198608

57607CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1

main57605-10050iEP7#,NP7#198410-198912

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-10060iEP7#,NP7#..CBR,DSL,EFI198410-198912

main57606-10070iEP71..TBO198601-198912

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-10900iEP7#..CBR,EFI198410-198912

main57615-10901iEP71..TBO198601-198912

main57615-10902iNP7#198612-198912

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-10900iEP7#,NP7#..CBR,DSL,EFI198410-198912

main57616-10901iEP71..TBO198601-198912

57646REINFORCEMENT, REAR SIDE MEMBER TO BODY, RH

main57646-10020iEP7#,NP7#198410-198912

57647REINFORCEMENT, REAR SIDE MEMBER TO BODY, LH

main57647-10020iEP7#,NP7#198410-198912

57748REINFORCEMENT, LATERAL ROD BRACKET

main57748-10010iEP7#,NP7#198410-198912

9033330002

main90333-30002

9095001181

main90950-01181

9095001258

main90950-01258

9095001273

main90950-01273

9095006001

main90950-06001

25 parts on this diagram · 1 diagram in section
