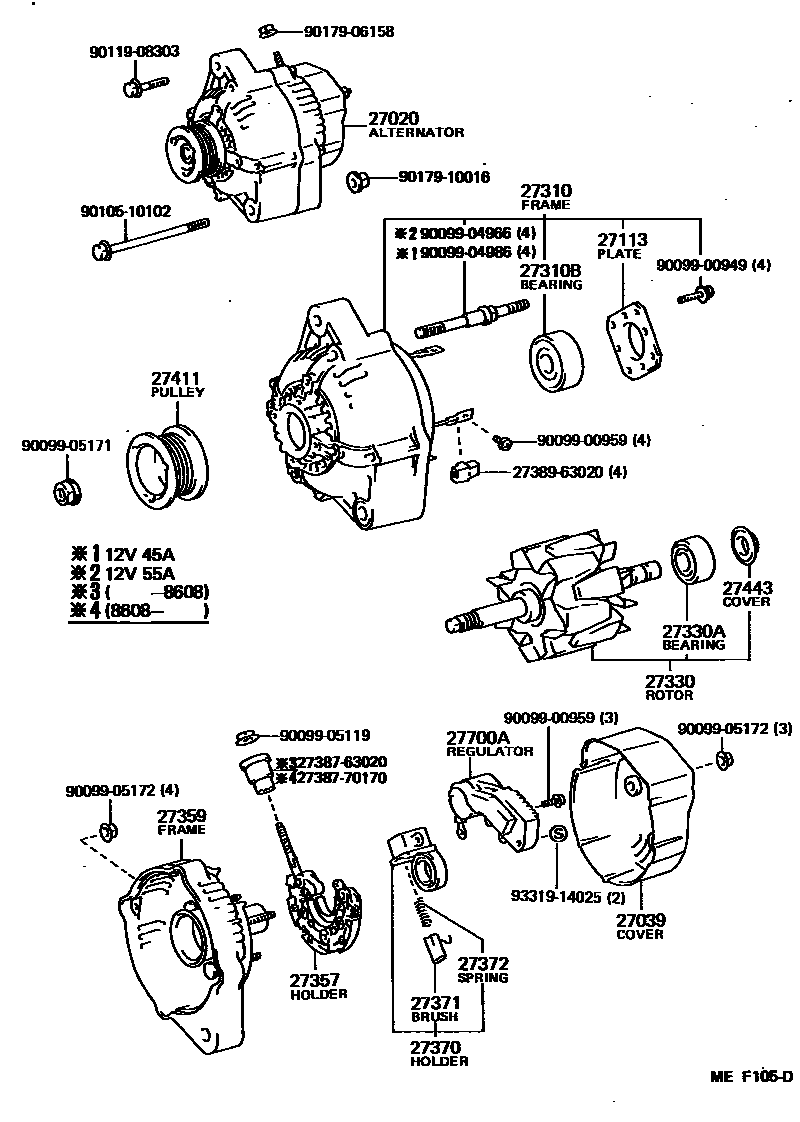

ALTERNATOR

0001 112V 45A OR 55A 0002 112V 45A 0003 112V 55A OR 60A

27020ALTERNATOR ASSY

main27060-10010i2EELU,2ETELU..EP71..5F;2ELU..EP71..3D..4F..DX198410-198608

main27060-10011i2EELU,2ETELU..EP71..5F;2ELU..EP71..3D..4F..DX198608-198612

main27060-10030i2EELU,2EL#..EP7#198410-198509

main27060-10060i2ETELU..EP71..4FC198601-198608

main27060-10061i2EELU..EP71..4FC198804-198804

main27060-10070i2EL#..EP7#198602-198608

main27060-10071i2EL#..EP7#198608-198810

main27060-10090i2EELU,2ETELU..EP71..5F;2ELU..EP71..3D..4F..DX198612-198804

main27060-10100i2EL#..EP7#..MTM198810-198912

main27060-11040i2ETELU..EP71..4FC198804-198912

main27060-11041i2ETELU..EP71..4FC198912-198912

main27060-11050i2EELU,2ETELU..EP71..5F;2ELU..EP71..3D..4F..DX; 2EELU..EP71..4FC198804-198912

main27060-55011i1N..NP7#198612-198912

main27060-55020i1N..NP7#198612-198912

main27060-55030i1N..NP7#198612-198912

27039COVER, ALTERNATOR REAR END

main27039-10040i2EELU,2EL#..EP7#198509-198509

12V 45A

main27039-63040i2EELU..EP71;2ELU..EP71..3D..4F..DX198410-198505

12V 55A

main27039-72010i1N..NP7#198612-198912

12V 60A;12V 55A,COLD SPEC

main27039-72110i1N..NP70;2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP76..5F198505-198912

12V 55A

main27039-72150i2EL#..EP7#198602-198912

12V 45A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-63020i2EELU,2EL#..EP7#198410-198509

12V 45A

main27312-70200i2ETELU..EP71..4FC198804-198912

12V 55A

main27312-72100i2EELU,1N..EP71,NP7#;2ELU..EP71..3D..4F..DX; 2ETELU..EP71..5F198804-198912

12V 55A; 12V 55A,60A

main27312-72120i2EL#..EP7#198602-198912

12V 45A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-10021i2EELU,1N..EP71,NP7#;2ELU..EP71..3D..4F..DX; 2ETELU..EP71..5F198804-198912

12V 55A

main27310-10040i2EELU,2EL#..EP7#198410-198509

12V 45A

main27310-10080i2EL#..EP7#198602-198810

12V 45A

main27310-10100i2EL#..EP7#..MTM198810-198912

12V 45A

main27310-16011i1N..NP7#198612-198912

12V 60A;12V 55A,COLD SPEC

main27310-16181i2ETELU..EP71..4FC198804-198912

12V 55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10152i2EELU,2EL#..EP7#198410-198504

12V 45A

main90099-10155i2EELU,2EL#..EP7#198504-198509

12V 45A

main90099-10159i2EELU,1N..EP71,NP7#;2ELU..EP71..3D..4F..DX; 2ETELU..EP71..5F198804-198912

12V 55A; 12V 55A,60A

main90099-10170i2EL#..EP7#198602-198912

12V 45A

main90099-10178i2ETELU..EP71..4FC198804-198912

12V 55A

27330ROTOR ASSY, ALTERNATOR

main27330-10020i2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7#198410-198709

12V 55A

main27330-10021i2EELU,1N..EP71,NP7#;2ELU..EP71..3D..4F..DX; 2ETELU..EP71..5F198804-198912

12V 55A

main27330-10040i2EELU,2EL#..EP7#198410-198509

12V 45A

main27330-72100i1N..NP7#198612-198709

12V 60A;12V 55A,COLD SPEC

main27330-72101i1N..NP7#198709-198912

12V 60A;12V 55A,COLD SPEC

main27330-72150i2EL#..EP7#198602-198912

12V 45A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i2ELU..EP71..3D..4F..DX;2EELU,2ETELU,1N..EP71,NP7#198410-198912

12V 55A,60A

main90099-10154i2EL#..EP7#198509-198912

12V 45A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-10040i2EELU,2EL#..EP7#198410-198509

12V 45A

main27357-63020i1N..NP7#198612-198912

12V 60A

main27357-63040i2EELU,1N..EP71,NP7#;2ELU..EP71..3D..4F..DX; 2ETELU..EP71..5F198804-198912

12V 55A

main27357-63060i1N..NP7#198612-198912

12V 55A,COLD SPEC

main27357-72150i2EL#..EP7#198602-198912

12V 45A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-10040i2EELU,2EL#..EP7#198410-198509

12V 45A

main27359-16011i1N..NP7#198612-198912

12V 60A;12V 55A,COLD SPEC

main27359-16081i2EELU,1N..EP71,NP7#;2ELU..EP71..3D..4F..DX; 2ETELU..EP71..5F198804-198912

12V 55A

main27359-16180i2ETELU..EP71..4FC198804-198912

12V 55A

main27359-72150i2EL#..EP7#198602-198912

12V 45A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i2E#..EP7#198410-198912

12V 45A,55A

main27370-63021i1N..NP7#198612-198912

12V 55A,60A

27371BRUSH, ALTERNATOR

main27371-63020×2i2E#,1N..EP7#,NP7#198410-198912

12V 45A,55A,60A

27372SPRING, ALTERNATOR BRUSH

main27372-63020×2i2EELU,2EL#..EP7#198410-198501

12V 45A,55A

main27372-72100×2i2E#,1N..EP7#,NP7#198501-198912

12V 45A,55A,60A

27411PULLEY, ALTERNATOR

main27411-10020i2EELU..EP71;2ELU..EP71..3D..4F..DX198410-198501

12V 55A

main27411-10040i2EELU,2EL#..EP7#198410-198509

12V 45A

main27411-10051i2EL#..EP7#198602-198912

12V 45A

main27411-10070i2EELU,2ETELU..EP71..5F;2ELU..EP71..3D..4F..DX; 2EELU..EP71..4FC198804-198912

12V 55A

main27411-55010i1N..NP7#198612-198912

12V 55A,60A

main27411-65010i2ETELU..EP71..4FC198804-198912

12V 55A

main27411-70091i2EELU,2ETELU..EP71..5F;2ELU..EP71..3D..4F..DX198501-198709

12V 55A

main27411-70200i2EELU,2ETELU..EP71..5F;2ELU..EP71..3D..4F..DX198709-198804

12V 55A

27443COVER, ALTERNATOR BEARING

main27443-63020i2E#,1N..EP7#,NP7#198410-198912

12V 45A,55A,60A

27700AREGULATOR ASSY, GENERATOR

main27700-10050i2EL#..EP7#198602-198810

12V 45A

main27700-10060i2EELU,2ETELU..EP71..5F;2ELU..EP71..3D..4F..DX198612-198802

12V 55A

main27700-10061i2ELU..EP71..3FC198810-198912

12V 55A

main27700-63021i2EELU,2ETELU..EP71;2ELU..EP71..3D..4F..DX198602-198612

12V 55A

main27700-70030i2ETELU..EP71..4FC198912-198912

12V 55A

2738763020INSULATOR, TERMINAL

main27387-63020

2738770170INSULATOR, TERMINAL

main27387-70170

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009904986

main90099-04986

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510102

main90105-10102

9011908303

main90119-08303

9017906158

main90179-06158

9017910016

main90179-10016

9331914025

main93319-14025

30 parts on this diagram · 3 diagrams in section
