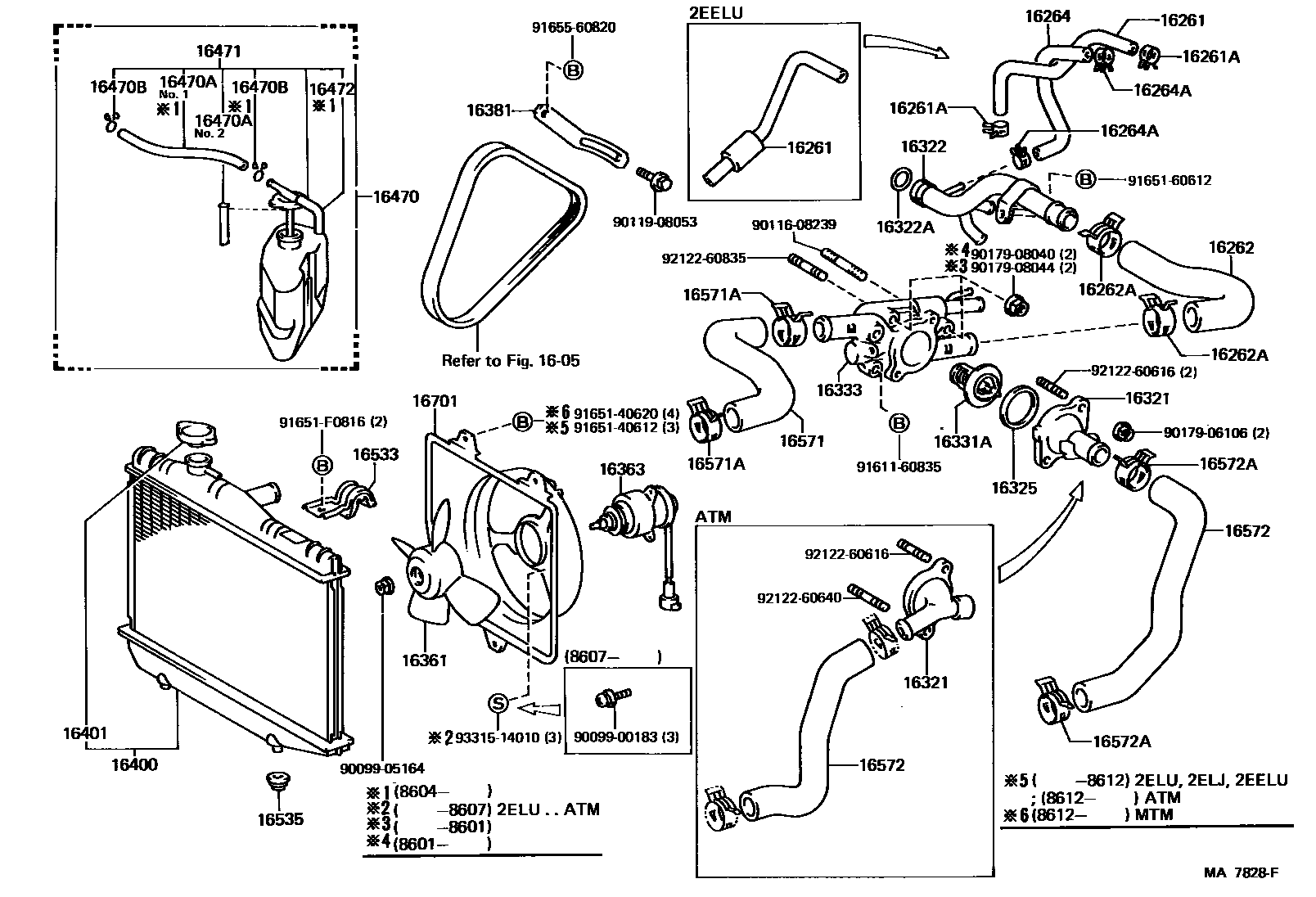

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1605V-BELT

→ Go to FIG 16-05

16261HOSE, WATER BY-PASS

main16261-11010i2EL#..EP7#198410-198912

main16261-11020i2EELU,2ETELU..EP71198410-198912

main16261-55020i1N..NP7#..5F198612-198912

main16261-55030i1N..NP70..4FC198612-198912

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009×2i2ELU,2ETELU,2ELJ..EP7#198410-198612

main90467-11049×2i2E#..EP7#198802-198912

main90467-15004×2i1N..NP7#198612-198912

16262HOSE, WATER INLET

main16262-10010i2EELU,2EL#..EP7#..MTM198410-198912

main16262-10020i2ELU..EP71..3FC198410-198912

main16262-55010i1N..NP7#198612-198912

16262ACLIP(FOR WATER INLET HOSE)

main90467-34002×2i2EELU,2EL#..EP7#198410-198601

main90467-34003×2i2E#..EP7#198601-198912

main90467-37001×2i1N..NP7#198612-198912

16264HOSE, WATER BY-PASS, NO.2

main16264-11010i2EL#..EP7#198410-198612

main16264-11030i2EL#..EP7#198612-198912

main16264-55010i1N..NP7#198612-198912

main99555-00175i2EELU,2ETELU..EP71198410-198912

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009×2i2E#..EP7#198410-198802

main90467-11049×2i2E#..EP7#198802-198912

main90467-15004×2i1N..NP7#198612-198912

16321INLET, WATER

main16321-10010i2EELU,2EL#..EP7#..MTM198410-198503

main16321-10011i2E#..EP7#..MTM198503-198912

main16321-11010i2ELU..EP71..3FC198410-198503

main16321-11011i2ELU,2ETELU..EP71..ATM198503-198612

main16321-55010i1N..NP7#198612-198912

16322PIPE, WATER INLET

main16322-11030i2EELU,2ETELU..EP71198410-198912

main16322-11050i2EL#..EP7#198410-198912

main16322-55020i1N..NP70..4FC198612-198912

main16322-55030i1N..NP7#..5F198612-198912

main16322-55040i1N..NP7#..5F198612-198912

COLD SPEC

16322ARING, O(FOR WATER INLET)

main96711-35028i2E#..EP7#198410-198912

main96711-35031i1N..NP7#198612-198912

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1N..NP7#; 2E#..EP7#198410-198912

16331OUTLET, WATER

main16304-55020i1N..NP7#198612-198912

16331ATHERMOSTAT

main90916-03046i1N..NP7#; 2E#..EP7#198410-198912

16333HOUSING, WATER OUTLET

main16303-10010i2ELU..EP71198410-198509

main16303-10011i2ELU..EP71198509-198912

main16303-11010i2ELJ..EP76198410-198509

main16303-11011i2ELJ..EP76198509-198912

main16303-11020i2EELU..EP71198410-198509

main16303-11021i2EELU..EP71..5F198612-198912

main16303-11030i2ETELU..EP71..5F198601-198912

main16303-11040i2ETELU..EP71..4FC198601-198912

main16303-11080i2EELU..EP71..4FC198612-198912

16361FAN

main16361-63020i1N..NP70..4FC; 2ETELU..EP71..4FC198601-198712

main16361-63040i2E#..EP7#..MTM198410-198912

main16361-64010i1N..NP70..5F198612-198912

main16361-64020i2ETELU..EP71..4FC198712-198912

16363MOTOR, COOLING FAN

main16363-10010i2E#..EP7#..MTM198410-198912

main16363-16010i1N..NP70..5F198612-198912

main16363-16020i1N..NP70..4FC; 2ETELU..EP71..4FC198601-198912

16381BAR, FAN BELT ADJUSTING

main16381-10040i2EL#..EP7#198509-198604

main16381-11010i2EELU..EP71198410-198509

COLD SPEC

main16381-11020i2ELJ..EP76; 2ELU..EP71..MTM198810-198912

main16381-11030i2EELU,2ETELU..EP71; 2ELU..EP71..3D..4F..DX198604-198912

*52

main16381-55010i1N..NP7#198612-198912

16400RADIATOR ASSY

main16400-10010i2EELU,2ELU..EP71..MTM198410-198506

main16400-10011i2EELU,2ELU..EP71..MTM198506-198612

main16400-10021i2EELU,2ELU..EP71..MTM198612-198912

main16400-10030i2ELJ..EP76198410-198612

main16400-10031i2ELJ..EP76198612-198912

main16400-11070i2ELU..EP71..3FC198410-198612

main16400-11090i2ETELU..EP71..5F198601-198912

main16400-11100i2ETELU..EP71..4FC198601-198912

main16400-11150i2ELU..EP71..3D..4F..DX198612-198912

*52

main16400-55030i1N..NP7#..5F198612-198912

main16400-55040i1N..NP70..4FC198612-198912

16401CAP SUB-ASSY, RADIATOR

main16401-63010i1N..NP7#; 2E#..EP7#198410-198912

16470TANK ASSY, RADIATOR RESERVE

main16470-10020i2E#..EP7#198410-198912

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85354-10280i1N..NP7#198612-198912

main90445-12078i2E#..EP7#198604-198912

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i1N..NP7#198612-198912

16471CAP SUB-ASSY, RESERVE TANK

main16405-10010i2E#..EP7#198410-198912

main85339-16020i1N..NP7#198612-198912

16472HOSE, BREATHER

main85338-10020i2E#..EP7#198604-198609

main85338-22030i1N..NP7#198612-198912

main85338-74040i2E#..EP7#198609-198912

16533SUPPORT, RADIATOR, UPPER

main16505-10010×2i2EELU,2EL#..EP7#198410-198912

main16505-11010×2i2ETELU..EP71198601-198912

main16533-55020×2i1N..NP7#198612-198912

16535SUPPORT, RADIATOR, LOWER

main16535-55020×2i1N..NP7#198612-198912

main16535-63030×2i2ETELU..EP71198601-198912

main90480-23008×2i2EELU,2EL#..EP7#198410-198912

16571HOSE, RADIATOR, INLET

main16571-10020i2EELU,2EL#..EP7#198410-198912

main16571-11020i2ETELU..EP71198601-198912

main16571-55020i1N..NP7#198612-198912

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31001×2i2EELU,2EL#..EP7#198410-198912

main90467-31003i2ETELU..EP71198601-198912

HOUSING SIDE

main90467-34001i1N..NP7#; 2ETELU..EP71198601-198912

RADIATOR SIDE

main90467-34003i1N..NP7#198612-198912

WATER OUTLET SIDE

16572HOSE, RADIATOR, OUTLET

main16572-10010i2EELU,2EL#..EP7#..MTM198410-198912

main16572-11030i2EELU,2ELU..EP71..ATM198612-198912

main16572-11050i2ETELU..EP71..5F198601-198912

main16572-11060i2ETELU..EP71..4FC198601-198912

main16572-55030i1N..NP7#..5F198612-198912

main16572-55040i1N..NP70..4FC198612-198912

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31001×2i2EELU,2EL#..EP7#198410-198612

main90467-31003×2i2EELU,2EL#..EP7#198612-198912

main90467-34001i1N..NP7#..5F; 2ETELU..EP71..5F198601-198912

RADIATOR SIDE

main90467-34003i2ETELU..EP71..4FC198601-198912

RADIATOR SIDE

16701SHROUD SUB-ASSY, FAN

main16711-10030i2EELU,2EL#..EP7#..MTM198410-198612

main16711-10040i2EELU,2EL#..EP7#..MTM198612-198912

main16711-11030i2EELU,2ELU..EP71..ATM198612-198912

main16711-11040i2ETELU..EP71..5F198601-198912

main16711-11050i2ETELU..EP71..4FC198601-198712

main16711-11100i2ETELU..EP71..4FC198712-198912

main16711-55040i1N..NP70..5F198612-198912

main16711-55050i1N..NP76198612-198912

main16711-55060i1N..NP70..4FC198612-198912

9009900183

main90099-00183

9009905164

main90099-05164

9011608239

main90116-08239

9011908053

main90119-08053

9017906106

main90179-06106

9017908040

main90179-08040

9017908044

main90179-08044

9161160835

main91611-60835

9165140612

main91651-40612

9165140620

main91651-40620

9165160612

main91651-60612

91651F0816

main91651-F0816

9165560820

main91655-60820

9212260616

main92122-60616

9212260640

main92122-60640

9212260835

main92122-60835

9331514010

main93315-14010

48 parts on this diagram · 4 diagrams in section
