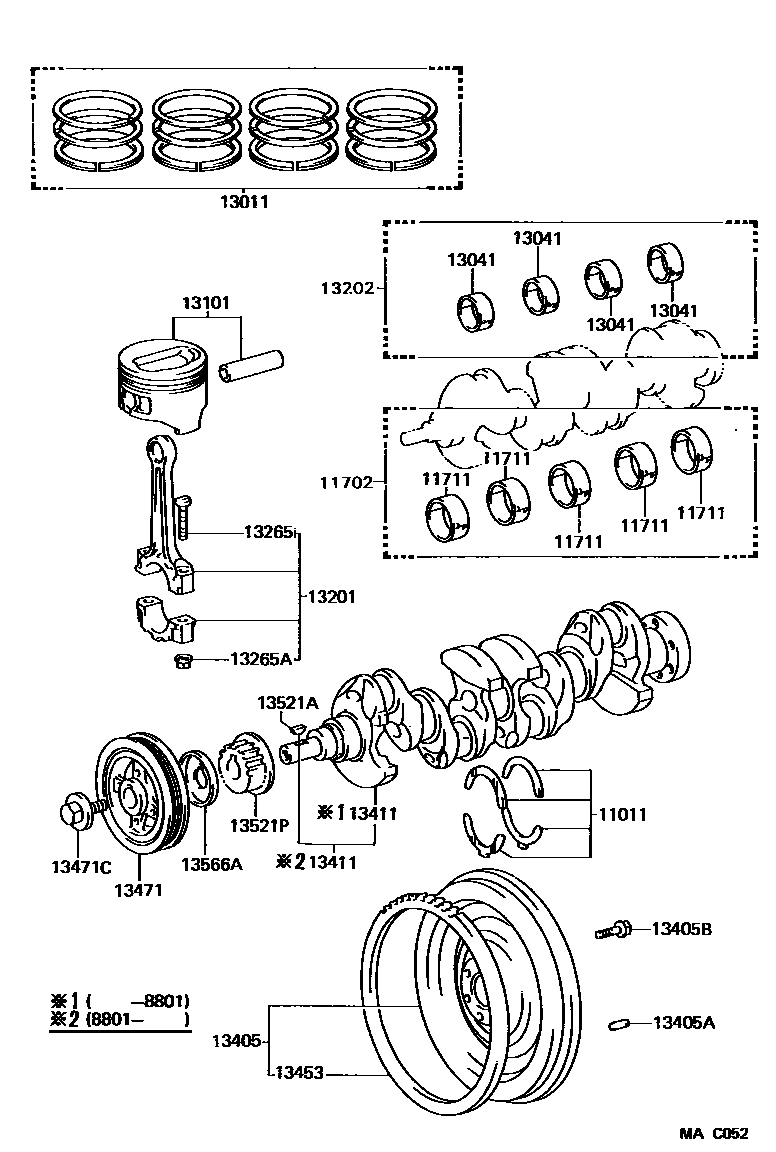

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-10010i2E#..EP7#198809-198912

main11011-10011i2E#..EP7#198808-198809

main11011-10020i2E#..EP7#198410-198808

main11011-22011i1N..NP7#198612-198912

main11012-10010i2E#..EP7#198410-198808

main11012-10020i2E#..EP7#198808-198912

main11012-22011i1N..NP7#198612-198912

main11013-22011i1N..NP7#198612-198912

11702BEARING SET, CRANKSHAFT

main11704-10010i2E#..EP7#198410-198912

main11704-55010i1N..NP7#198612-198808

main11704-55020i1N..NP7#198808-198912

main11705-55010i1N..NP7#198612-198808

main11705-55020i1N..NP7#198808-198912

11711BEARING, CRANKSHAFT

main11701-10010-01i2E#..EP7#198410-198912

MARK"1",MARK 1

main11701-10010-02i2E#..EP7#198410-198912

MARK"2",MARK 2

main11701-10010-03i2E#..EP7#198410-198912

MARK"3",MARK 3

main11701-55010-01i1N..NP7#198612-198808

MARK"1",MARK 1

main11701-55010-02i1N..NP7#198612-198808

MARK"2",MARK 2

main11701-55010-03i1N..NP7#198612-198808

MARK"3",MARK 3

main11701-55020-01i1N..NP7#198808-198912

MARK"1",MARK 1

main11701-55020-02i1N..NP7#198808-198912

MARK"2",MARK 2

main11701-55020-03i1N..NP7#198808-198912

MARK"3",MARK 3

13011RING SET, PISTON

main13011-11040i2E#..EP7#198410-198602

STD

main13011-11041i2EELU,2EL#..EP7#198602-198912

main13011-11061i2ETELU..EP71198608-198912

main13011-55010i1N..NP7#198612-198912

main13012-11040i2EELU,2EL#..EP7#198410-198504

O/S 0.25

main13013-11040i2E#..EP7#198504-198602

O/S 0.50

main13013-11041i2E#..EP7#198602-198912

main13013-11061i2ETELU..EP71198608-198912

main13013-55010i1N..NP7#198612-198912

13041BEARING, CONNECTING ROD

main13041-10020-01i2E#..EP7#198410-198912

MARK"1",MARK 1

main13041-10020-02i2E#..EP7#198410-198912

MARK"2",MARK 2

main13041-10020-03i2E#..EP7#198410-198912

MARK"3",MARK 3

main13041-55010-01i1N..NP7#198612-198808

MARK"1",MARK 1

main13041-55010-02i1N..NP7#198612-198808

MARK"2",MARK 2

main13041-55010-03i1N..NP7#198612-198808

MARK"3",MARK 3

main13041-55020-01i1N..NP7#198808-198912

MARK"1",MARK 1

main13041-55020-02i1N..NP7#198808-198912

MARK"2",MARK 2

main13041-55020-03i1N..NP7#198808-198912

MARK"3",MARK 3

13101PISTON SUB-ASSY, W/PIN

main13101-11030i2EELU,2EL#..EP7#198410-198801

main13101-11030-01i2EELU,2EL#..EP7#198801-198911

main13101-11030-02i2EELU,2EL#..EP7#198801-198911

main13101-11030-03i2EELU,2EL#..EP7#198801-198911

main13101-11031-01i2EELU,2EL#..EP7#198911-198912

main13101-11031-02i2EELU,2EL#..EP7#198911-198912

main13101-11031-03i2EELU,2EL#..EP7#198911-198912

main13101-11040i2ELU..EP71..3D..4F..DX198410-198801

main13101-11040-01i2ELU..EP71..3D..4F..DX198801-198911

main13101-11040-02i2ELU..EP71..3D..4F..DX198801-198911

main13101-11040-03i2ELU..EP71..3D..4F..DX198801-198911

main13101-11041-01i2ELU..EP71..3D..4F..DX198911-198912

main13101-11041-02i2ELU..EP71..3D..4F..DX198911-198912

main13101-11041-03i2ELU..EP71..3D..4F..DX198911-198912

main13101-11060i2ETELU..EP71198601-198801

main13101-11060-01i2ETELU..EP71198801-198911

main13101-11060-02i2ETELU..EP71198801-198911

main13101-11060-03i2ETELU..EP71198801-198911

main13101-11061-01i2ETELU..EP71198911-198912

main13101-11061-02i2ETELU..EP71198911-198912

main13101-11061-03i2ETELU..EP71198911-198912

main13101-55020i1N..NP7#198612-198802

main13101-55020-01i1N..NP7#198802-198912

main13101-55020-02i1N..NP7#198802-198912

main13101-55020-03i1N..NP7#198802-198912

main13102-11030i2EELU,2EL#..EP7#198410-198504

O/S 0.25

main13102-11040i2ELU..EP71..3D..4F..DX198410-198504

*52,O/S 0.25

main13103-11030i2EELU,2EL#..EP7#198504-198912

main13103-11040i2ELU..EP71..3D..4F..DX198504-198912

main13103-11060i2ETELU..EP71198601-198912

main13103-55020i1N..NP7#198612-198912

13201ROD SUB-ASSY, CONNECTING

main13201-19075i2E#..EP7#198410-198912

main13201-59075i1N..NP7#198612-198912

13202BEARING SET, CONNECTING ROD

main13204-10020i2E#..EP7#198410-198912

13265BOLT, CONNECTING ROD

main13265-10020i2E#..EP7#198410-198912

main13265-55011i1N..NP7#198612-198912

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-08014i2E#..EP7#198410-198912

main90179-08118i1N..NP7#198612-198912

13405FLYWHEEL SUB-ASSY

main13405-10030i2EELU,2EL#..EP7#..MTM198410-198901

main13405-10031i2EELU,2EL#..EP7#..MTM198901-198912

main13405-11020i2ELU..EP71..3D..4F..DX198410-198510

*52

main13405-11030i2ETELU..EP71..5F198601-198901

main13405-11030i2ELU..EP71..3D..4F..DX198510-198901

*52

main13405-11031i2ETELU..EP71..5F198901-198912

*52

main13405-55010i1N..NP7#..5F198612-198912

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120i2E#..EP7#..MTM198410-198912

13405BBOLT, FLYWHEEL SETTING

main90105-10071i1N..NP7#..5F198612-198912

main90105-10138i2E#..EP7#..MTM198410-198912

13411CRANKSHAFT

main13401-11020i2EELU,2EL#..EP7#198410-198912

main13401-11030i2ETELU..EP71198601-198912

main13411-55900i1N..NP7#198612-198912

13453GEAR, FLYWHEEL RING

main13453-10030i2E#..EP7#..MTM198410-198912

main13453-55010i1N..NP7#..5F198612-198912

13471PULLEY, CRANKSHAFT

main13408-11011i2E#..EP7#198701-198706

TOYODA KOUKI

main13408-11012i2E#..EP7#198706-198912

TOYODA KOUKI

main13408-11020i2E#..EP7#198604-198706

MARUYASU

main13408-55010i1N..NP7#198612-198912

main13470-11010i2E#..EP7#198410-198604

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12012i2EELU,2EL#..EP7#198410-198601

main90105-12051i2E#..EP7#198601-198912

main90105-12060i1N..NP7#198612-198912

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i2E#..EP7#198410-198609

main95161-10519i2E#..EP7#198609-198912

13521PPULLEY, CRANKSHAFT TIMING

main13521-10020i2E#..EP7#198410-198604

main13521-11010i2E#..EP7#198604-198912

main13521-55010i1N..NP7#198612-198912

13566AGUIDE, TIMING BELT

main13566-10010i2EELU,2EL#..EP7#198410-198505

main13566-10011i2E#..EP7#198505-198912

main13566-55010i1N..NP7#198612-198912
