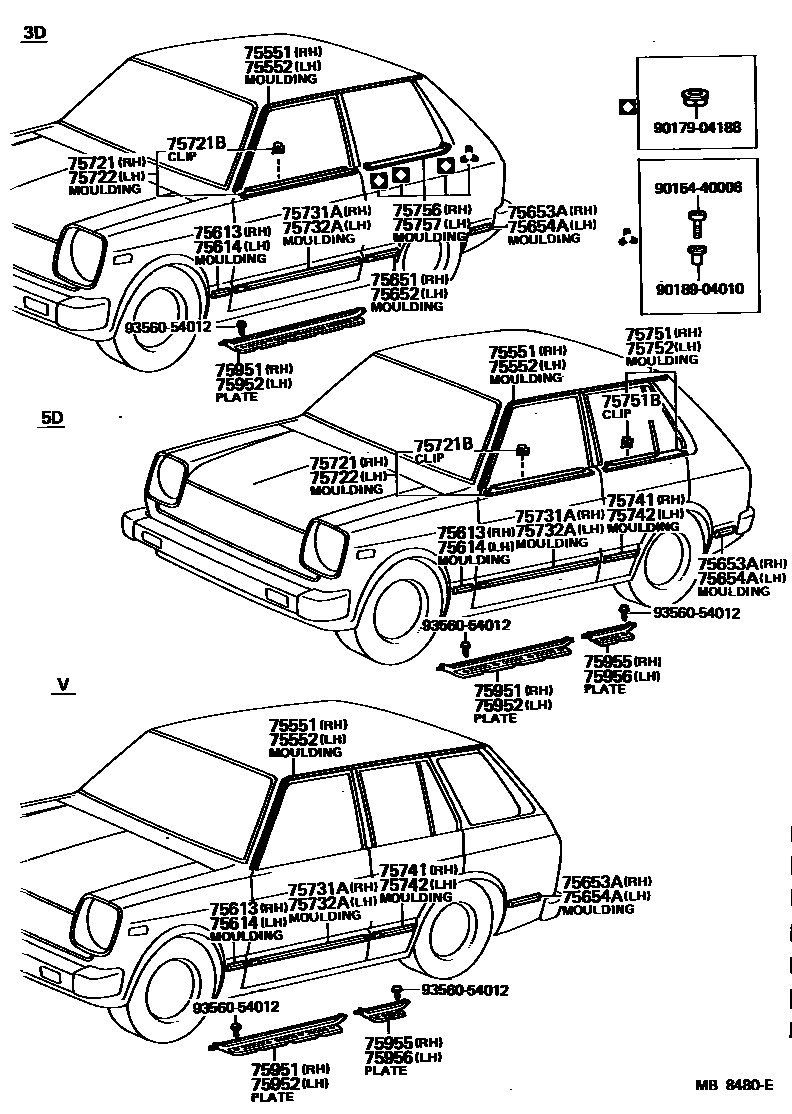

SIDE MOULDING

0001 1 0003 1 0004 1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-10050iKP61..SED..(DLX,DXA,SE,XL)197802-198208

main75551-10060iKP61..S197802-198208

main75551-96440iKP6#..4D..(DLX,XL)197810-198409

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-10050iKP61..SED..(DLX,DXA,SE,XL)197802-198208

main75552-10060iKP61..SED..XL..CBR198308-198409

SUPER

main75552-96440iKP6#..4D..(DLX,XL)197810-198409

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-10010iKP6#..S,SE,XL197802-197903

main75611-10011iKP6#..S,SE,XL197903-198005

main75611-10012iKP61..DLX,DXA,SE,XL198005-198108

main75611-10040iKP61..SED..(SE,XL)198108-198208

main75611-10050iKP61..S,SI198208-198409

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75612-10010iKP6#..S,SE,XL197802-197903

main75612-10011iKP6#..S,SE,XL197903-198005

main75612-10012iKP62..XL198005-198201

main75612-10040iKP61..SED..(SE,XL)198108-198208

main75612-10050iKP61..S,SI198208-198409

75651MOULDING, QUARTER, OUTSIDE RH

main75651-10030iKP61..3D..(S,SE,XL)197802-197903

main75651-10031iKP61..3D..(S,SE,XL)197903-198005

main75651-10032iKP61..3D..(DLX,DXA,SE,XL)198005-198108

main75651-10060iKP61..3D..(S,SI)198305-198409

LIMITED S,SI

main75651-10070iKP61..3D..S198208-198409

main75651-10080iKP61..3D..SI198208-198409

75652MOULDING, QUARTER, OUTSIDE LH

main75652-10020iKP61..3D..(S,SE,XL)197802-197903

main75652-10021iKP61..3D..(S,SE,XL)197903-198005

main75652-10022iKP61..3D..(DLX,DXA,S)198108-198208

main75652-10050iKP61..3D..(SE,XL)198108-198208

main75652-10060iKP61..3D..S198208-198409

main75652-10070iKP61..3D..SI198208-198409

75653AMOULDING, QUARTER, OUTSIDE REAR RH

main75653-10010iKP61..S,SE,XL197802-197903

main75653-10011iKP61..S,SE,XL197903-198005

main75653-10012iKP61..DLX,DXA,SE,XL198005-198108

main75653-10040iKP61..SED..(SE,XL)198108-198208

main75653-10050iKP61..S,SI198208-198409

main75653-10080iKP61..3D..(S,SI)198305-198409

LIMITED S,SI

main75653-10100iKP61..SED..(DLX,XL)198208-198409

main75653-96440iKP62..XL197810-197903

main75653-96441iKP62..XL197903-198005

main75653-96442iKP62..XL198005-198201

75654AMOULDING, QUARTER, OUTSIDE REAR LH

main75653-96440iKP62..XL197810-197903

main75653-96441iKP62..XL197903-198005

main75653-96442iKP62..XL198005-198201

main75654-10010iKP61..S,SE,XL197802-197903

main75654-10011iKP61..S,SE,XL197903-198005

main75654-10012iKP61..SED..(DLX,DXA,S)198108-198208

main75654-10040iKP61..SED..(SE,XL)198108-198208

main75654-10050iKP61..S,SI198208-198409

main75654-10080iKP61..3D..(S,SI)198305-198409

LIMITED S,SI

main75654-10100iKP61..SED..(DLX,XL)198208-198409

75721MOULDING, FRONT DOOR BELT, RH

main75710-10050iKP61..3D..SE197802-198206

main75710-10051iKP61..3D..SE198206-198208

main75710-10060iKP61..5D..SE197802-198206

main75710-10061iKP61..5D..SE198206-198409

W/O DOOR MIRROR

main75710-10070iKP61..SE198305-198409

W/DOOR MIRROR

75721BCLIP(FOR FRONT DOOR BELT MOULDING SET)

main68211-10060×12iKP61..SE198207-198409

75722MOULDING, FRONT DOOR BELT, LH

main75720-10050iKP61..3D..SE197802-198206

main75720-10051iKP61..3D..SE198206-198208

main75720-10060iKP61..5D..SE197802-198206

main75720-10061iKP61..5D..SE198206-198409

W/O DOOR MIRROR

main75720-10070iKP61..SE198305-198409

W/DOOR MIRROR

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-10020iKP61..3D..(S,SE,XL)197802-197903

main75731-10021iKP61..3D..(S,SE,XL)197903-198005

main75731-10030iKP6#..(4D,5D)..(S,SE,XL)197802-197903

main75731-10031iKP6#..(4D,5D)..(S,SE,XL)197903-198005

main75731-10032iKP61..5D..(DLX,S)198108-198208

main75731-10041iKP61..3D..(DLX,DXA,S)198108-198208

main75731-10090iKP61..3D..(S,SI)198305-198409

LIMITED S,SI

main75731-10100iKP61..5D..(SE,XL)198108-198208

main75731-10120iKP61..3D..(S,SI)198208-198409

main75731-10150iKP61..5D..(S,SI)198208-198409

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-10020iKP61..3D..(S,SE,XL)197802-197903

main75732-10021iKP61..3D..(S,SE,XL)197903-198005

main75732-10030iKP6#..(4D,5D)..(S,SE,XL)197802-197903

main75732-10031iKP6#..(4D,5D)..(S,SE,XL)197903-198005

main75732-10032iKP61..5D..(DLX,XL)198208-198409

main75732-10040iKP61..3D..(DLX,XL)198208-198409

main75732-10090iKP61..3D..(S,SI)198305-198409

LIMITED S,SI

main75732-10100iKP61..SE198208-198409

main75732-10120iKP61..3D..(S,SI)198208-198409

main75732-10140iKP61..5D..(S,SI)198208-198409

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-10010iKP6#..(4D,5D)..(S,SE,XL)197802-197903

main75741-10011iKP6#..(4D,5D)..(S,SE,XL)197903-198005

main75741-10012iKP61..5D..(DLX,XL)198208-198409

main75741-10040iKP61..SE198208-198409

main75741-10060iKP61..5D..S198208-198409

main75741-10120iKP61..5D..SI198304-198409

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-10010iKP6#..(4D,5D)..(S,SE,XL)197802-197903

main75742-10011iKP6#..(4D,5D)..(S,SE,XL)197903-198005

main75742-10012iKP62..XL198005-198201

main75742-10040iKP61..SE198208-198409

main75742-10060iKP61..5D..S198208-198409

main75742-10120iKP61..5D..SI198304-198409

75751MOULDING, REAR DOOR BELT, RH

main75730-10010iKP61..5D..SE197802-198206

main75730-10011iKP61..5D..SE198206-198409

75751BCLIP (FOR REAR DOOR BELT MOULDING SET)

main68211-10060×8iKP61..5D..SE198207-198409

75752MOULDING, REAR DOOR BELT, LH

main75740-10050iKP61..5D..SE197802-198206

main75740-10051iKP61..5D..SE198206-198409

75756MOULDING, QUARTER BELT, RH

main75660-19115iKP61..3D..SE197802-198208

75757MOULDING, QUARTER BELT, LH

main75670-19115iKP61..3D..SE197802-198208

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-10010-01iKP61..3D197802-198208

BLACK,BLACK,TRIM2#

main67913-10010-02iKP61..3D..DLX198301-198303

LISSE SPECIAL,DARK WINE,RED/MAROON,TRIM3#

main67913-10010-03iKP61..3D198208-198409

GRAY,GRAY,TRIM1#

main67913-10010-04iKP61..3D..(DLX,S,SE,XL)197802-198005

BLUE,BLUE,TRIM8#

main67913-10010-06iKP61..3D..(DLX,S,SE,XL)197802-198005

LIGHT BROWN,BROWN,TRIM4#

main67913-10010-14iKP61..3D..(DLX,DXA,S,SE,XL)198005-198108

BLUE,BLUE,TRIM2#,4#,8#

main67913-10010-16iKP61..3D..(DLX,DXA,S,SE,XL)198005-198108

LIGHT BROWN,BROWN,TRIM4#

main67913-10010-26iKP61..3D..(DLX,DXA,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

main67913-10020-01iKP6#..4D,5D197802-198208

BLACK,BLACK,TRIM2#

main67913-10020-02iKP61..SE198208-198409

DARK WINE,RED/MAROON,TRIM3#

main67913-10020-03iKP61..4D,5D198208-198409

GRAY,GRAY,TRIM1#

main67913-10020-04iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-198005

BLUE,BLUE,TRIM8#

main67913-10020-06iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-198005

LIGHT BROWN,BROWN,TRIM4#

main67913-10020-14iKP61..5D198005-198108

BLUE,BLUE,TRIM2#,4#,8#

main67913-10020-16iKP6#..(4D,5D)..(DLX,SE,XL)..05S198108-198208

LIGHT BROWN,BROWN,TRIM2#,4#

main67913-10020-26iKP61..5D..(DLX,SE,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67913-10020-01iKP6#..4D,5D197802-198208

BLACK,BLACK,TRIM2#

main67913-10020-02iKP61..5D..DLX198301-198303

LISSE SPECIAL,DARK WINE,RED/MAROON,TRIM3#

main67913-10020-03iKP61..4D,5D198208-198409

GRAY,GRAY,TRIM1#

main67913-10020-04iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-198005

BLUE,BLUE,TRIM8#

main67913-10020-06iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-198005

LIGHT BROWN,BROWN,TRIM4#

main67913-10020-14iKP61..5D198005-198108

BLUE,BLUE,TRIM2#,4#,8#

main67913-10020-16iKP6#..(4D,5D)..(DLX,S,SE,XL)198005-198108

LIGHT BROWN,BROWN,TRIM0#,4#

main67913-10020-26iKP61..5D..(DLX,SE,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

main67914-10010-01iKP61..3D197802-198208

BLACK,BLACK,TRIM2#

main67914-10010-02iKP61..3D..XL..CBR198108-198409

XL-L,DARK WINE,RED/MAROON,TRIM0#

main67914-10010-03iKP61..3D198208-198409

GRAY,GRAY,TRIM1#

main67914-10010-04iKP61..3D..(DLX,S,SE,XL)197802-198005

BLUE,BLUE,TRIM8#

main67914-10010-06iKP61..3D..(DLX,S,SE,XL)197802-198005

LIGHT BROWN,BROWN,TRIM4#

main67914-10010-14iKP61..3D..(DLX,DXA,S,SE,XL)198005-198108

BLUE,BLUE,TRIM2#,4#,8#

main67914-10010-16iKP61..3D..(DLX,DXA,SE,XL)198108-198208

LIGHT BROWN,BROWN,TRIM2#,4#

main67914-10010-26iKP61..3D..(DLX,DXA,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-10010-01iKP6#..4D,5D197802-198208

BLACK,BLACK,TRIM2#

main67917-10010-02iKP61..5D..XL198108-198409

XL-L,DARK WINE,RED/MAROON,TRIM0#

main67917-10010-03iKP61..4D,5D198208-198409

GRAY,GRAY,TRIM1#

main67917-10010-04iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-198005

BLUE,BLUE,TRIM8#

main67917-10010-06iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-198005

LIGHT BROWN,BROWN,TRIM4#

main67917-10010-14iKP61..5D198005-198108

BLUE,BLUE,TRIM2#,4#,8#

main67917-10010-16iKP6#..(4D,5D)..(DLX,SE,XL)..05S198108-198208

LIGHT BROWN,BROWN,TRIM2#,4#

main67917-10010-26iKP61..5D..(DLX,SE,XL)198208-198409

BROWN,BROWN,TRIM1#,4#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67918-10010-01iKP6#..4D,5D197802-198208

BLACK,BLACK,TRIM2#

main67918-10010-02iKP61..SE198208-198409

DARK WINE,RED/MAROON,TRIM3#

main67918-10010-03iKP61..4D,5D198208-198409

GRAY,GRAY,TRIM1#

main67918-10010-04iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-198005

BLUE,BLUE,TRIM8#

main67918-10010-06iKP6#..(4D,5D)..(DLX,S,SE,XL)197802-198005

LIGHT BROWN,BROWN,TRIM4#

main67918-10010-14iKP61..5D198005-198108

BLUE,BLUE,TRIM2#,4#,8#

main67918-10010-16iKP6#..(4D,5D)..(DLX,SE,XL)..05S198108-198208

LIGHT BROWN,BROWN,TRIM2#,4#

main67918-10010-26iKP61..5D..(DLX,SE,XL)198208-198409

BROWN,BROWN,TRIM2#,4#

9015440006

main90154-40006

9017904188

main90179-04188

9018904010

main90189-04010

9356054012

main93560-54012

28 parts on this diagram · 3 diagrams in section
