HEATING & AIR CONDITIONING - COMPRESSOR

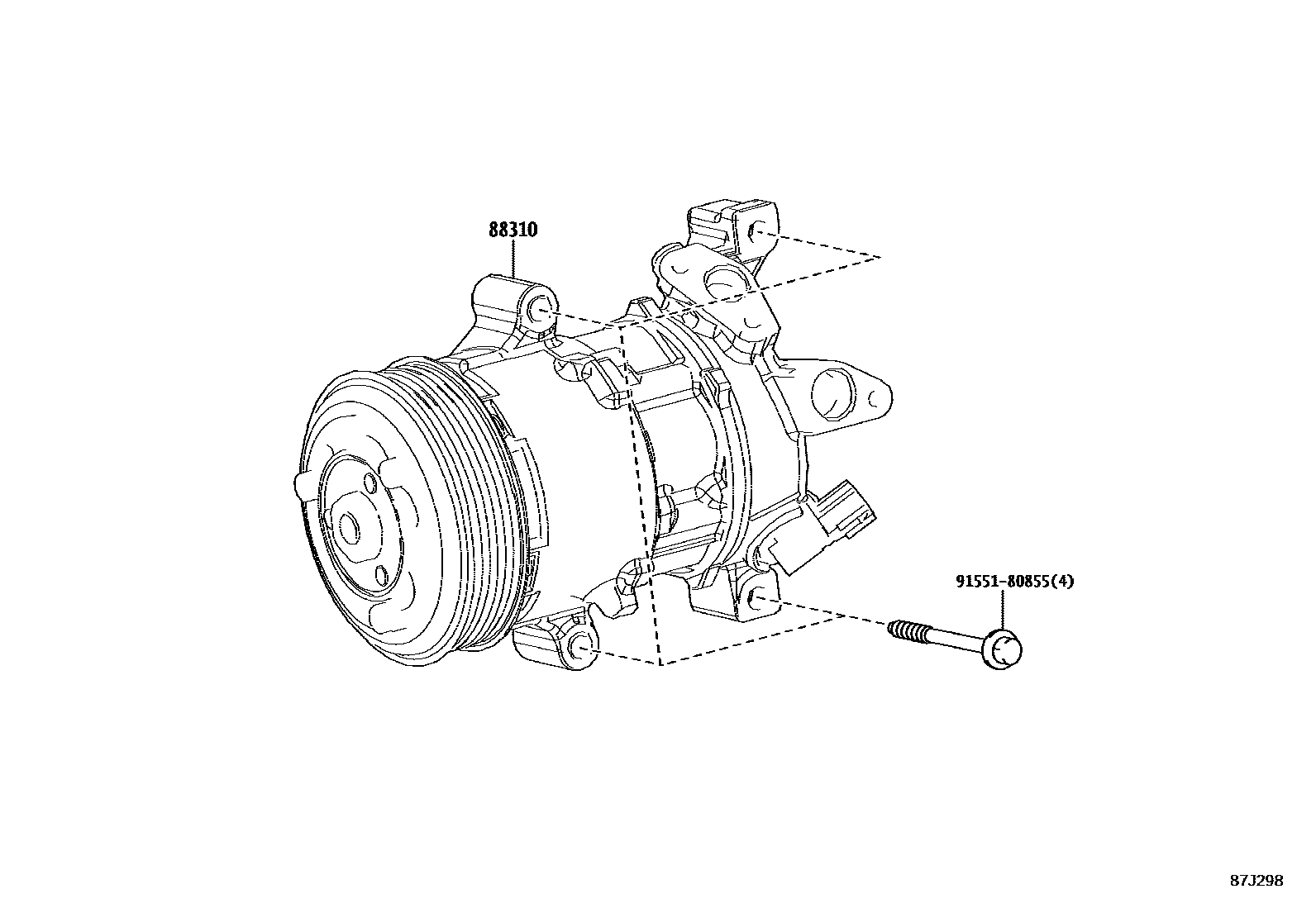

Parts diagram

88310COMPRESSOR ASSY, W/PULLEY

main88310-52820i202008-202404

main88310-K0050i202009

main88310-52840i202404

9155180855

main91551-80855

2 parts on this diagram · 2 diagrams in section
