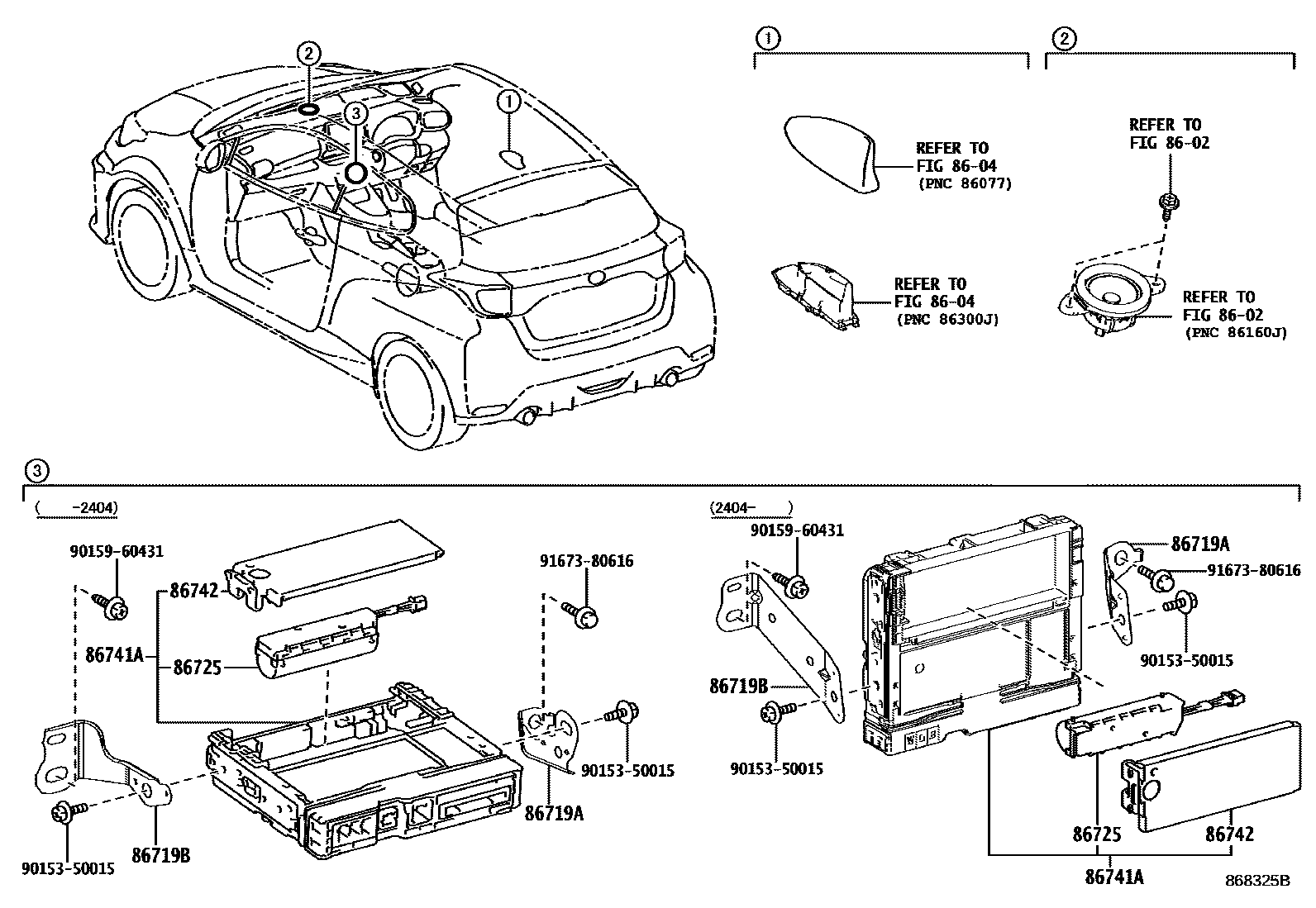

TELEPHONE & MAYDAY

8602SPEAKER

→ Go to FIG 86-02

8604ANTENNA

→ Go to FIG 86-04

86719ABRACKET, TELEPHONE NO.1

main86719-52140iGXPA16202404

main86719-K0010iGXPA16,MXPA12..(CVT,MTM)..(RS,RZ)202008

86719BBRACKET, TELEPHONE NO.2

main86719-52150iGXPA16202404

main86719-K0020iGXPA16,MXPA12..(CVT,MTM)..(RS,RZ)202008

86725BATTERY, MOBILEPHONE

main86725-26010iGXPA16,MXPA12..(CVT,MTM)..(RS,RZ)202008

main86725-78020iGXPA16202404

86741ATRANSCEIVER, TELEMATICS

main86741-11041iGXPA16,MXPA12..RS,RZ202008-202105

main86741-11042iGXPA16..RZ202106-202404

main86741-42221iGXPA16202404

86742COVER, TRANSCEIVER

main86742-26010iGXPA16,MXPA12..(CVT,MTM)..(RS,RZ)202008

9015350015

main90153-50015

9015960431

main90159-60431

9167380616

main91673-80616

10 parts on this diagram · 1 diagram in section
