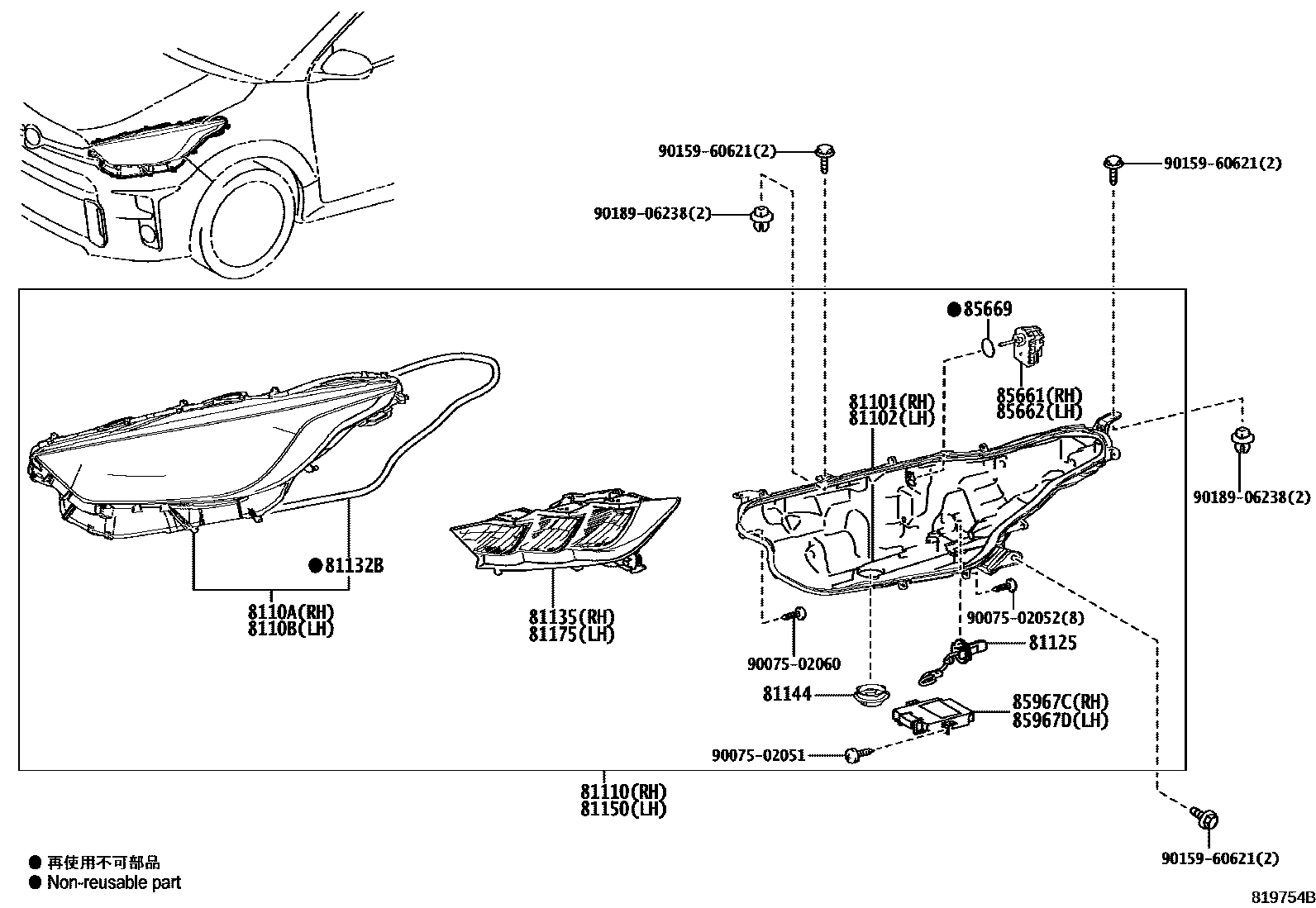

HEADLAMP

0001 1LED �������� 0002 1����� ��������

81101HOUSING SUB-ASSY, HEADLAMP, RH

main8111B-K0010iGXPA16..RC202404

main8111B-K0030iGXPA16..RZ202404

81102HOUSING SUB-ASSY, HEADLAMP, LH

main8115B-K0010iGXPA16..RC202404

main8115B-K0030iGXPA16,MXPA12..CVT,MTM202008

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-K0010iGXPA16..RC202404

main8110A-K0030iGXPA16,MXPA12..CVT,MTM202008

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-K0010iGXPA16..RC202404

main8110B-K0030iGXPA16,MXPA12..CVT,MTM202008

81110HEADLAMP ASSY, RH

main81110-K0030iGXPA16,MXPA12202008-202312

main81110-K0031iGXPA16,MXPA12..CVT,MTM202401

main81130-K0010iGXPA16..RC202404

81125CORD, HEADLAMP

main81125-K0010×2iGXPA16..RC202404

main81125-K0030×2iGXPA16..RZ202404

81132BGASKET, HEADLAMP LENS

main81132-50590×2iGXPA16,MXPA12..CVT,MTM202008

81135UNIT ASSY, HEADLAMP, RH

main81130-K0030iGXPA16,MXPA12..CVT,MTM202008

81144COVER, HEADLAMP, NO.1

main90075-66016×2iGXPA16,MXPA12..CVT,MTM202008

81150HEADLAMP ASSY, LH

main81150-K0030iGXPA16,MXPA12202008-202312

main81150-K0031iGXPA16,MXPA12..CVT,MTM202401

main81170-K0010iGXPA16..RC202404

81175UNIT ASSY, HEADLAMP, LH

main81170-K0030iGXPA16,MXPA12..CVT,MTM202008

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iGXPA16,MXPA12..CVT,MTM202008

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iGXPA16,MXPA12..CVT,MTM202008

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iGXPA16,MXPA12..CVT,MTM202008

85967CCOMPUTER, LIGHT CONTROL LED, RH

main8596A-K0040iGXPA16,MXPA12202008-202401

main8596A-K0041iGXPA16,MXPA12..CVT,MTM202401

85967DCOMPUTER, LIGHT CONTROL LED, LH

main8596A-K0030iGXPA16,MXPA12202008-202401

main8596A-K0031iGXPA16,MXPA12..CVT,MTM202401

9007502051

main90075-02051

9007502052

main90075-02052

9007502060

main90075-02060

9015960621

main90159-60621

9018906238

main90189-06238

21 parts on this diagram · 2 diagrams in section
