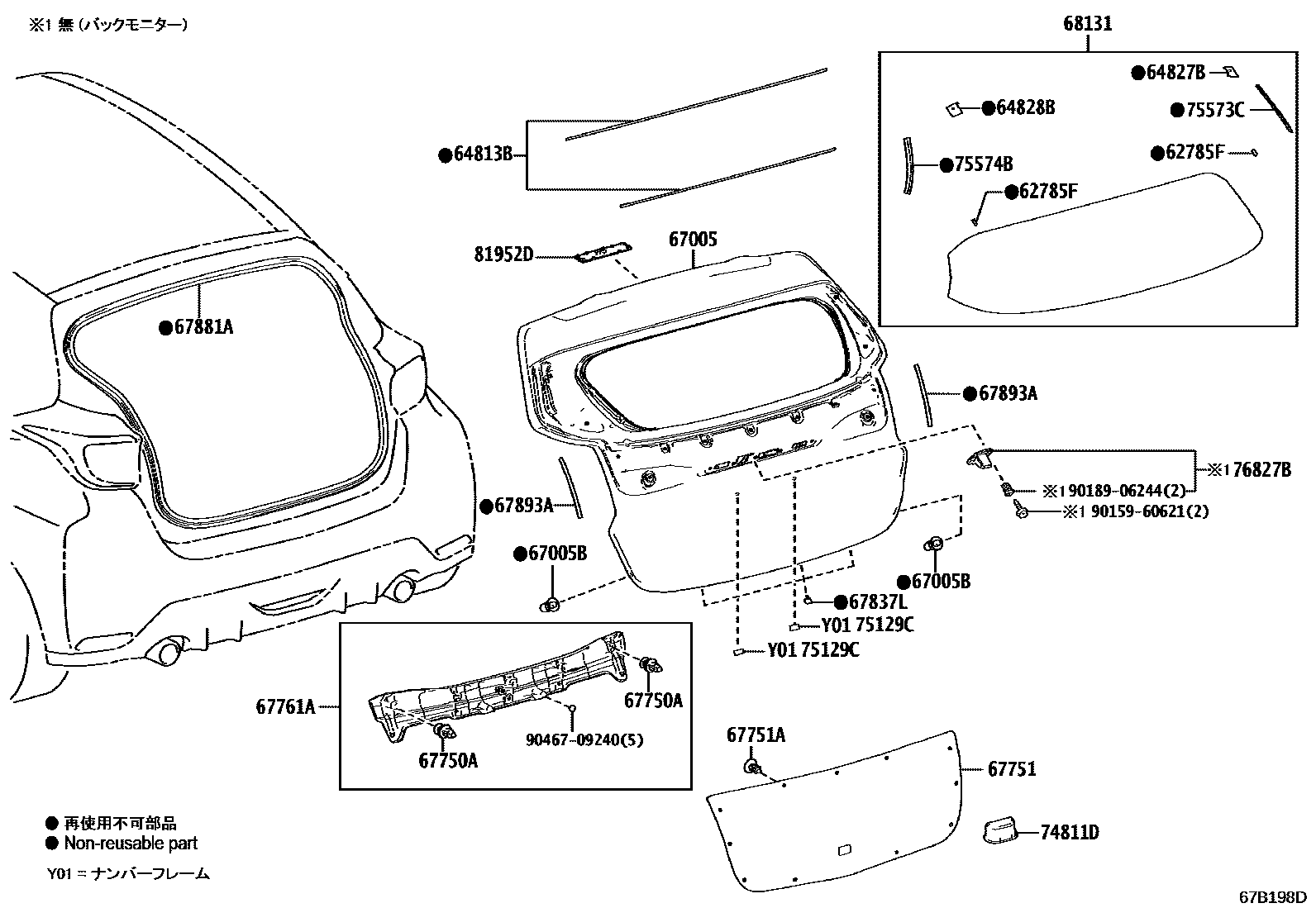

BACK DOOR PANEL & GLASS

62785FSPACER, BACK DOOR GLASS

main62785-12050×2iGXPA16202404

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iGXPA16202008-202404

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52110iGXPA16202404

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52110iGXPA16202008-202404

67005PANEL SUB-ASSY, BACK DOOR

main67005-52G30iMXPA12202008

main67005-52K20iGXPA16202404

main67005-52K10iGXPA16..RC202212-202404

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142×2iGXPA16202008-202404

67750ACLIP(FOR BACK DOOR TRIM)

main62217-13010×2iGXPA16202008-202404

67751BOARD, BACK DOOR TRIM

main67751-52230-B0iGXPA16202008-202404

DARK GRAY,TRIM2#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08186-C3×11iGXPA16..RC; GXPA16..RZ202404

BLACK,TRIM2#; BLACK,TRIM2#,3#

67761ACOVER, BACK DOOR TRIM

main67761-52050-C0iGXPA16202008-202404

BLACK,TRIM2#

67837LSEAL, DOOR DUST PROOF

main67837-52040×3iGXPA16202008-202404

67881AWEATHERSTRIP, BACK DOOR

main67881-52250iGXPA16202008-202404

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-52110×2iGXPA16202008-202404

68131GLASS, BACK DOOR

main68105-52780iGXPA16,MXPA12202008-202305

main68105-52781iGXPA16202306-202404

74811DHANDLE, DOOR PULL

main74811-13010-C2iGXPA16202008-202404

BLACK,TRIM2#

75129CCUSHION, REAR LICENCE PLATE

main75129-30010×2iGXPA16202008-202404

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-52260iGXPA16202008-202404

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-52110iGXPA16202008-202404

76827BRETAINER, BACK DOOR GARNISH, NO.2

main76827-K0010iGXPA16202008-202404

81952DCOVER, REAR LAMP

main81952-52030iGXPA16202404

9015960621

main90159-60621

9018906244

main90189-06244

9046709240

main90467-09240

23 parts on this diagram · 1 diagram in section
