DECK BOARD & DECK TRIM COVER

53650ABRACE ASSY, REAR SUSPENSION

53655BRACE, REAR SUSPENSION, UPPER CENTER

main53655-52010

53657BRACKET, REAR SUSPENSION BRACE, NO.1

main53657-52010

main53658-52010

58410BBOARD ASSY, DECK

main58410-52170-B0iGXPA16202008-202404

DARK GRAY,TRIM2#

main58410-52170-B0iGXPA16..RZ202404

DARK GRAY,TRIM2#,3#

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-52430iGXPA16..RZ202404

64716DCOVER, DECK TRIM, REAR

main64716-52220-C0iGXPA16202008-202404

BLACK,TRIM2#

main64716-52220-C0iGXPA16..RZ202404

BLACK,TRIM2#,3#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161iGXPA16202008-202404

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52700-B0iGXPA16202008-202404

DARK GRAY,TRIM2#

main64730-52700-B0iGXPA16..RZ202404

DARK GRAY,TRIM2#,3#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52780-B0iGXPA16202008-202404

DARK GRAY,TRIM2#

main64740-52780-B0iGXPA16..RZ202404

DARK GRAY,TRIM2#,3#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-08186-C3iGXPA16202008-202404

BLACK,TRIM2#

main90467-08186-C3iGXPA16..RZ202404

BLACK,TRIM2#,3#

64777JCUSHION, SPARE WHEEL

main64777-52110iMXPA12202009

64995BOX, DECK FLOOR, RH

main64995-52120iGXPA16202008-202404

64997BOX, DECK FLOOR, LH

main64997-52150iGXPA16202008-202404

9010510361

main90105-10361

9011908A12

main90119-08A12

9155100820

main91551-00820

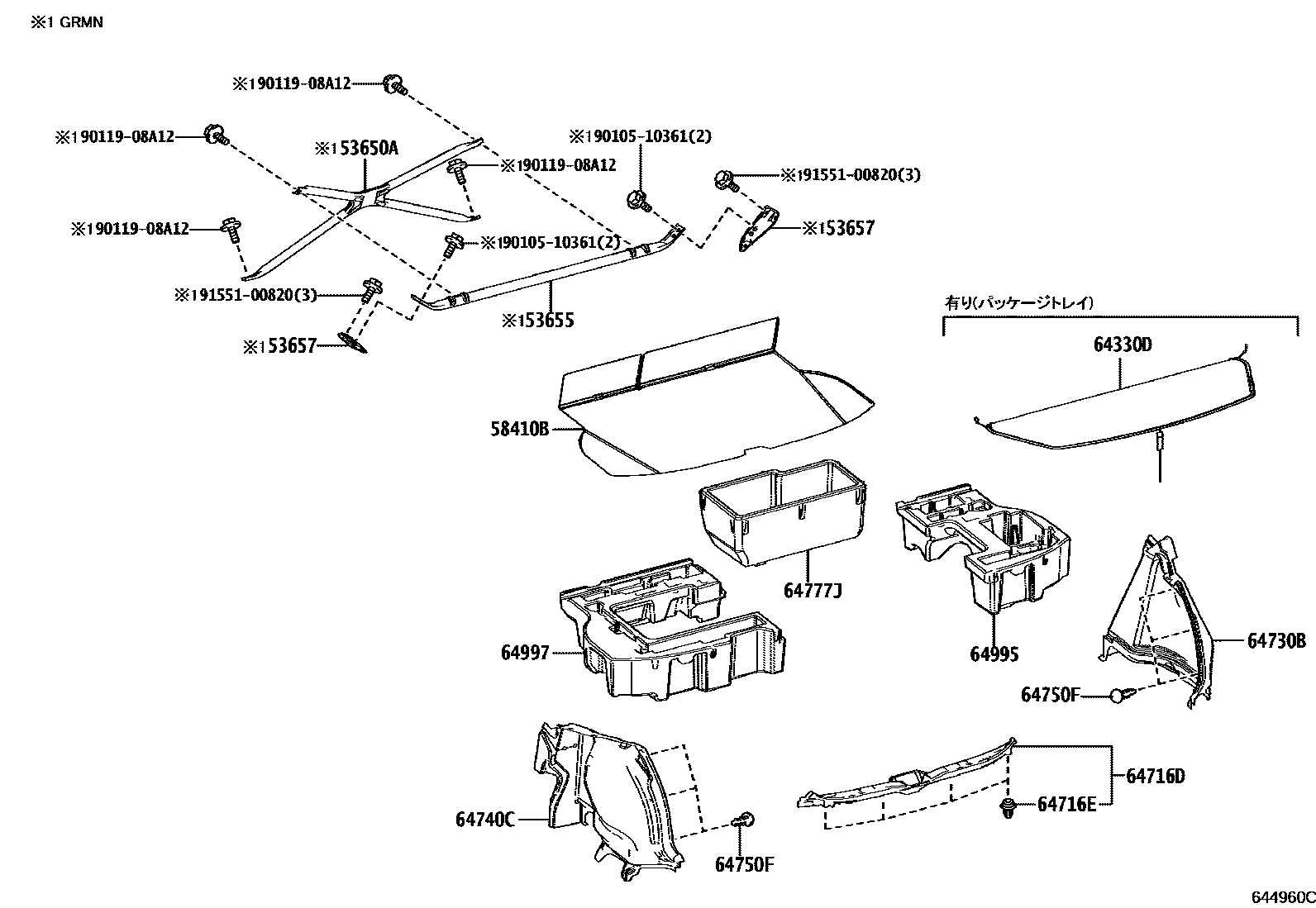

16 parts on this diagram · 1 diagram in section
