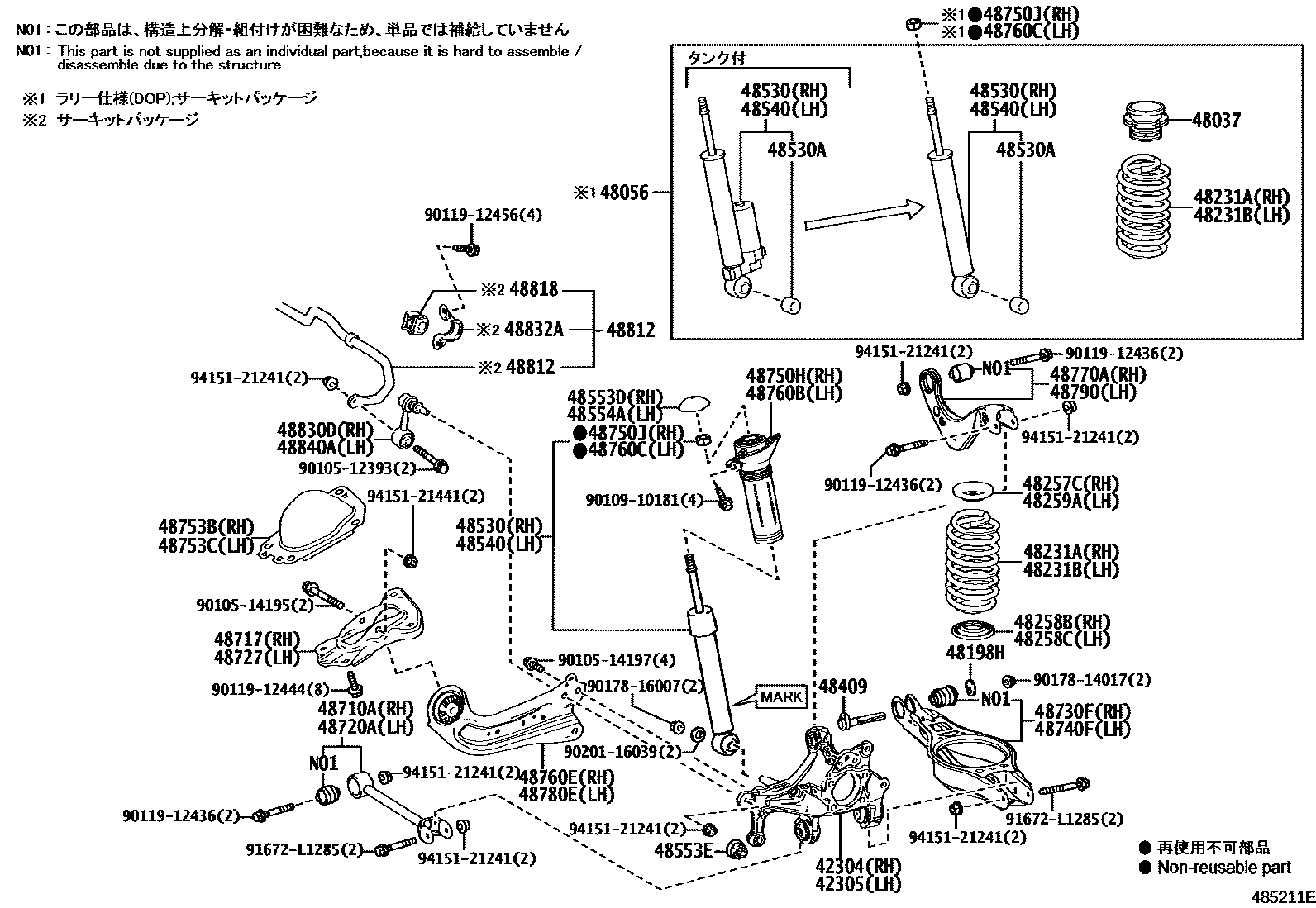

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1��(��������) 0003 1��(��������)

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42120-52010iGXPA16202008-202404

main42304-42060iMXPA12202009

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42220-52010iGXPA16202008-202404

main42305-42060iMXPA12202009

48037SPACER SUB-ASSY, REAR SPRING

main48037-52010×2iGXPA16202008-202404

48056ABSORBER SET, REAR

main48056-52010iGXPA16202008-202404

48198HCAM, CAMBER ADJUST, NO.2

main48198-47010×2iGXPA16202008-202404

48231ASPRING, COIL, REAR RH

main48231-52M20iMXPA12202009

main48231-52M00iGXPA16..RC; GXPA16..RZ202008-202404

main48231-52P10iGXPA16..RC202008-202404

main48231-52P20iGXPA16202008-202404

main48231-52P81supersedes 48231-52P10iGXPA16..RC202212-202404

main48231-52P90supersedes 48231-52M00iGXPA16..RZ202107-202404

main48231-52Q60supersedes 48231-52P10iGXPA16..RC; GXPA16..RZ202404

main48231-52Q70supersedes 48231-52Q60iGXPA16..RZ202404

48231BSPRING, COIL, REAR LH

main48231-52M20iMXPA12202009

main48231-52M00supersedes 48231-52P10iGXPA16..RC; GXPA16..RZ202008-202404

main48231-52P10iGXPA16..RC202008-202404

main48231-52P20iGXPA16202008-202404

main48231-52P81supersedes 48231-52P10iGXPA16..RC202212-202404

main48231-52P90supersedes 48231-52M00iGXPA16..RZ202107-202404

main48231-52Q60supersedes 48231-52P10iGXPA16..RC; GXPA16..RZ202404

main48231-52Q70supersedes 48231-52Q60iGXPA16..RZ202404

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-47020iGXPA16202404

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-47010iGXPA16202404

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-47010iGXPA16202404

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-47020iGXPA16,MXPA12..CVT,MTM202008

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011×2iMXPA12202008

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80A59iMXPA12202009

main48530-80B84iGXPA16202404-202505

main48530-52S40supersedes 48530-80A57iGXPA16202008-202404

main48530-80A57iGXPA16; GXPA16..RC; GXPA16..RZ202008-202404

main48530-80A58iGXPA16..RZ202008-202404

main48530-80B02iGXPA16..RZ202107-202404

main48530-80B16iGXPA16..RC202212-202404

main48530-80B85iGXPA16..RZ202404-202505

48530ABUSH(FOR REAR SHOCK ABSORBER)

main48537-47020×2iGXPA16202008-202404

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80A59iMXPA12202009

main48530-80B84iGXPA16202404-202505

main48530-52S40supersedes 48530-80A57iGXPA16202008-202404

main48530-80A57iGXPA16; GXPA16..RC; GXPA16..RZ202008-202404

main48530-80A58iGXPA16..RZ202008-202404

main48530-80B02iGXPA16..RZ202107-202404

main48530-80B16iGXPA16..RC202212-202404

main48530-80B85iGXPA16..RZ202404-202505

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-47010iGXPA16,MXPA12..CVT,MTM202008

48553ECAP

main48553-52030×2iGXPA16202404

main48553-52040×2iGXPA16202011-202404

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-47010iGXPA16,MXPA12..CVT,MTM202008

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-47010iMXPA12202009

main48710-52090iGXPA16202404

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-10010iGXPA16202008-202404

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-47010iMXPA12202009

main48710-52090iGXPA16202404

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-10010iMXPA12202008

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-33160iGXPA16202404

main48730-47010iMXPA12202009

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-33160iGXPA16202404

main48730-47010iMXPA12202009

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-33170iGXPA16,MXPA12..CVT,MTM202008

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94130-61200iGXPA16,MXPA12..CVT,MTM202008

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-10010iGXPA16202404

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-10020iGXPA16202404

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-33170iGXPA16,MXPA12..CVT,MTM202008

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94130-61200iGXPA16,MXPA12..CVT,MTM202008

48760EARM ASSY, TRAILING, REAR RH

main48760-47010iMXPA12202009

main48760-76010iGXPA16202008-202404

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-47010iMXPA12202009

main48770-52010iGXPA16202404

48780EARM ASSY, TRAILING, REAR LH

main48780-47010iMXPA12202009

main48780-76010iGXPA16202008-202404

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-47010iMXPA12202009

main48790-52020iGXPA16202404

48812BAR, STABILIZER, REAR

main48805-12110iMXPA12202009

main48805-52070iGXPA16202404

main48812-52160iGXPA16..RC202212-202404

48818BUSH, STABILIZER, REAR

main48818-10022×2iGXPA16..RC202212-202404

48830DLINK ASSY, REAR STABILIZER, RH

main48830-47010iGXPA16,MXPA12..CVT,MTM202008

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-10010×2iGXPA16..RC202212-202404

48840ALINK ASSY, REAR STABILIZER, LH

main48830-47010iGXPA16,MXPA12..CVT,MTM202008

9010512393

main90105-12393

9010514195

main90105-14195

9010514197

main90105-14197

9010910181

main90109-10181

9011912436

main90119-12436

9011912444

main90119-12444

9011912456

main90119-12456

9017814017

main90178-14017

9017816007

main90178-16007

9020116039

main90201-16039

91672L1285

main91672-L1285

9415121241

main94151-21241

9415121441

main94151-21441

52 parts on this diagram · 3 diagrams in section
