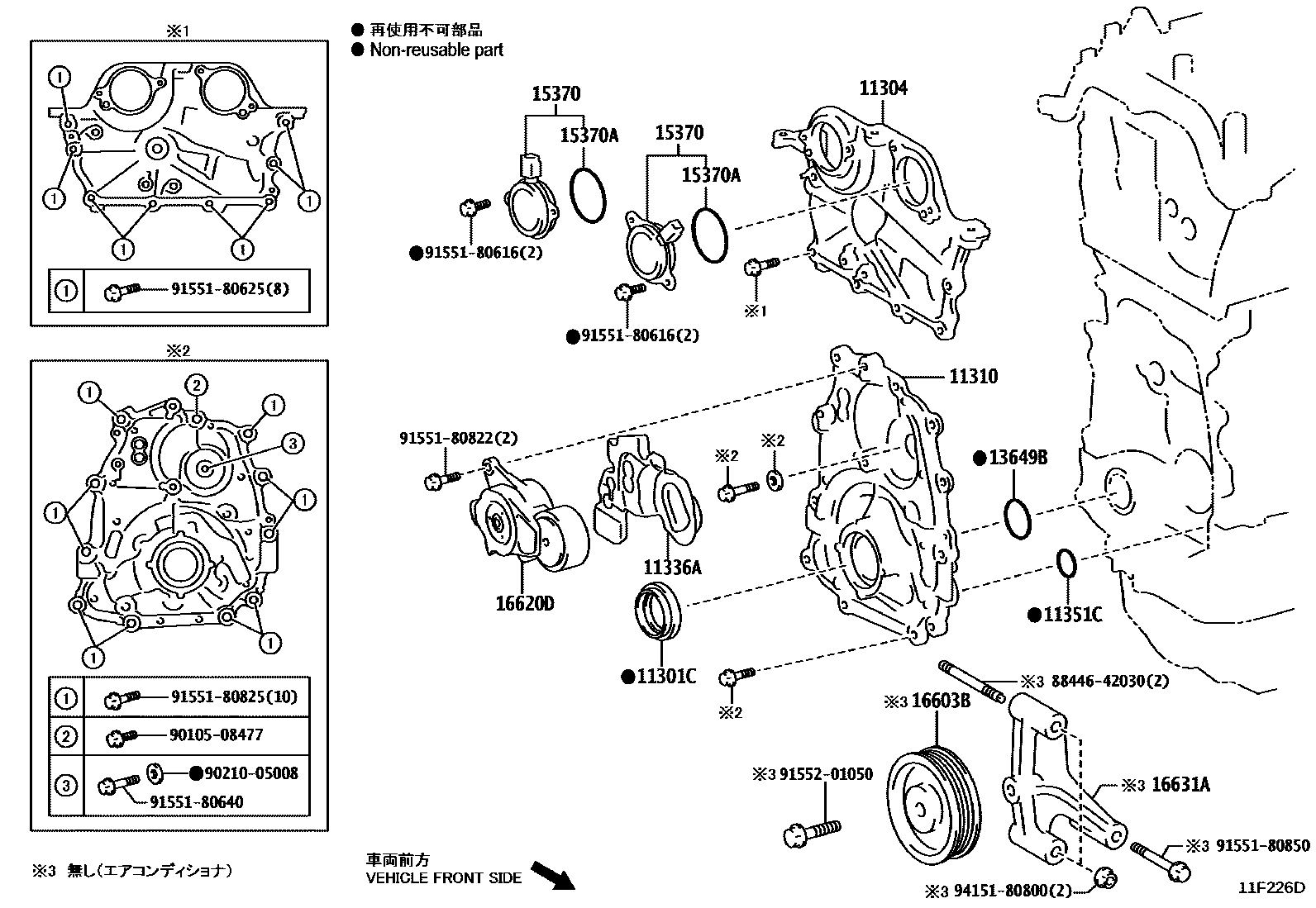

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40044iM15AFKS..MXPA12202009

11304COVER, TIMING CHAIN OR BELT, NO.2

main11322-18010iG16EGTS..GXPA16202008-202404

11310COVER ASSY, TIMING CHAIN

main11310-15010iM15AFKS..MXPA12202009

main11310-18020iG16EGTS..GXPA16202404

11336AINSULATOR, TIMING GEAR COVER

main11336-18010iG16EGTS..GXPA16202008-202404

11351CRING, O

main90301-20012iG16EGTS..GXPA16202008-202404

13649BRING, O

main96723-35028iG16EGTS..GXPA16202008-202404

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020iM15AFKS..MXPA12202009

main15370-36010iM15AFKS..MXPA12202009

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006×2iG16EGTS..GXPA16202404

main90301-50003iM15AFKS..MXPA12202009

16603BPULLEY SUB-ASSY, IDLER

main16603-18010iG16EGTS..GXPA16..RC202008-202009

main16603-18011iG16EGTS..GXPA16..RC202404

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-18010iG16EGTS..GXPA16202404

main16620-24020iM15AFKS..MXPA12202009-202105

main16620-24021iM15AFKS..MXPA12202106

16631ABRACKET, IDLER PULLEY

main16631-18010iG16EGTS..GXPA16..RC202008-202404

8844642030BOLT, IDLE PULLEY

main88446-42030

9010508477

main90105-08477

9021005008

main90210-05008

9155180616

main91551-80616

9155180625

main91551-80625

9155180640

main91551-80640

9155180822

main91551-80822

9155180825

main91551-80825

9155180850

main91551-80850

9155201050

main91552-01050

9415180800

main94151-80800

22 parts on this diagram · 2 diagrams in section
