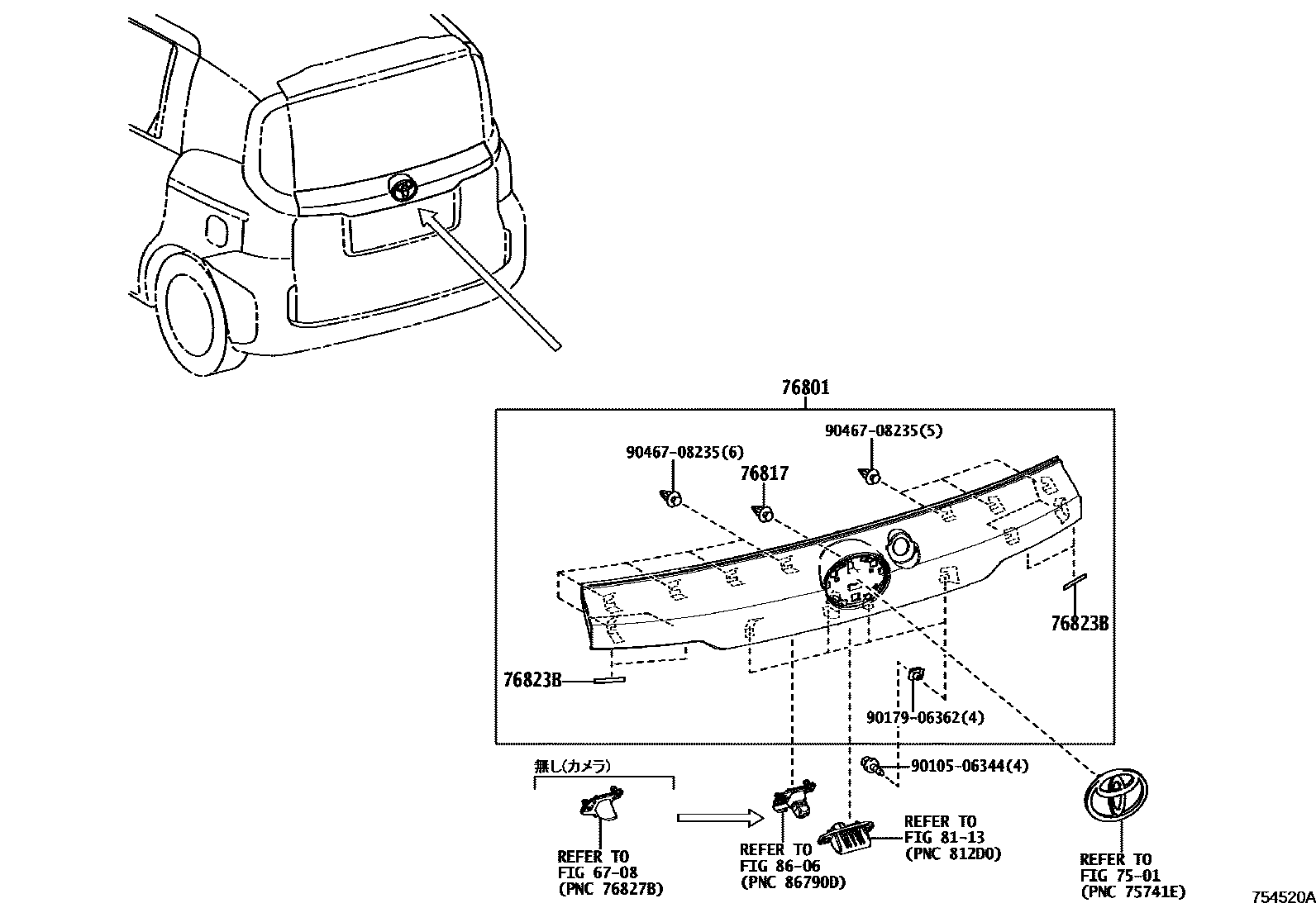

REAR MOULDING

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-52570iMXPC1#,MXPL1#202207

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206iMXPC1#,MXPL1#202207

76823BPROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE

main76824-42030iMXPC1#,MXPL1#202207

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9010506344

main90105-06344

9017906362

main90179-06362

9046708235

main90467-08235

10 parts on this diagram · 1 diagram in section
