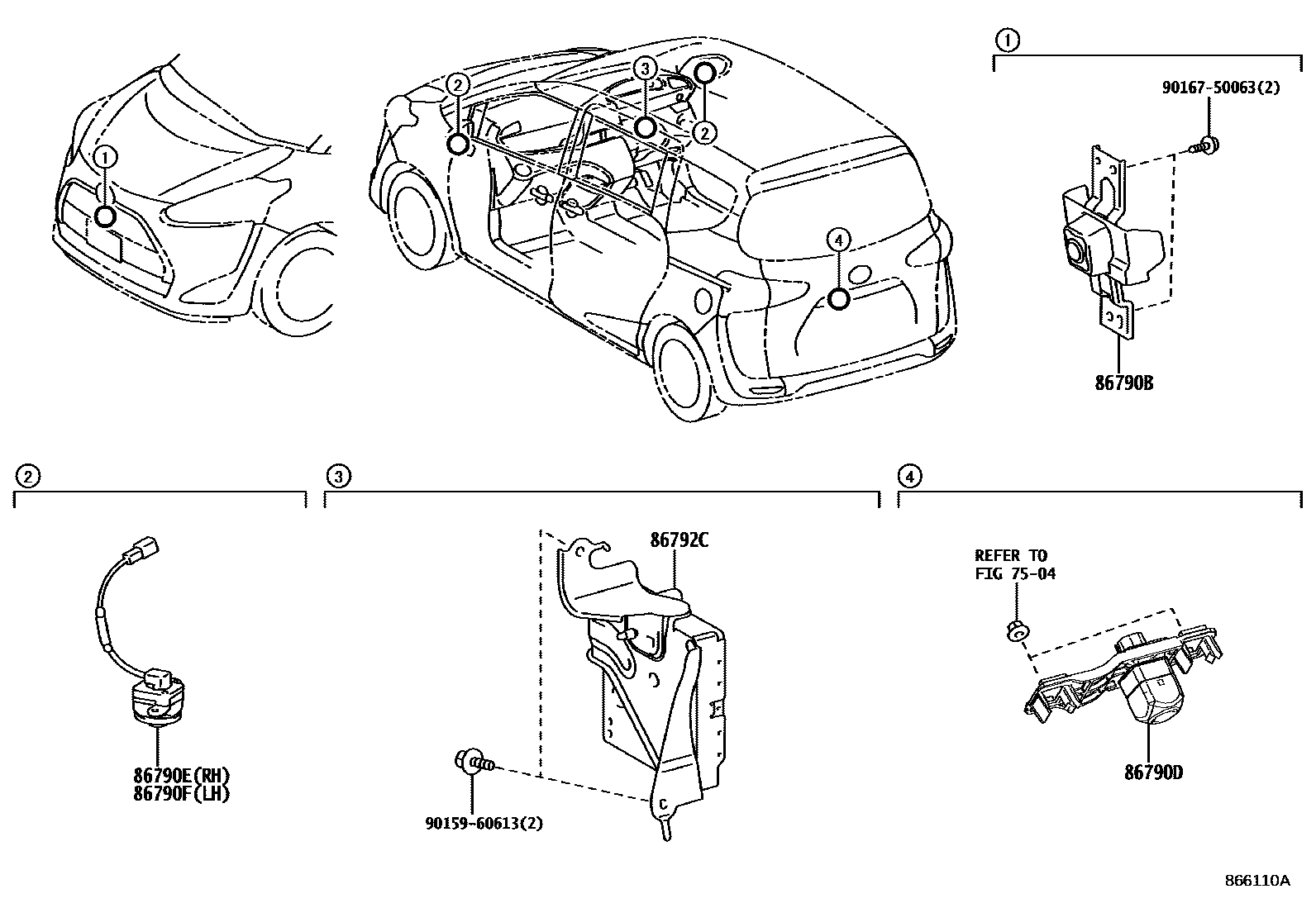

CAMERA & REAR MONITOR DISPLAY

7504REAR MOULDING

→ Go to FIG 75-04

86790BCAMERA ASSY, TELEVISION, FR

main86790-52250iNCP175,NHP170,NSP17#..FNBSX,WKX,X201809-202106

86790DCAMERA ASSY, TELEVISION, RR

main86790-52190iNCP175,NHP170,NSP17#201506-201809

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-52270iNCP175,NHP170,NSP17#..FNBSX,WKX,X201809-202106

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-52260iNCP175,NHP170,NSP17#..FNBSX,WKX,X201809-202106

86792CCOMPUTER, PARKING ASSIST

main86792-52050iNCP175,NHP170,NSP17#..FNBSG,G,GCERO,WKG; NCP175,NHP170,NSP170..FNBSX,X; NSP172..WKX201809-201905

main86792-52051iNCP175,NHP170,NSP170..FNBSX,X; NSP172..WKX201906-202106

9015960613

main90159-60613

9016750063

main90167-50063

8 parts on this diagram · 1 diagram in section
