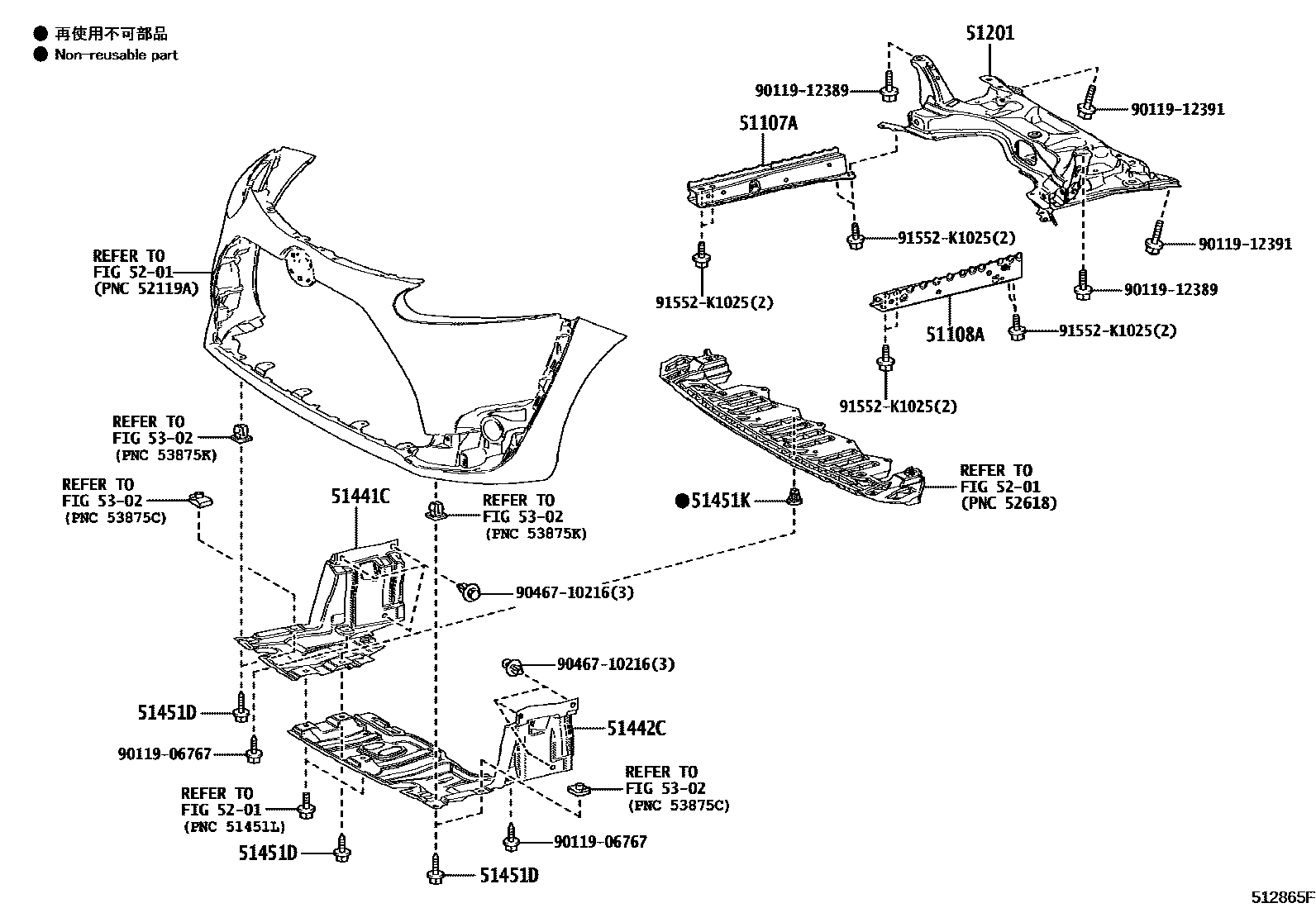

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-52010iNHP170,NSP17#201506-201809

main51107-52020iNCP175201506-201809

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-52010iNHP170,NSP17#201809-202207

main51108-52020iNCP175201506-201809

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52160iNHP170,NSP17#201506-201809

main51201-52170iNCP175201506-201809

51441CCOVER, ENGINE UNDER, RH

main51441-52290iNHP170,NSP17#201506-201809

main51441-52340iNCP175201506-201809

51442CCOVER, ENGINE UNDER, LH

main51442-52170iNHP170,NSP17#201809-202207

main51442-52180iNCP175201506-201809

51451DSCREW, NO.1

main90159-60431×5iNCP175,NHP170,NSP17#201506-201809

51451KGROMMET, SCREW, NO.1

main90189-06230iNCP175,NHP170,NSP17#201506-201708

main90189-06236×3iNCP175,NHP170,NSP17#201809-202207

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011906767

main90119-06767

9011912389

main90119-12389

9011912391

main90119-12391

9046710216

main90467-10216

91552K1025

main91552-K1025

14 parts on this diagram · 2 diagrams in section
