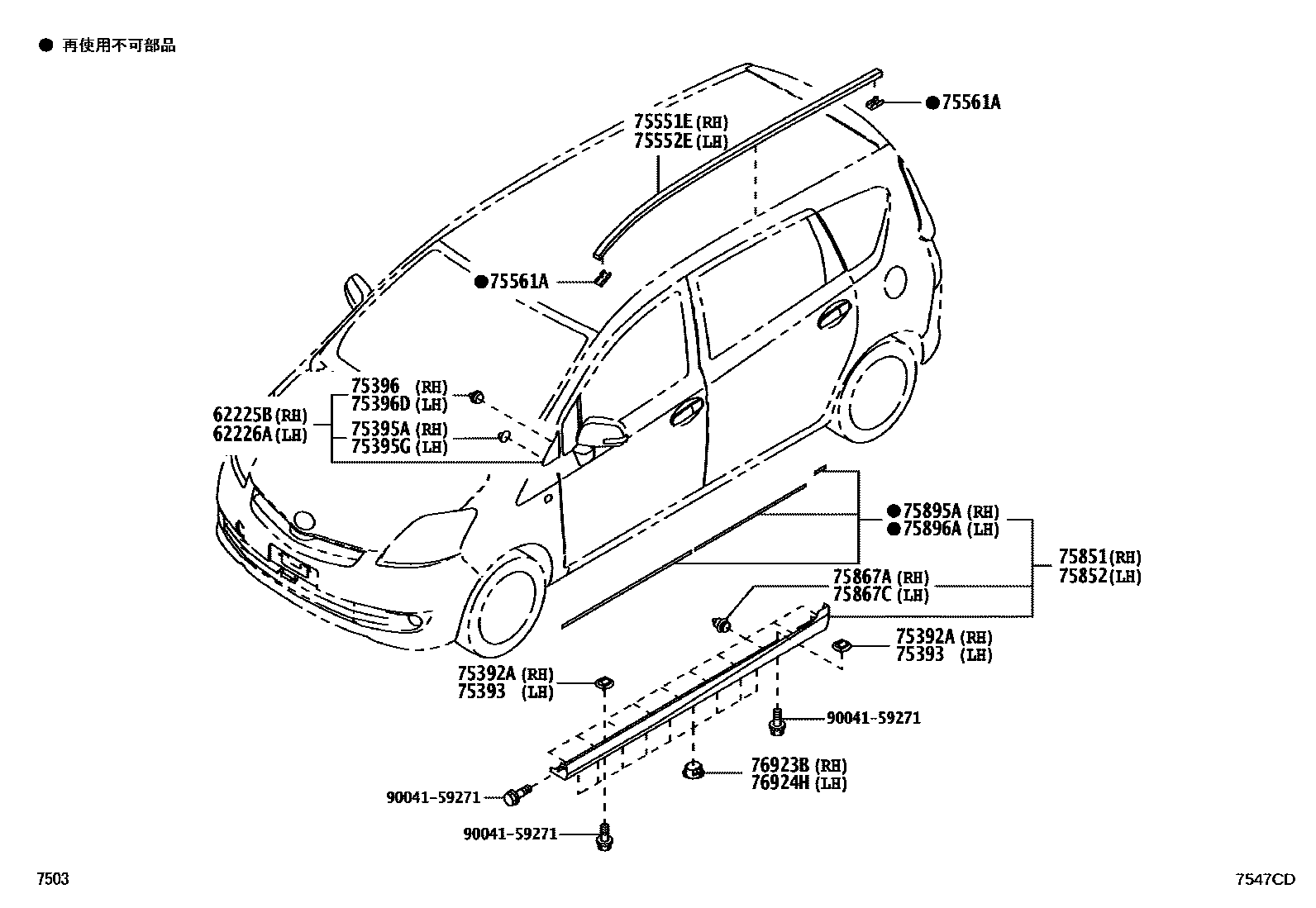

SIDE MOULDING
62225BGARNISH, FRONT PILLAR, LOWER RH
62226AGARNISH, FRONT PILLAR, LOWER LH
75392ARETAINER, OUTSIDE MOULDING, NO.1
75393RETAINER, OUTSIDE MOULDING, NO.2
75395ACLIP, OUTSIDE MOULDING, NO.1
75395GCLIP, OUTSIDE MOULDING, NO.1
75396CLIP, OUTSIDE MOULDING, NO.2
75396DCLIP, OUTSIDE MOULDING, NO.2
75551EMOULDING, ROOF DRIP SIDE FINISH, RH
75552EMOULDING, ROOF DRIP SIDE FINISH, LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75851MOULDING, ROCKER PANEL, RH
WHITE PEARL CS.,064
SILVER M.M.,1E7
BLACK MC.,209
ORANGE ME.,R44
MAROON MC.,R56
SUPER RED 5,3P0
BEIGE ME.,4T8
YELLOW ME.,Y08
AQUA M.M.,774
75852MOULDING, ROCKER PANEL, LH
WHITE PEARL CS.,064
SILVER M.M.,1E7
BLACK MC.,209
ORANGE ME.,R44
MAROON MC.,R56
SUPER RED 5,3P0
BEIGE ME.,4T8
YELLOW ME.,Y08
AQUA M.M.,774
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
75895ATAPE, MOULDING, NO.1
75896ATAPE, MOULDING, NO.2
76923BRETAINER, SIDE MUDGUARD
76924HRETAINER, SIDE MUDGUARD, NO.2
9004159271
main90041-59271
20 parts on this diagram · 1 diagram in section
