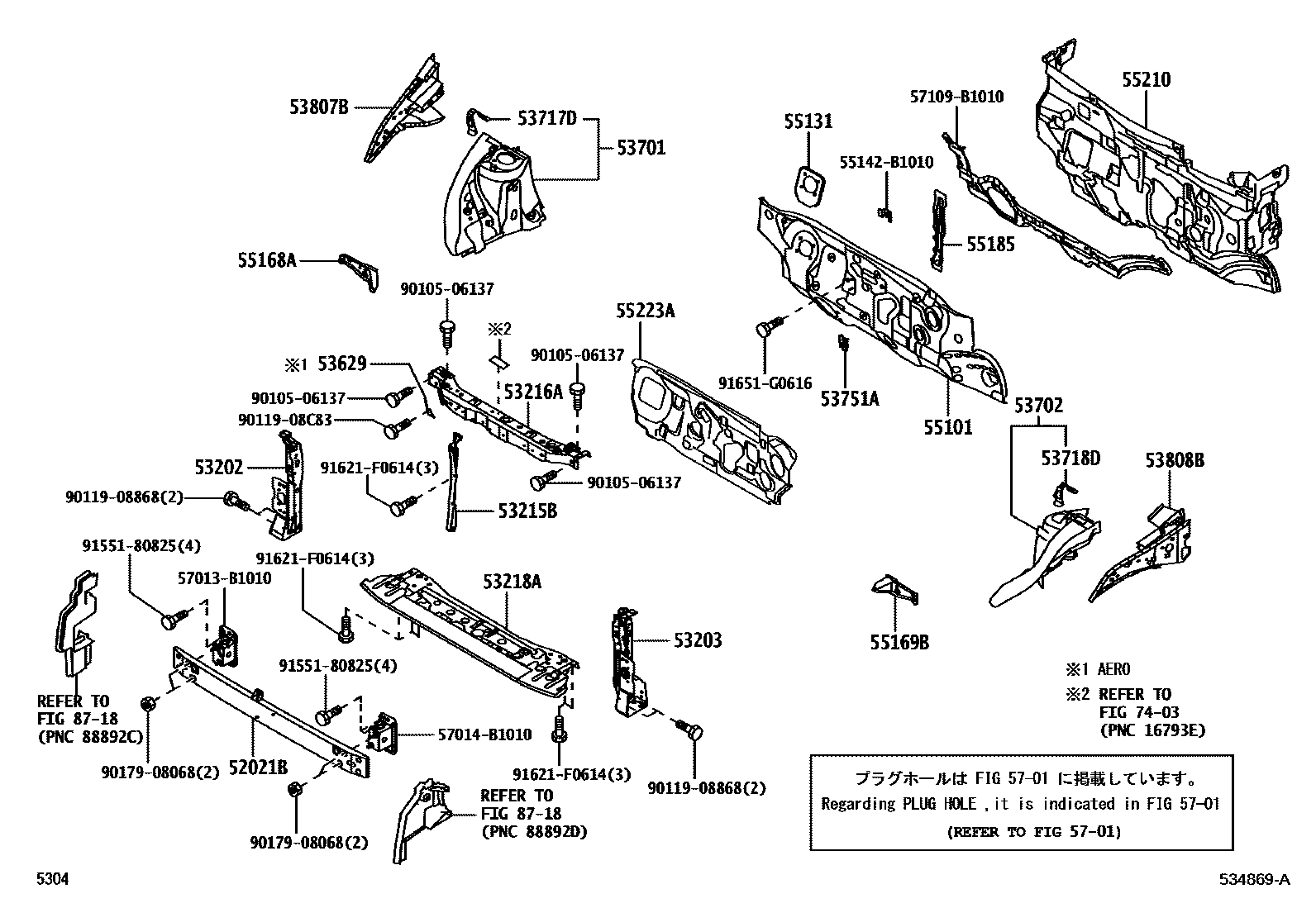

FRONT FENDER APRON & DASH PANEL
52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53215BSUPPORT, HOOD LOCK
53216ASUPPORT, RADIATOR, UPPER
53218ASUPPORT, RADIATOR, LOWER
53629COVER, HOOD LOCK CONTROL CABLE
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53751ABRACKET, CHARCOAL CANISTER MOUNTING
53807BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53808BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
55101PANEL SUB-ASSY, DASH
55131REINFORCEMENT, DASH PANEL
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55185BRACE, DASH PANEL TO COWL
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
5701HOLE PLUG
7403CAUTION PLATE (EXTERIOR & INTERIOR)
8718HEATING & AIR CONDITIONING - COOLER PIPING
55142B1010BRACKET,BLOWER MOTOR, LOWER
main55142-B1010
57013B1010BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
main57013-B1010
57014B1010MEMBER SUB-ASSY, FLOOR, FRONT LH
main57014-B1010
57109B1010REINFORCEMENT SUB-ASSY, DASH PANEL CROSSMEMBER
main57109-B1010
9010506137
main90105-06137
9011908868
main90119-08868
9011908C83
main90119-08C83
9017908068
main90179-08068
9155180825
main91551-80825
91621F0614
main91621-F0614
91651G0616
main91651-G0616
35 parts on this diagram · 1 diagram in section
