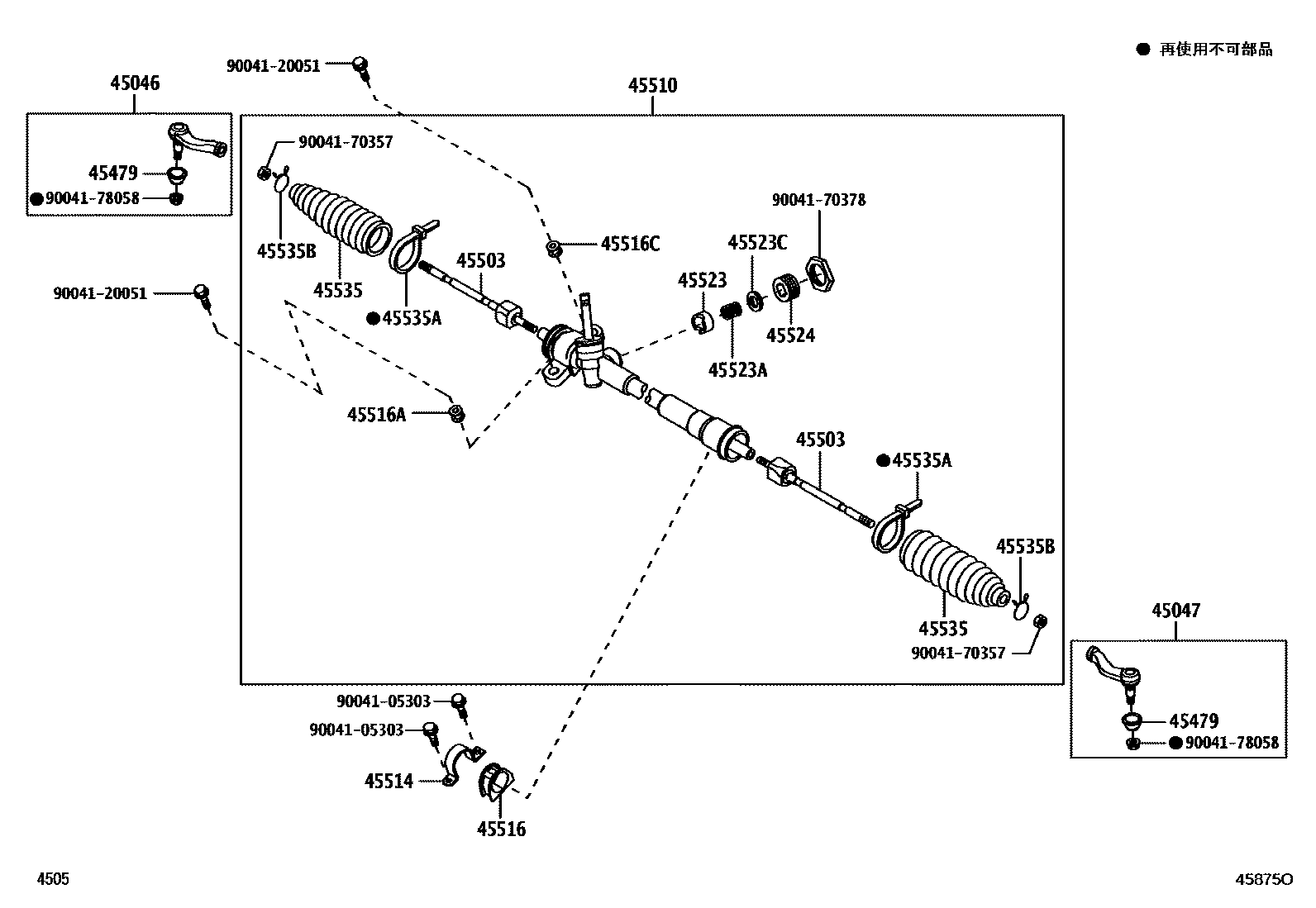

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-B9350iM502,512200812

45047END SUB-ASSY, TIE ROD, LH

main45047-B9290iM502,512200812

45479SEAL, STEERING LINK JOINT DUST

main45479-87508×2iM502,512200812

45503END SUB-ASSY, STEERING RACK

main45503-B1030×2iM502,512200812

45510GEAR ASSY, STEERING

main45502-B1110iM502,512200812

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-B2010iM502,512200812

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-B1030iM502,512200812

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-B2090iM502,512200812

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-B2100iM502,512200812

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-87403iM502,512200812

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90045-01429iM502,512200812

45523CSPACER(FOR RACK GUIDE)

main90042-08038iM502,512200812

45524CAP, STEERING RACK GUIDE SPRING

main45524-B1010iM502,512200812

45535BOOT, STEERING RACK, NO.1

main45535-B2010×2iM502,512200812

45535ACLAMP(FOR STEERING RACK BOOT)

main45536-87205×2iM502,512200812

45535BCLIP(FOR STEERING RACK BOOT)

main45537-97201×2iM502,512200812

9004105303

main90041-05303

9004120051

main90041-20051

9004170357

main90041-70357

9004170378

main90041-70378

9004178058

main90041-78058

21 parts on this diagram · 1 diagram in section
