STANDARD TOOL

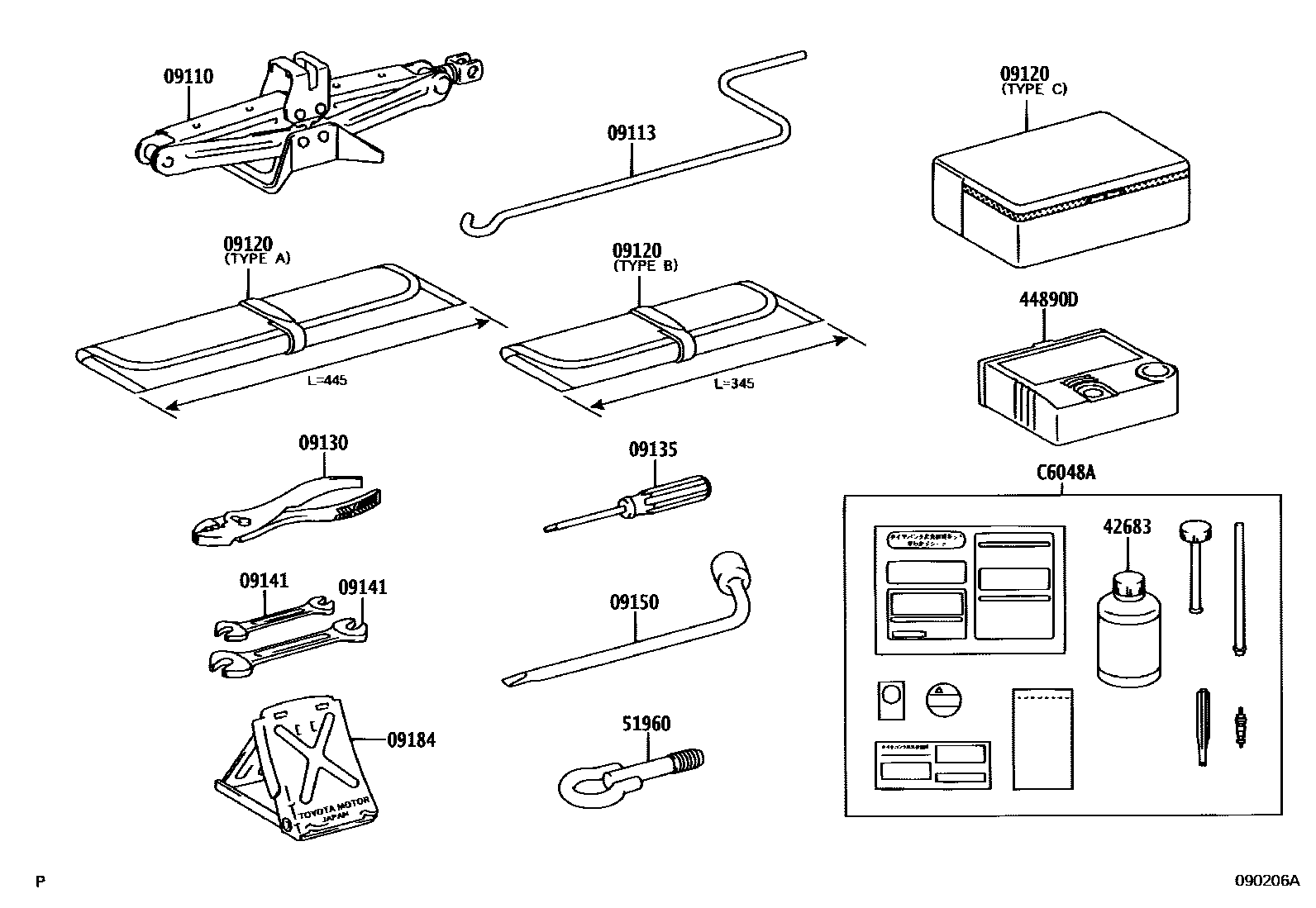

Parts diagram

09110JACK ASSY

main09111-47010i200402-201008

main09111-52041i200309-200401

main09111-52060i201106

09113HANDLE, JACK

main09113-20050i201110

main09113-52010i200309-201109

09120BAG, TOOL

main09120-52030i200605-201008

main09120-52030i200605-201008

main09120-52030i200309-201008

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09150WRENCH, HUB NUT BOX

main09150-40010i200309-201506

09184STOPPER, WHEEL

main09184-00010

42683SEAL, TIRE REPAIR

main42683-52010i200309-201008

44890DCOMPRESSOR ASSY, AIR

main44890-52010i200309-200605

main44890-52010i200605-201008

main44890-52010i200605-201008

main44890-74021i201106-201209

main44890-74022i201210

51960HOOK ASSY, FRONT

main51961-52070i200309-201506

C6048REPAIR SET, TIRE

mainC604874041i201106-201209

mainC604874042i201210-201405

mainC604874043i201406-201506

C6048ASEALANT, REPAIR TIRE

mainC604852010i200309-200605

mainC604852010i200605-201008

mainC604852010i200605-201008

13 parts on this diagram · 3 diagrams in section
