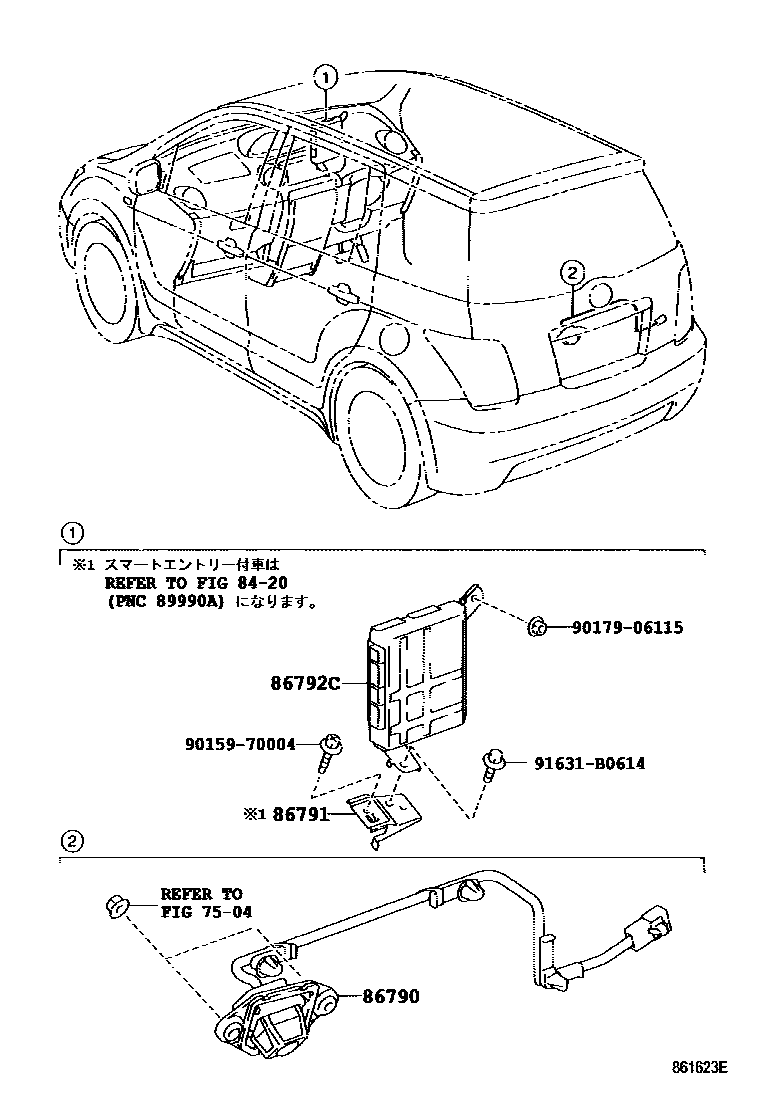

CAMERA & REAR MONITOR DISPLAY

7504REAR MOULDING

→ Go to FIG 75-04

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

86790CAMERA ASSY, TELEVISION

main86790-52050iNCP6#200204-200505

86791BRACKET, TELEVISION CAMERA

main86791-52020iNCP6#..F,S200204-200405

86792CCOMPUTER, PARKING ASSIST

main86792-52010iNCP6#200204-200405

main86792-52070iNCP6#; NCP61200405-200505

main86792-52071iNCP61,65..AEROS; NCP61,65..S; NCP61..AEROS; NCP61..S200605

9015970004

main90159-70004

9017906115

main90179-06115

91631B0614

main91631-B0614

8 parts on this diagram · 1 diagram in section
