SIDE MEMBER
52562DRETAINER, REAR BUMPER, UPPER SIDE, RH
52563CRETAINER, REAR BUMPER, UPPER SIDE, LH
5701HOLE PLUG
58745PROTECTOR, QUARTER PANEL, FRONT RH
58746PROTECTOR, QUARTER PANEL, FRONT LH
59198SEAL, NOISE SHUTTER
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61626FEXTENSION, QUARTER PANEL, UPPER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
61636EEXTENSION, QUARTER WHEEL HOUSE, LH
61637CBRACE, QUARTER WHEEL HOUSE, NO.2 RH
61638CBRACE, QUARTER WHEEL HOUSE, NO.2 LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH
61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH
61701CPANEL SUB-ASSY, ROOF SIDE, OUTER RH
61702CPANEL SUB-ASSY, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61738DREINFORCEMENT, ROOF SIDE, INNER LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1
61815BCOVER, ROOF SIDE, INNER UPPER RH
61816BCOVER, ROOF SIDE, INNER UPPER LH
61824PLATE, NOISE CONTROL, NO.1
62151BPAD, COWL SIDE SILENCER
62554BPAD, PILLAR, NO.4
75925BTAPE, BLACK OUT, NO.3 RH
75926BTAPE, BLACK OUT, NO.3 LH
91641C0614
main91641-C0614

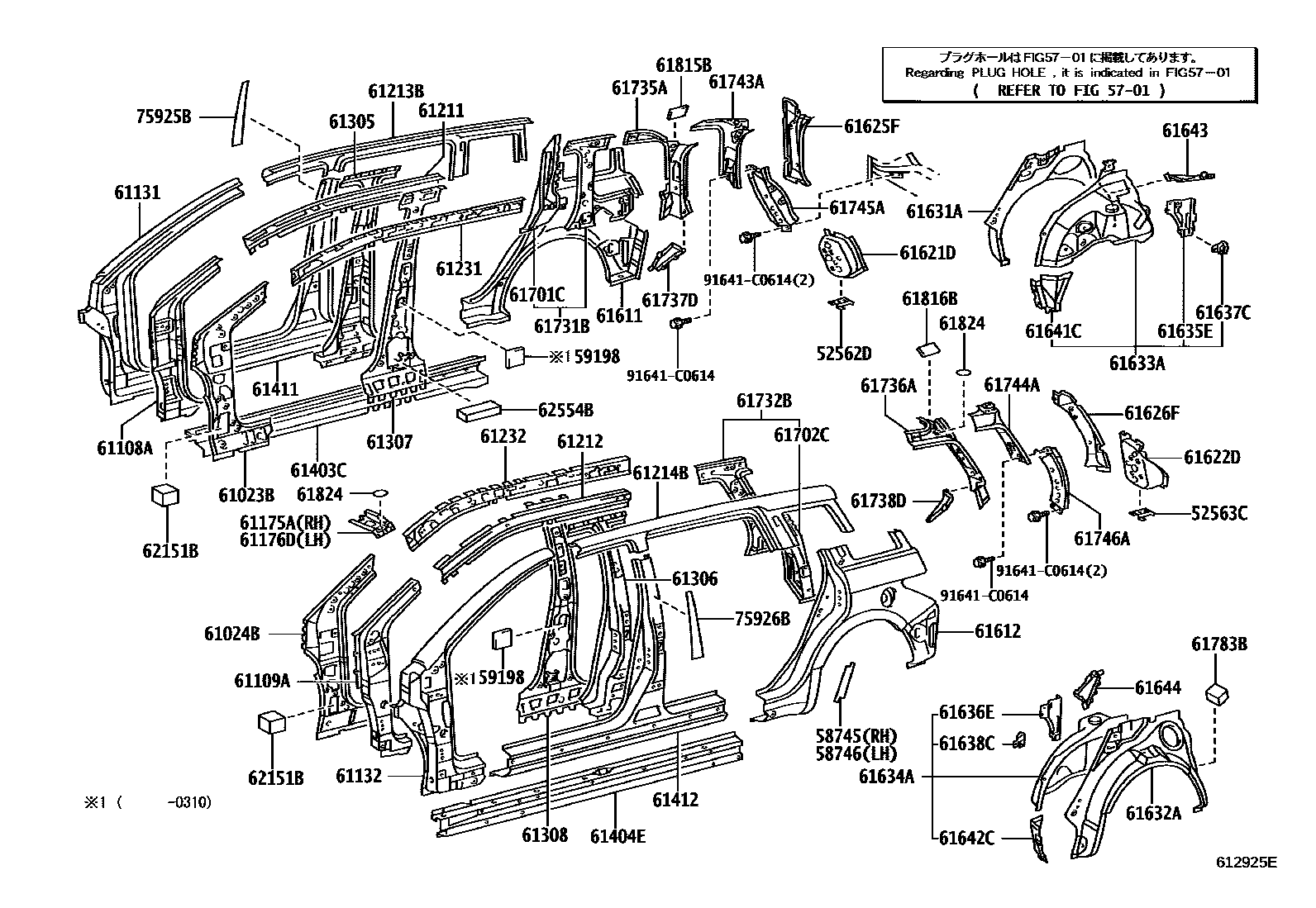

67 parts on this diagram · 1 diagram in section
