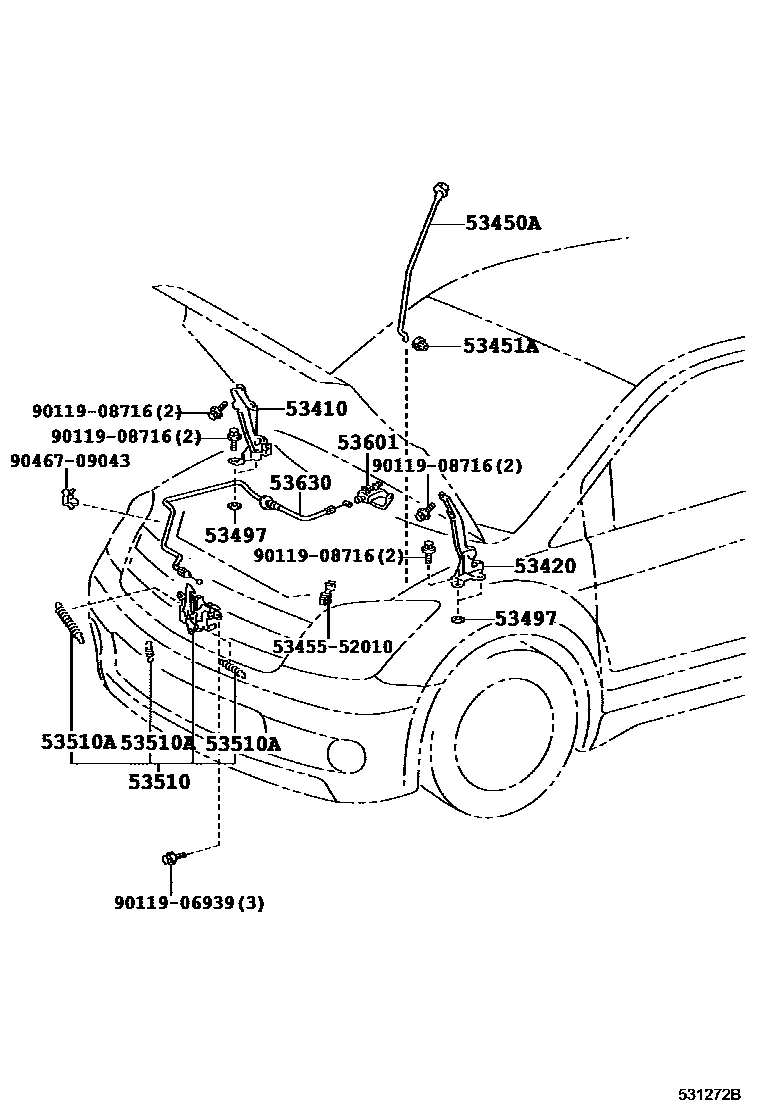

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52010iNCP6#200204-200505

53420HINGE ASSY, HOOD, LH

main53420-52010iNCP6#200204-200505

53450ASUPPORT ASSY, HOOD, LH

main53440-52020iNCP6#200204-200505

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iNCP6#200505

53497PAD, HOOD HINGE, NO.1

main53497-10020×4iNCP6#200204-200505

main53497-42010×4iNCP6#200204-200505

53510LOCK ASSY, HOOD

main53510-52100iNCP6#200204-200505

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP6#200505

main90506-12063iNCP6#200204-200505

main90506-18067iNCP6#200204-200505

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iNCP60,65..F; NCP61,65..S200204-200505

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,9#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52050iNCP6#200204-200505

main53630-52051iNCP6#200608

5345552010CLAMP, HOOD SUPPORT ROD

main53455-52010

9011906939

main90119-06939

9011908716

main90119-08716

9046709043

main90467-09043

13 parts on this diagram · 1 diagram in section
